Handyplasma 45I
- Light and portable, weighing only 13.5 kg (including torch)
- Easy to use 2.8 in. colour LCD panel, with all adjustments in just one knob
- Torch trigger 2T/4T function
- Torch trigger lock for greater safety
- Grate or plate cutting functions
- Comes with torch included
- Two-year guarantee for the power source and three months for the torch
Hand-held, light and portable power source for plasma cutting with a 220V 50/60 Hz single phase power supply.
Very simple to use, with a colour LCD panel and all adjustments in just one knob.
No need to adjust the gas –the machine automatically detects the inlet and outlet pressure. An automatic system purges gas after cutting, increasing the useful life of the consumables.

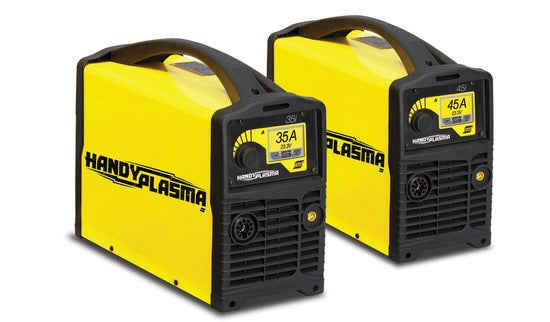

Available in two versions:
HandyPlasma 35i Recommended cutting capacity = 6mm Maximum cutting capacity = 12mm
HandyPlasma 45i Recommended cutting capacity = 10mm Maximum cutting capacity = 16mm
Specifications
| 35i | 45i | |
|---|---|---|
| Recommended Generator | 8 kVA | 9 kVA |
| Input Ratings | 220 VAC, 1 ph, 50/60 Hz | 220 VAC, 1 ph, 50/60 Hz |
| Duty Cycle | 35 A @ 35 % duty cycle | 45 A @ 35 % duty cycle |
| Gas Pressure | 7.3 bar | 7.3 bar |
| Gas Flow | 110 l/min | 110 l/min |
| Severs Manual | 35i in. 45i in. |
35i in. 45i in. |
| Pierces | 6 mm 10 mm |
6 mm 10 mm |
| Torch Air Pressure | 4.6 bar | 4.6 bar |
| Enclosure Class | IP21C | |
| Dimensions, L x W x H | 415 x 176 x 324 mm | 415 x 176 x 324 mm |
| Weight | 11.8 (13.5) kg | 11.8 (13.5) kg |
