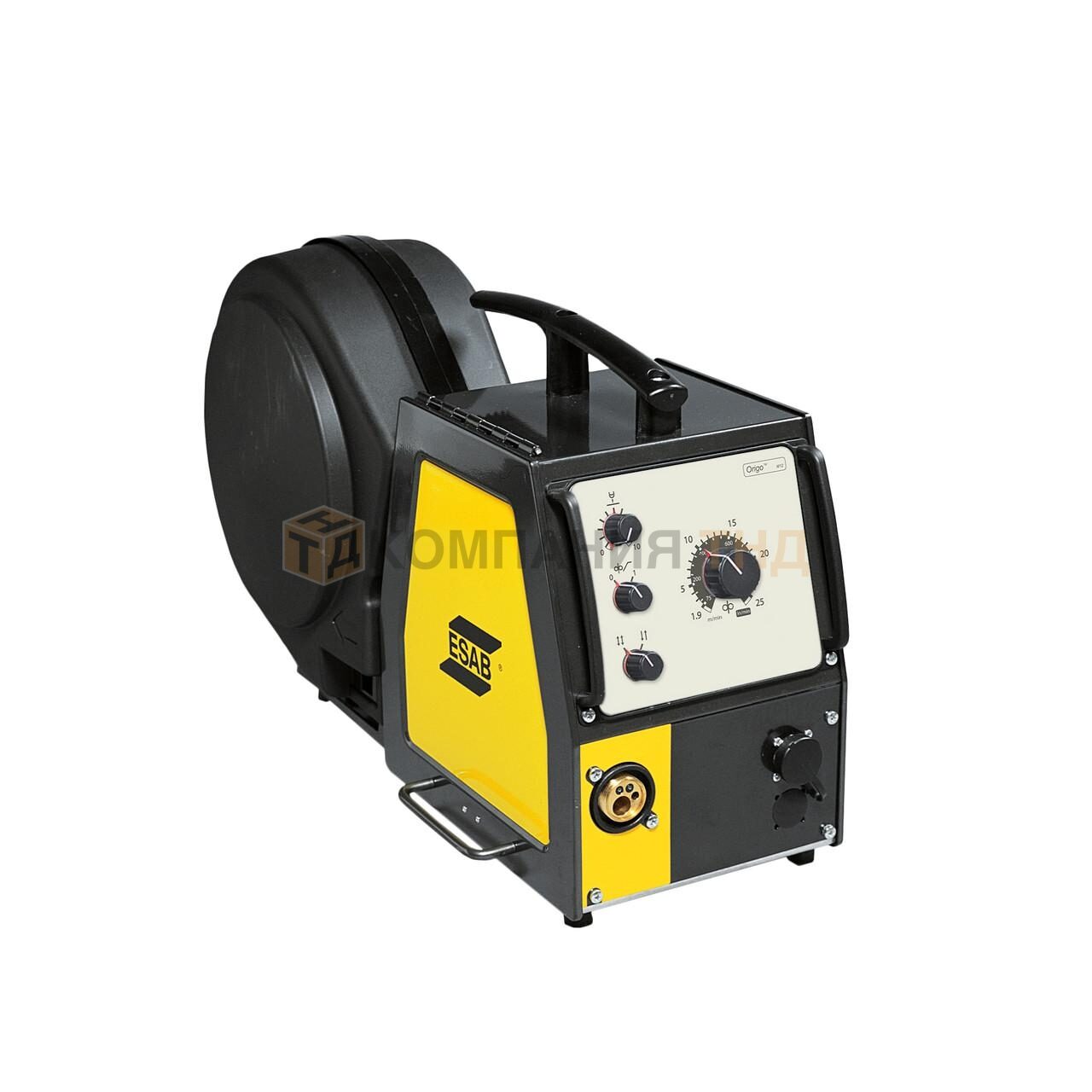

Origo Feed 304W M12 Encl
The robust galvanized metal housing allows the feed mechanism to be used in harsh conditions. Electronic control of the feed mechanism ensures stable burning of the welding arc. The four-roller feed mechanism with grooves on each roller ensures stable feeding and minimal stress on the welding wire.Feed 304w wire feeders are designed for professional use and meet the highest quality standards. The wire feeders are equipped with powerful drives with 4 slotted rollers. Pressure rollers are mounted on the balancer console to ensure uniform pressure on the rollers. The wire feeds very smoothly. The use of electronically controlled motors ensures a constant wire feed and, accordingly, a constant welding current. Precise maintenance of the specified wire feed speed is ensured.
ELP (ESAB LogicPump), the coolant pump is switched on automatically when a water-cooled welding torch is connected.
The Origo Feed 304 feeder is equipped with rollers with a diameter of 30 mm for wires with a diameter of up to 1.6 mm. Matching control panels provide versatility according to the selected welding power source.
- Suitable for Origo Mig 402c/502c and 652c, Origo Mig 320, 410 and 510.
- Adjustable wire annealing function (Adjustable annealing time allows you to set the desired wire extension at the end of welding.)
- 2-stroke/4-stroke torch mode makes the welder’s work easier
- Crater filling function
- Soft start function
- Possibility of stepless regulation of voltage and wire feed speed
- Digital Volt/Ammeter
- Quick-release connections make it possible to get to work as quickly as possible after assembling or transporting equipment. No special tool required
- ELP (ESAB LogicPump) - automatic intelligent cooling control system
- TrueArcVoltage System provides accurate arc voltage regardless of connection/return cable length or torch length
| Wire diameter used, mm | |
| Carbon steel | 0.6 - 1.6 |
| Stainless steel | 0.6 - 1.6 |
| Aluminum | 1.0 - 1.6 |
| Cored wire | 0.8 - 1.6 |
Control panel M12
- Control panel in wire feeder for MMA and MIG/MAG welding
Control panel M13
- Control panel in wire feeder for MMA and MIG/MAG welding
- TrueArcVoltage guarantees stable arc voltage
- 2/4 stroke burner controller
- Crater filling, wire annealing time
- Smooth start
