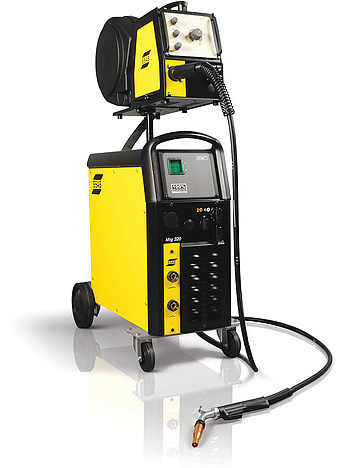

Origo Mig 410W V/A
ESAB Origo Mig 410w (liquid cooling) is a welding source with step current regulation, designed for MIG/MAG welding in severe operating conditions. They have 40 steps of voltage regulation and are equipped with either air or water cooling. ESAB Origo Mig 410 has two outputs of different inductance; ESAB Origo Mig 510 – three outputs of different inductance. ESAB Origo Mig 410/510 sources work with separate wire feeders: ESAB Origo Feed Airmatic; ESAB Origo Feed 302 M11, 304 M12 and 484 M12 and ESAB Origo YardFeed 200 (without ammeter/voltmeter).- 40 steps of current change
- Connecting cables up to 35 meters
- Electronically controlled motors for stable wire feed speed
- 2/4 roller feed units, wire diameter up to 2.4mm
- Cooling unit with ELP function (ESAB LogicPump) (automatic inclusion of water cooling)
- Automatic sleep mode to save energy
- Housing made of galvanized sheet steel
- Remote control of feed speed
- Extensive list of accessories
- IP 23 - can be used outdoors
| Power supply from AC mains, V/Hz | 400/50 |
| Fuse, A | 35 |
| Voltage positions | 40 |
| Inductive outputs | 2 |
| Max. current at duty cycle 50%, A/V | 400 |
| Max. current at duty cycle 100%, A/V | 280 |
| Open circuit voltage, V | 17-45 |
| Weight, kg (without cooling unit) | 144 |
| Weight, kg (with cooling unit) | 158 |
| Protection class | IP 23 |
| Application class | S |
Accessories (sold separate)
| Item Number | Description | UOM |
| 0459116892 | Origo Feed 304w M12 Encl | PCE |
| 0469836983 | Connection set 5m/w 400A | PCE |
| 0700025061 | PSF 420w 4m | PCE |
| 201054 | ESAB Cutskill Flowmeter Reg 30 LPM | PCE |
