FEATURES
• 2 SIP Lines - Supports dual line operation for efficient call handling
• HD Voice Quality - Wideband audio with G.722 and Opus codecs for clear communication
• 2.3-Inch Display - Clear dot-matrix screen for easy navigation and call management
• 6-Way Audio Conferencing - Enables small team collaboration directly from the phone
• Dual Gigabit Ports - High-speed network connectivity for modern office environments
• PoE Support - Single cable for power and data simplifies installation
• EHS Headset Support - Compatible with wireless headsets for added mobility
• Desktop Installation - Includes stand for quick and easy setup
• Optional Wall Mount - Wall bracket available separately for flexible deployment
SPECIFICATIONS
GENERIC
• SIP Lines: 2 Lines
• Audio: HD Voice (Handset and Speaker)
• Power: PoE Support (IEEE 802.3af)
• Display: 2.3-Inch Dot-Matrix Display
• Installation: Desktop Stand (Wall Mount Optional)
• Power Supply: External Adapter Optional
PHONE FUNCTIONS
• Phonebook: Up to 1000 Entries
• Call Logs: Up to 600 Entries (In/Out/Missed)
• Speed Dial: Supported
• XML Browser: Supported
• DSS Keys: Programmable Soft Keys
• Features: Hotline, Redial, Call Completion
CALL FUNCTIONS
• Call Handling: Hold, Resume, Mute, Transfer
• Conferencing: 6-Way Audio Conference
• Caller ID: Supported
• DND: Do Not Disturb (Timed)
• Auto Answer: Supported
• Call Forwarding: Supported
AUDIO
• Codecs: G.711, G.722, Opus, G.729
• Speakerphone: Full-Duplex with AEC
• Noise Reduction: NR, AGC, VAD and CNG
• Echo Cancellation: Supported
• Jitter Buffer: Dynamic Adaptive
NETWORK
• Ethernet: Dual 10/100/1000Mbps Ports
• IP Mode: IPv4 and IPv6
• Network Protocols: DHCP, Static, PPPoE
• VLAN: 802.1Q Support
• VPN: L2TP and OpenVPN
• QoS: Supported
PROTOCOLS
• SIP: SIP v1 and v2
• Transport: UDP, TCP, TLS
• Security: SRTP
• Provisioning: TR-069 Supported
• Network Services: HTTP, HTTPS, FTP, TFTP
DEPLOYMENT AND MANAGEMENT
• Auto Provisioning: FTP, TFTP, HTTP, HTTPS, DHCP
• Web Management: Browser-Based Interface
• Configuration: Import and Export Supported
• Firmware Upgrade: Supported
• Diagnostics: Syslog and Packet Dump
PHYSICAL
• Display: 132 × 64 Graphical LCD with Backlight
• Keypad: 21 Keys Including DSS and Function Keys
• Ports: RJ9 Handset, RJ45 Network, USB Type-A
• Installation: Desktop (Wall Mount Optional)
• Colour: Black
POWER
• Power Input: DC 5V 0.6A or PoE
• Power Consumption: 0.8W to 1.86W (PoE)
• Temperature: 0~45°C
• Humidity: 10~95%
GENERAL
• Security: AES128 and AES256 Encryption
• Certifications: CE, FCC
• Dimensions: 169 × 201 × 177mm (Desktop)
• Weight: Approx. 1kg (Unit)
Brand
Fanvil
Title

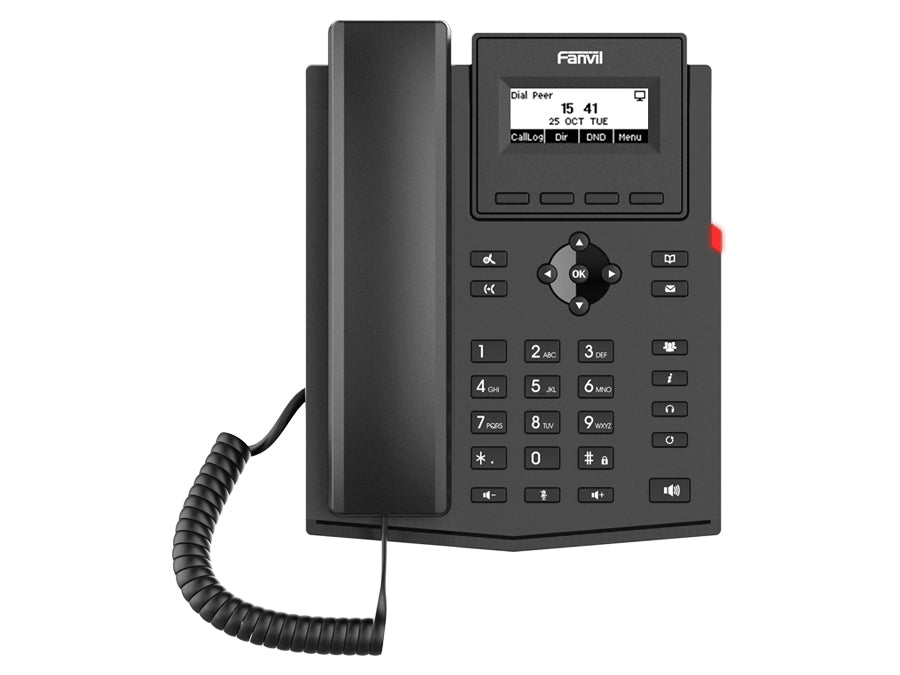

FANVIL X301G COST-EFFECTIVE GIGABIT IP PHONE WITH 2.3-INCH 132 × 64 PIXEL DOT-MATRIX DISPLAY - FAN-X301G
