FEATURES
• Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
• Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
• Loud Sound - 10W Speaker, 90dB hands-free call and 100dB broadcast - sound shock
• Remote Pickup - Remote pickup can reach up to 5m and accurately capture every word
• Self-Check Function - Voice loop self-check, simplifies maintenance and reduces cost
• Recording Broadcast - Built-in SD card slot supports recording and preset broadcast - flexible and diverse
• Stylish and Durable - Stainless steel panel with an aluminium-alloy structure, corrosion resistance and up to IK10 anti-theft standard
• Protection Grade - IP66 Waterproof and dustproof grade, suitable for all kinds of harsh environment
• Friendly Interaction - Large 27mm backlit button, dual status indicator (call, control), intuitive and friendly operation
• High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc
• Alarm Light - Built-in 1× wet node output, can drive the external alarm light
• Rich Interfaces - Audio line output, short circuit input / output, Wiegand, USB, RS485, to meet diverse needs
SPECIFICATIONS
SYSTEM
• OS: Linux
• Appearance: Front Shell - Stainless Steel, Bottom Shell - Aluminium-Alloy
• DSS Key: 1×
• Dimensions: 205 × 120 × 47mm
• SIP Lines: 2×
• Tamper-Proof: Yes
• Third-Party IP Camera Integration: Supported
• Auto-Provisioning: DHCP / TR069 / SIP PnP
• ONVIF: Supported
• Call LED: Yes
• Door LED: Yes
AUDIO AND VIDEO
• HD Audio: Yes
• Wideband Codec: G.722, Opus
• Broadcast Codec: G.722, Opus, MP3
• Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
• Microphone: 2×
• Microphone Pickup Distance: up to 5m
• Power Amplifier: 10W Class D
• Speaker Power: 10W
• Full Duplex (1m): 90dB
• Half Duplex (1m): 100dB
• Broadcast (1m): 100dB
• Acoustic Echo Cancellation: Yes
• Noise Reduction: Yes
INTERFACES
• PoE: PoE+
• DC Power: Supported
• TF Card Slot: SD Card (Max. 256GB)
• Audio Interface: 1× Audio Output (1KΩ)
• Relay: 2× (Max. DC 30V 2A, AC 125V 0.5A)
• Short-Circuit Output: 2× (1× Wet-Node)
• Short-Circuit Input: 2×
• RS485 Interface: 1×
• Ethernet Port: 1× RJ45
• USB Interface: 1×
• Installation: Flush-Mounted / Wall-Mounted
PROTECTION AND ENVIRONMENT
• Protection Rating: IP66, IK10
• Operating Temperature: -40~70°C
Brand
Fanvil
Title

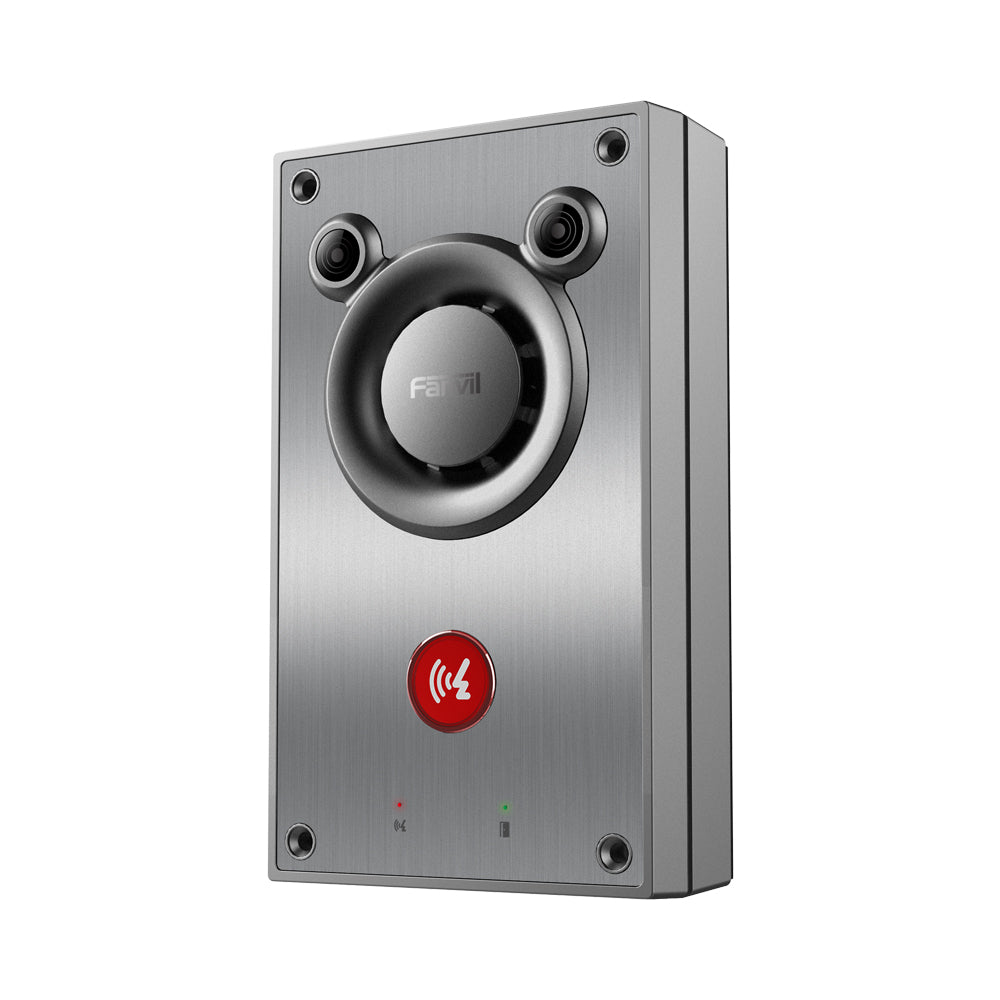

FANVIL A12 OUTDOOR AUDIO INTERCOM WITH 10W SPEAKER - FAN-A12
