FEATURES
• HD Video - Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
• Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
• Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
• Loud Sound - 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
• Remote Pickup - Remote pickup can reach up to 5m and accurately captures every word
• Self-Check Function - Voice loop self-check, simplify maintenance, reduce costs
• Recording Broadcast - Built-in SD card slot supports recording and preset broadcast, flexible and diverse
• Beautiful and Durable - Stainless steel panel with aluminium-alloy structure, corrosion resistance, up to IK10 anti-theft
• Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
• Friendly Interaction - 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
• High Compatibility - Compatible with SIP-based mainstream IP PBX / softswitch / IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc
• Alarm Light - Built-in 1× wet node output, can drive the external alarm light
• Rich Interfaces - Audio line output, short-circuit input / output, Wiegand, USB, RS485, to meet diverse needs
SPECIFICATIONS
SYSTEM
• OS: Linux
• SIP Lines: 2×
• Tamper-Proof: Yes
• Third-Party Integration: Supported
• Auto-Provisioning: DHCP / TR069 / SIP PnP
AUDIO
• HD Audio: Yes
• Wideband Codec: G.722, Opus
• Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
• Speaker Power: 10W
• Noise Reduction: Yes
• Acoustic Echo Cancellation: Yes
• Automatic Volume Control: Yes
• SPL: 100dB (1W/1m)
• Full Duplex: 90dB
• Half Duplex: 100dB
• Broadcast: 100dB
VIDEO
• Image Sensor: 1/2.9" Colour CMOS
• Camera: Built-In 4MP
• Lens: F2.0, Fixed
• Video Codec: H.264
• Resolution: 720p / 1080p
• Minimum Illumination: 0.05 Lux
• Fill Light: Infrared
• Field of View: 103° (Horizontal), 54.8° (Vertical)
NETWORK
• Protocols: SIP, ONVIF, RTSP
HARDWARE
• Power: PoE or DC12~24V 2A
• TF Card Slot: Yes
• USB Interface: Yes
• Button Backlight: Yes
• Microphone: Dual Microphone
• Audio Line-Out: 1×
• Short-Circuit Input: 2×
• Short-Circuit Output: 2×
• RS485 Interface: 1×
• Ethernet: RJ45 (PoE)
GENERAL
• Faceplate: Stainless Steel
• Installation: Wall-Mounted / Flush-Mounted
• Protection Rating: IP66, IK10
• Operating Temperature: -40~70°C
Brand
Fanvil
Title

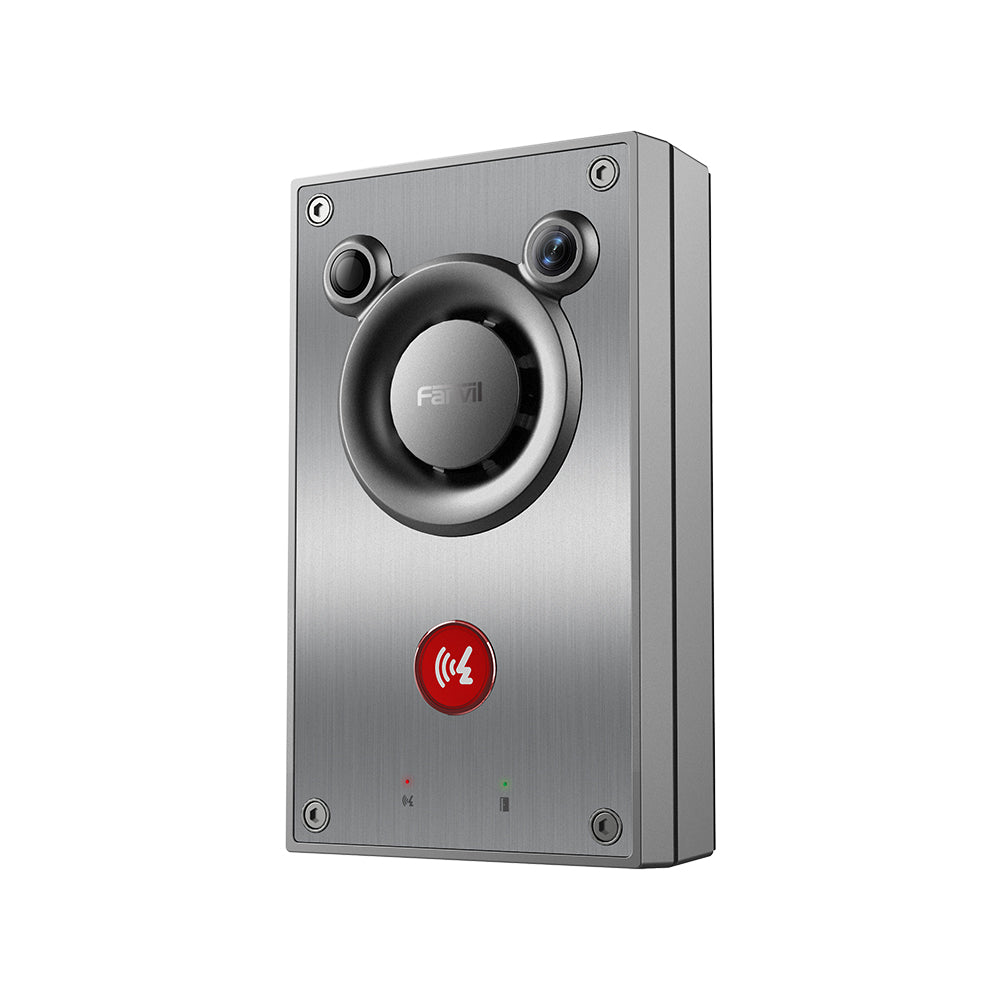

FANVIL A12V SIP VIDEO INTERCOM 10W IP66 RATING - FAN-A12V
