FEATURES:
• All-in-One Design - Combines speakerphone, wireless handset and charging dock to reduce desk clutter
• Seamless Device Switching - Effortlessly switch between PC softphones and smartphone calls
• Wireless Handset with Bluetooth 5.4 - Reliable connection with up to 10m range and anti-interference performance
• Dual Microphone with ENC and ANS - Clear voice pickup with advanced noise reduction for improved call quality
• 10W Wireless Charging - Conveniently charge smartphones while working
• USB Type-C Connectivity - Easy connection to PC for unified communication platforms
• Instant Access Controls - Quick buttons for call handling, volume, mute and Bluetooth
• Adjustable Tilt Stand - Optimised viewing angle for video calls and daily use
SPECIFICATIONS
BASE
• Microphone: 2× Omnidirectional Analogue Microphones
• Voice Pickup Range: 1.5m
• Sensitivity: -32dBFS
• Frequency Range: 45Hz~7kHz
• SNR: >65dB(A)
• Full Duplex: Supported
• Beamforming: Supported
• ENC: Environmental Noise Cancellation
• ANS: Adaptive Noise Suppression
• AGC: Automatic Gain Control
• Reverberation Reduction: Supported
SPEAKERPHONE
• Speaker Size: ø40mm
• Rated Power: 4Ω 3W
• Sensitivity: 87dB ±2dB
• Frequency Range: 195Hz~20kHz
• Impedance: 4Ω @1kHz
• Max Input Power: 5W
• Music Mode Bandwidth: 195Hz~20kHz
• Speak Mode Bandwidth: 195Hz~8kHz
• Audio Codec: SBC
• Power Supply: 12V 1.5A
• Power Consumption: Max. 18W
WIRELESS HANDSET
• Microphone: 1× Omnidirectional Analogue Microphone
• Sensitivity: -38dBFS
• Frequency Range: 45Hz~8kHz
• Battery Type: Lithium Polymer
• Battery Capacity: 300mAh
• Talk Time: up to 18 Hours
• Charging Time: 3.5 Hours
• Standby Time: up to 21 Hours (Auto Sleep After 10 Minutes)
• HAC: Hearing Aid Compatible
WIRELESS CHARGING
• Charging Coils: 1×
• Output Power: 10W
• Effective Charging Distance: 3~5mm (Centre Aligned)
CONNECTIVITY
• Base Connectivity: USB Type-C / Bluetooth
• Wireless Handset: Bluetooth
• Bluetooth Version: 5.4
• Profiles: A2DP, HSP, HFP
• Operating Range: up to 10m
• Pairing Capacity: up to 8 Devices
• Simultaneous Connections: 2×
PHYSICAL
• Dimensions:
- Base: 204.8 × 174.9 × 114.8mm
- Handset: 203.7 × 45.8 × 47mm
• Weight:
- Base: 561g
- Handset: 190g
• Operating Temperature: -10~60°C
• Operating Humidity: 10~95% RH
Brand
Fanvil
Title

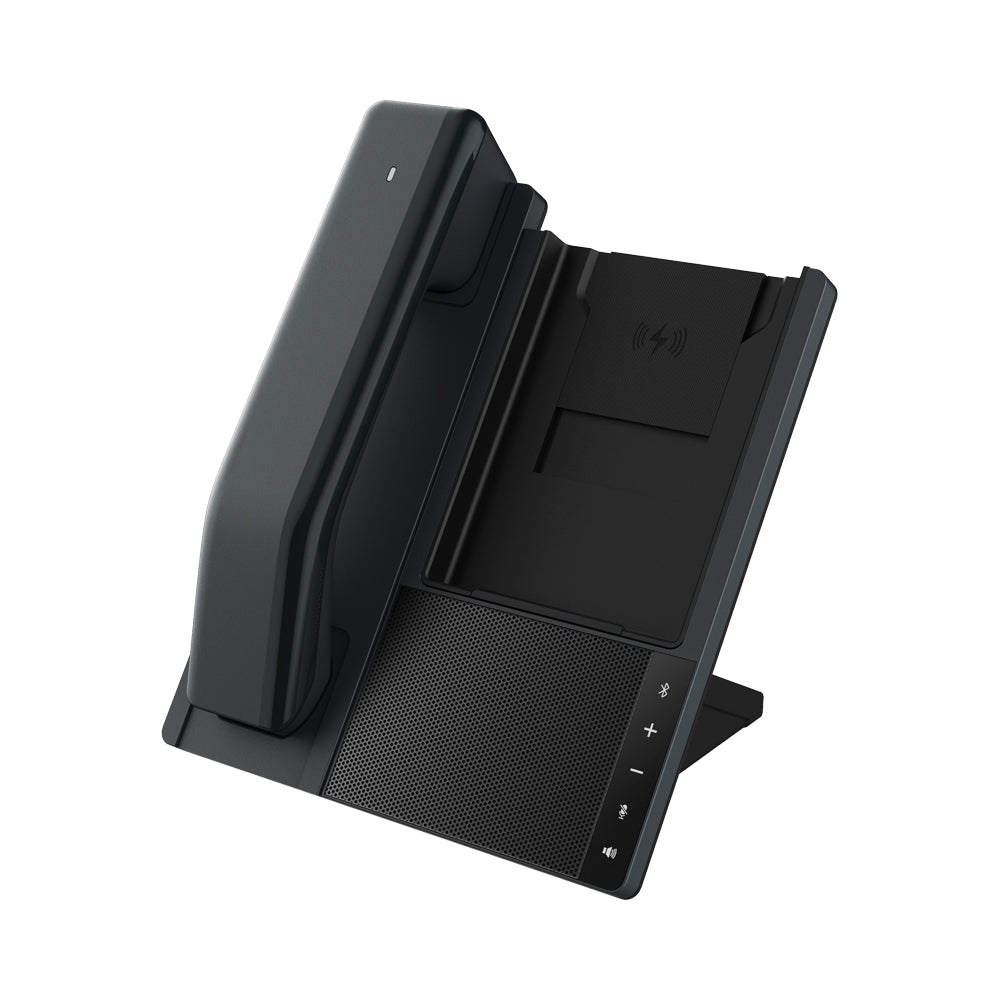

LINKVIL DB20-H ALL-IN-ONE PHONE STATION - FAN-DB20-H
