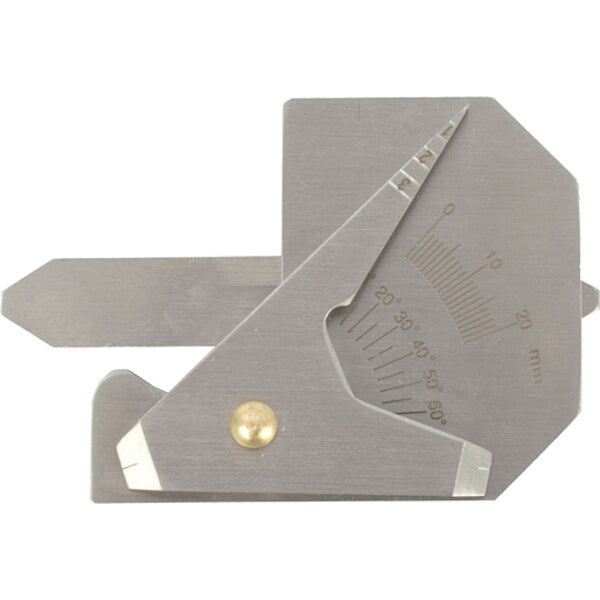

A Welding Fillet Gauge is a specialized tool used to measure the size and quality of fillet welds, which are
triangular welds used to join two surfaces at a right angle. Fillet welds are common in structural and
industrial applications such as construction, shipbuilding, and automotive manufacturing. The fillet gauge helps
ensure that the weld meets specified design dimensions and standards, such as throat thickness and leg length,
which are critical for the strength and integrity of the weld.

• Printing repeated on reverse side


• Measures fillet weld size


• Made of the stainless steel

A Welding Fillet Gauge is an essential tool for inspecting the size and quality of fillet welds. It provides
quick and accurate measurements of leg length, throat thickness, and sometimes weld angle, helping to ensure
that the weld meets design specifications and industry standards. The gauge's durable construction, ease of use,
and versatility make it an invaluable tool for welders, inspectors, and quality control personnel in industries
such as construction, shipbuilding, and automotive.
