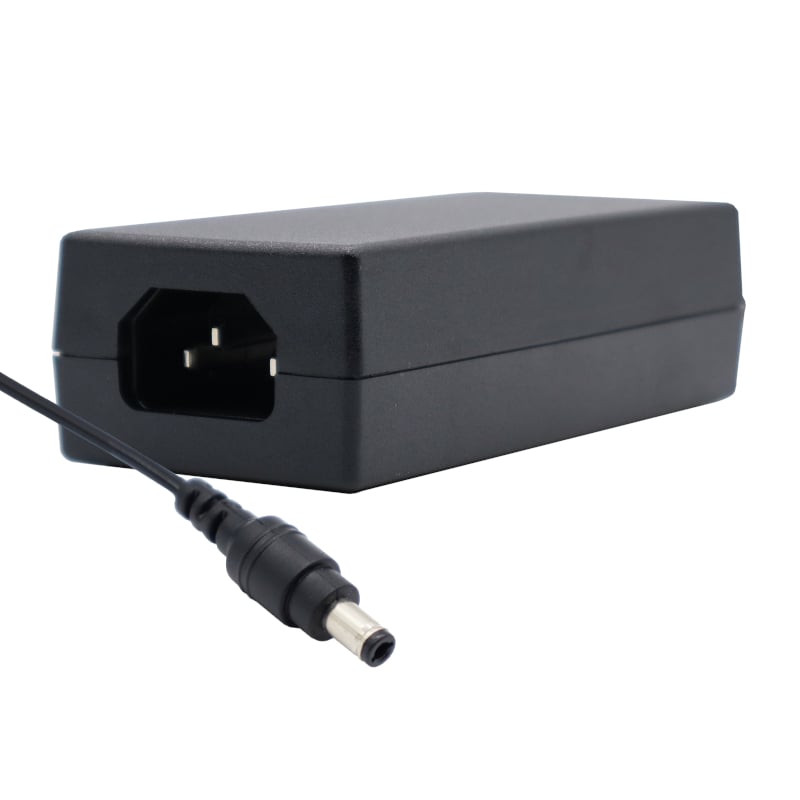

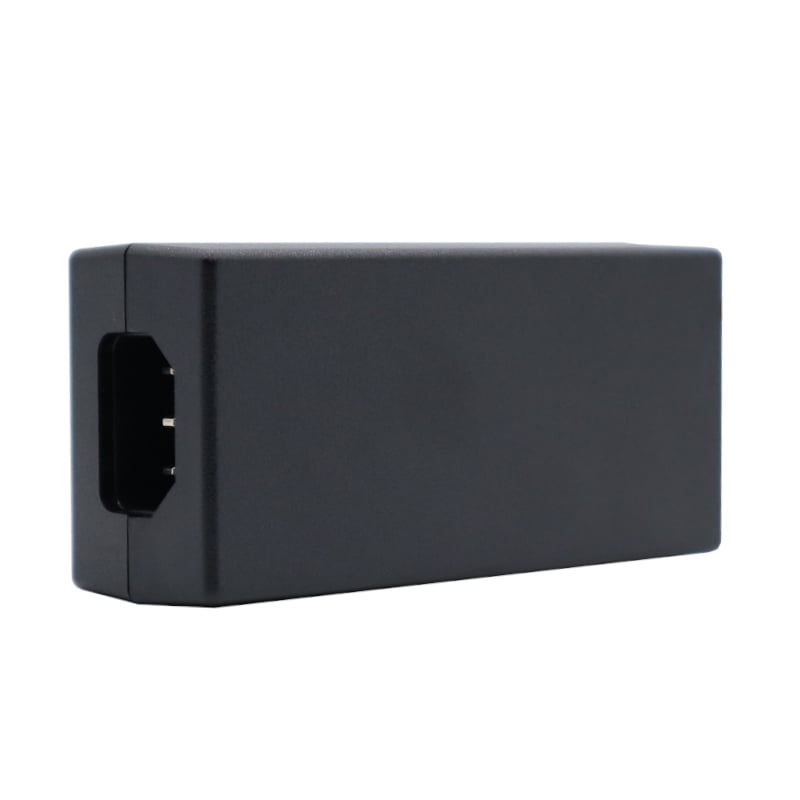

The FSP 30W AC to DC 12V 2.5mm Adapter is a 30 watts AC to DC power supply intended for use in IPC systems, embedded systems, IPC Systems, Embedded Systems, Printers, Monitors and POS Systems, etc. that have high wattage demands. This adapter operates at 90 to 264 VAC input voltage. The unit meets CISPR32 EN55032 CLASS B, EN55024 and FCC PART 15B Class B emission limits, and is designed for ITE application.
FEATURES:
- Meet IEC 62368-1 & IEC 60950-1
- Meet Energy Efficiency DOE Level VI
- Meet Code of Conduct Version 5 Tier 2
- High Reliability
- EMC Standard: EN55032/ EN55024 Class B
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
SPECIFICATIONS:
- Output Voltage: 12V
- Output Current: 2.5A
- Input voltage: 90-264 VAC
- Input frequency: 47-63 Hz
- Input current: 100Vac, 240Vac / full load ≦ 1.0A
- No load power consumption: 115Vac , 230Vac ≦ 0.075W
- Touch current: 264Vac / 50Hz ≦ 0.25mA
- Cable Gauge: 20AWG
- Cable Length: 150cm
- Connector: 2.5mm
- Colour: Black
WHAT'S IN THE BOX:
- FSP 30W AC to DC 12V 2.5mm Adapter - Black x1
Brand
FSP
Title
FSP PSU 30W 2.5MM 12V 2.5A Adapter-FSP030-DHAN3
