- Especially suitable for:
- Industry, construction sites, car and truck garages, agricultural technology
- Bridge, ship, aircraft and railway construction, refineries
- Machinery and plant engineering, maintenance
- Features:

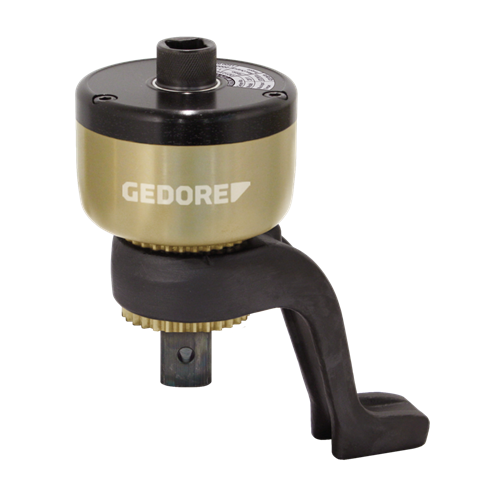

- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With single stage planetary gearing
- High-performance aluminium housing
- With Z-form, offset reaction arm of chrome-vanadium steel
- Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
- Model with transmission ratio 1:5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- To operate with a suitable torque wrench
- 1 model with maximum load in the range up to 1300 Nm
- Also available as set (No. DVV-13ZG) with three different Impact sockets SW 27, 30, 32 mm
- Output square with hole for Impact sockets with locking pin and ring
TECHNICAL - Distance output square - start reaction arm (min.): 56
- Distance output square - end of reaction arm (max): 95
- Output square: 3/4"
- Output square (metric): 20 mm
- Output square (inch): 3/4"
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Drive square inch: 1/2"
- Version reaction arm: Z-Form, gekröpft
- Output torque (max.) [lbf-ft]: 950
- Output torque (max.) [Nm]: 1300
- Wide torque multiplier: 80
- Input torque [lbf·ft]: 200 lbf·ft
- Input torque (max.) [Nm]: 270 Nm
- Total width without reaction arm: 80
- Total height with reaction arm (max.): 173
- Total height with reaction arm (min.): 165
- Total height without reaction arm: 133
- Multiplication at the ratio: 1:5
