AMD Ryzen™ 7 8845HS | Radeon™ 780M Graphics | AMD Ryzen™ AI (38 TOPS) | Quad 4K HDMI Output | Up to 96GB DDR5 | Book-Size Design

Quick Specs

• Drive demanding signage and edge AI workloads with an 8-core AMD Ryzen™ 7 8845HS


• Accelerate on-device AI with AMD Ryzen™ AI delivering up to 38 TOPS


• Power up to four 4K displays at once through quad HDMI outputs


• Expand to 96GB DDR5 memory and fast PCIe 4.0 M.2 SSD storage


• Connect with dual Ethernet (1GbE + 2.5GbE) and plentiful USB 3.2 Gen2

Ryzen 8000-Series Power in a Book-Size Build

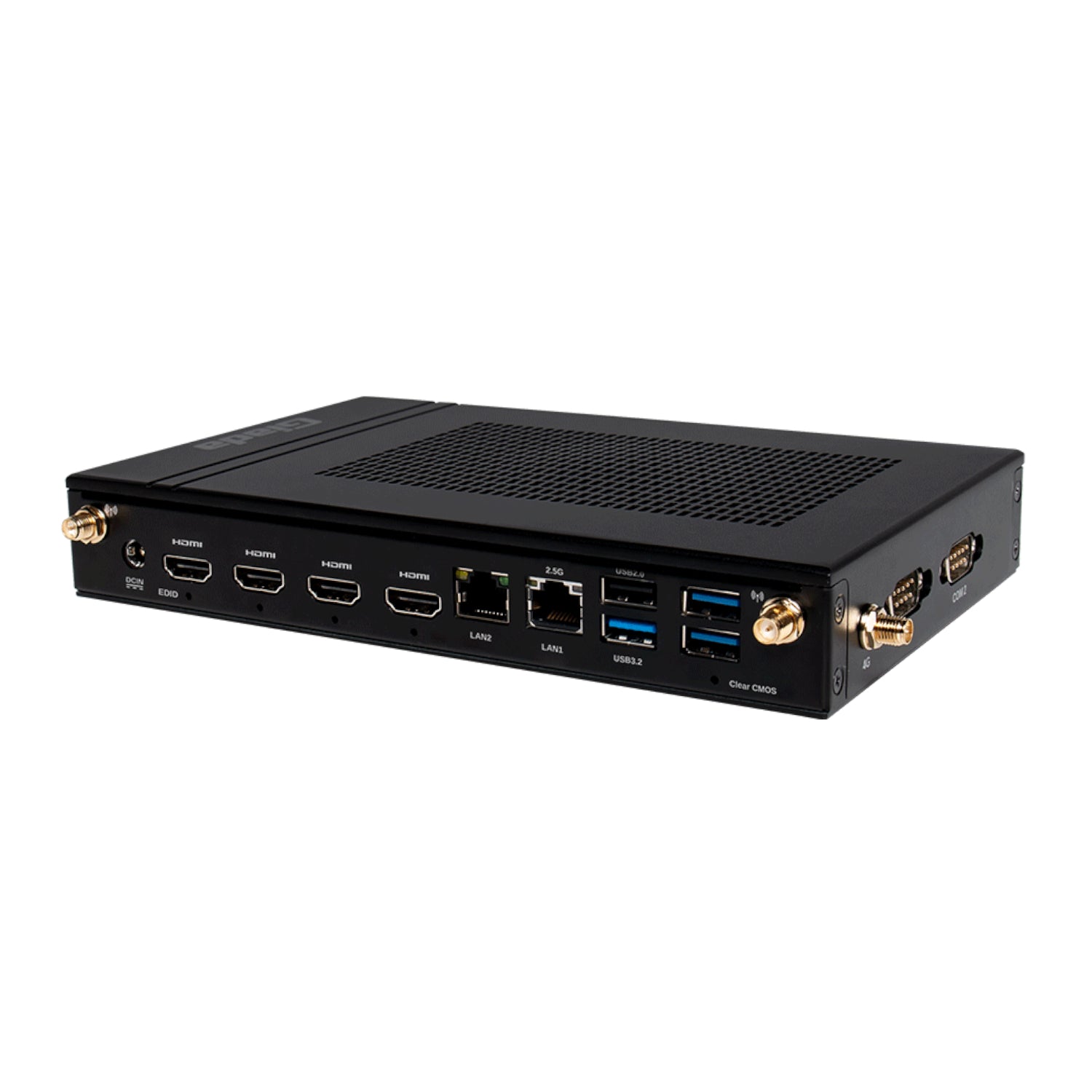

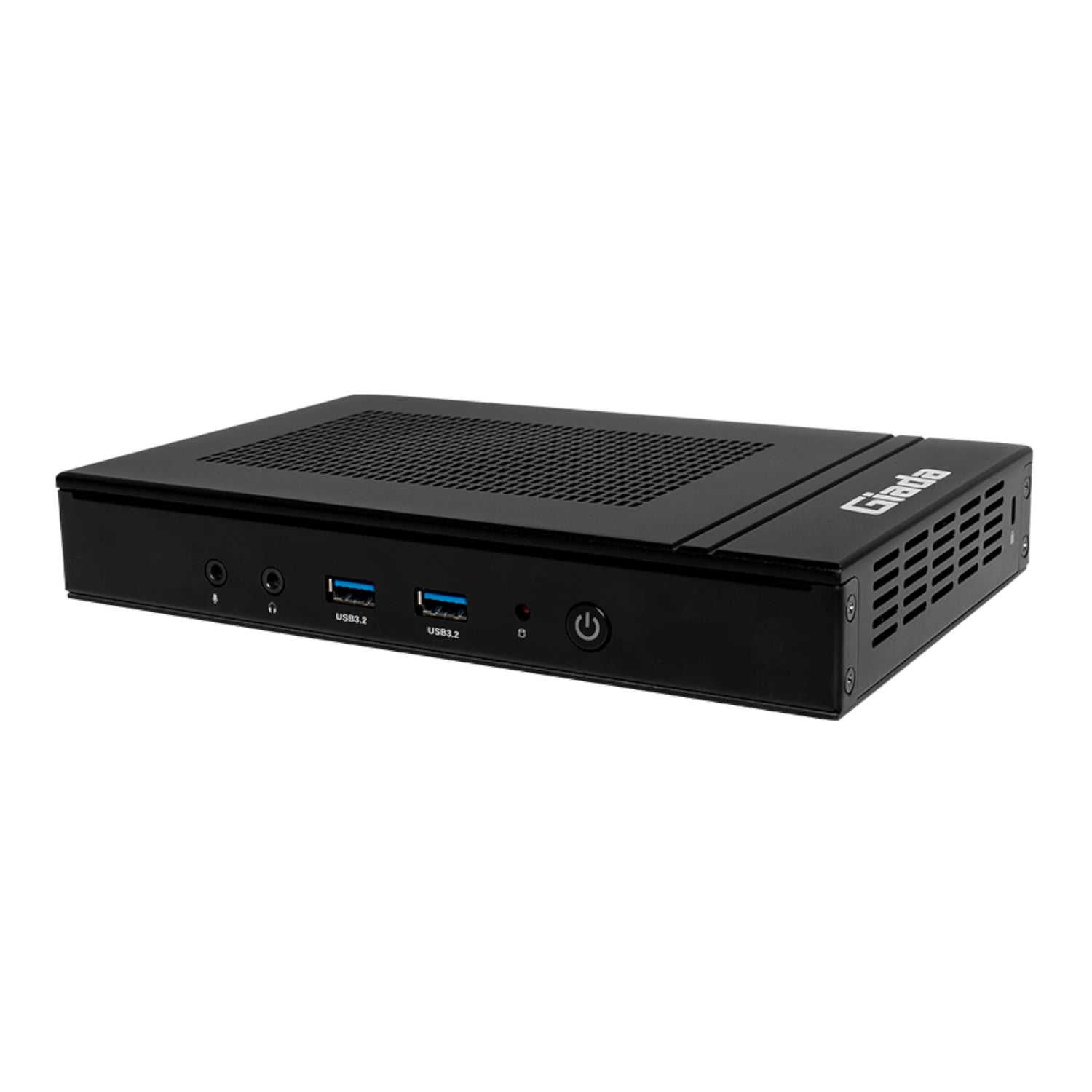

The Giada D108 is a high-performance embedded computer built around the 8-core AMD Ryzen™ 7 8845HS processor with integrated AMD Ryzen™ AI. Delivering up to 38 TOPS of total AI performance (16 TOPS from the dedicated NPU), it’s ready for modern AI-assisted signage, kiosk and edge workloads across South Africa — all in a compact, book-size chassis that fits almost anywhere.

Stunning Quad-Display Visuals

Built for digital signage, the D108 drives up to four independent displays simultaneously through four HDMI ports, each supporting resolutions up to 3840 × 2160 (4K) at 60Hz with hardware EDID. AMD Radeon™ 780M graphics handle rich multimedia with advanced hardware decode and encode (including H.265, VP9 and AV1), making it ideal for crisp 4K video walls and multi-screen deployments.

Extensive Connectivity and Expansion

Connectivity is comprehensive. A rich I/O array includes five USB 3.2 Gen2 ports, a USB 2.0 port, an RS232 serial port (optionally two) and MIC-IN/AUDIO-OUT, while dual Ethernet — 1GbE plus 2.5GbE — keeps wired networking fast and resilient. Inside, support for up to 96GB of dual-channel DDR5 memory and a PCIe® 4.0 M.2 (2280) SSD gives you room to scale, with optional M.2 modules adding Wi-Fi 5/6E and 4G mobile connectivity plus a SIM slot.

Reliable, Always-On Operation

Engineered for unattended deployments, the D108 features smart active cooling, a watchdog timer, auto power-on, scheduled RTC and optional TPM 2.0 for hardware security. A rugged metal chassis and a wide 0–45°C operating range keep it dependable around the clock, and it runs Windows 11 (64-bit) or Linux Ubuntu (64-bit), fully certified to CE, FCC Class B and UKCA standards.

FEATURES:

• 8-core AMD Ryzen™ 7 8845HS processor (AMD Ryzen 8000 series)


• AMD Ryzen™ AI with up to 38 TOPS total, including a 16 TOPS NPU


• AMD Radeon™ 780M integrated graphics


• Quad HDMI output driving up to four 4K displays at 3840 × 2160 @60Hz with hardware EDID


• Advanced multimedia decode/encode (H.264, H.265, VP9, AV1)


• Up to 96GB dual-channel DDR5-5200 memory across two SO-DIMM slots


• PCIe® 4.0 x4 M.2 (2280) SSD storage


• Five USB 3.2 Gen2 ports plus one USB 2.0 port


• RS232 serial port (optional second RS232)


• Dual Ethernet: 1GbE (Realtek) and 2.5GbE (Intel I226-V)


• Optional M.2 Wi-Fi 5/6E and 4G mobile connectivity with SIM slot


• Smart active cooling, watchdog timer, auto power-on and scheduled RTC


• Optional TPM 2.0 for hardware security


• Rugged metal construction with a wide 0–45°C operating temperature range


• Runs Windows 11 (64-bit) or Linux Ubuntu (64-bit)


• Certified to CE, FCC Class B and UKCA standards

SPECIFICATIONS:

• Processor: AMD Ryzen™ 7 8845HS (8 cores)


• Chipset: SoC


• Base Power: 45 W


• NPU: AMD Ryzen™ AI, 38 TOPS total (16 TOPS NPU)


• GPU: AMD Radeon™ 780M


• Multimedia: 1080p60 8bpc MPEG2/VC1, 4320p75 8bpc H.264, 4320p49 8/10bpc H.265/VP9 decode; 2160p175 8bpc H.264, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1 encode


• System Memory: Up to 96 GB, 2 × SO-DIMM DDR5-5200 MHz


• Storage: 1 × M-Key M.2 (2280) PCIe 4.0 x4 for SSD


• Display Interface: 4 × HDMI (max. 3840 × 2160 @60 Hz) with hardware EDID


• Displays Supported: 4


• USB: 5 × USB 3.2 Gen2, 1 × USB 2.0


• Serial Port: 1 × RS232 DB9 (optional: 2 × RS232)


• Audio: 1 × MIC-IN, 1 × AUDIO-OUT


• Ethernet: 1 × 1 GbE RJ45 (Realtek RTL8111H), 1 × 2.5 GbE RJ45 (Intel I226-V)


• Wi-Fi / Bluetooth: 1 × E-Key M.2 (2230) for Wi-Fi/BT


• Mobile Network: 1 × B-Key M.2 (3042/3052) for 3G/4G, 1 × SIM slot


• Antenna: 2 × Wi-Fi/BT connectors, 2 × 3G/4G connectors (reserved)


• Buttons: 1 × Power on, 1 × CLR-CMOS


• TPM: Optional TPM 2.0


• Watchdog Timer: Yes


• Auto Power On: Yes


• RTC: Independent daily/weekly scheduling


• Cooling: Smart fan, active cooling


• Power Requirement: DC-IN, 19 V / 4.74 A


• Operating System: Windows 11 (64-bit) / Linux Ubuntu (64-bit)


• Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F) @ 0.7m/s air flow


• Humidity: 10 ~ 90% @ 45°C (non-condensing)


• Certifications: CE, FCC Class B, UKCA


• Construction: Metal, Black


• Product Dimensions: 20.5 × 13 × 3.2 cm

WHAT’S IN THE BOX:

• Giada D108 Book-Size Signage Player x1


• Wi-Fi Antenna x2


• AC Power Cable x1


• AC Power Adapter x1

Why Giada?

Giada is a specialist in reliable embedded and signage computing trusted by integrators worldwide, and the D108 reflects that focus — powerful, compact and built to run around the clock. For South African businesses deploying digital signage, kiosks or edge AI, it’s a dependable, expandable platform backed by Giada’s reputation for industrial-grade quality.
