KEY FEATURES \n \nFeatures: \n
-
\n

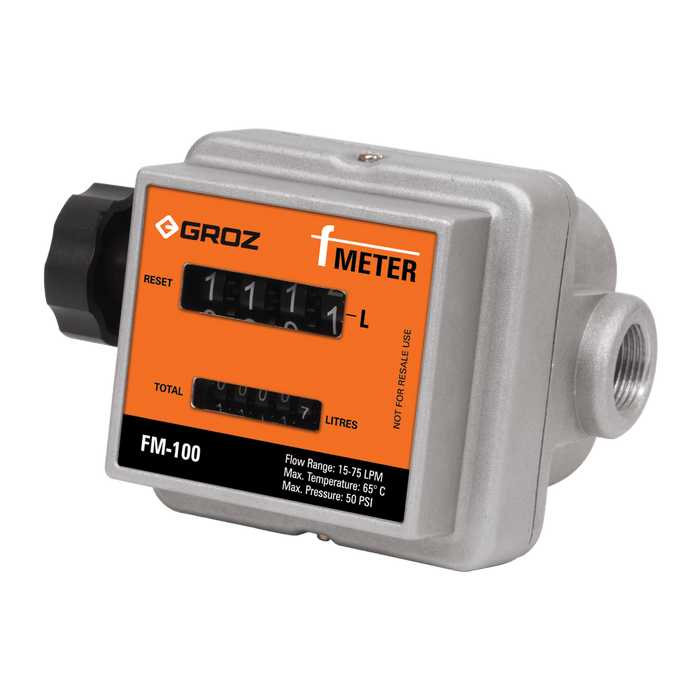

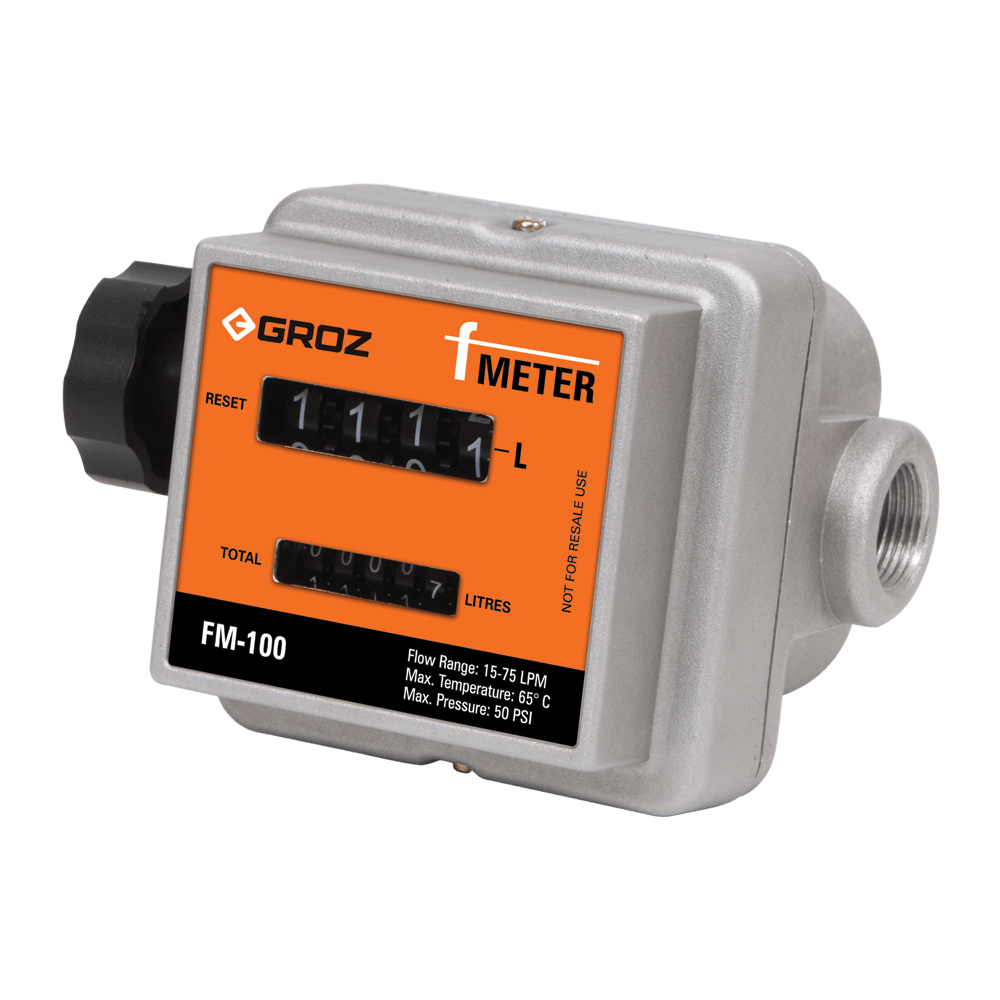

- The Groz Mechanical Fuel Meters set the standard for precision and reliability in fuel measurement. \n
- Incorporating a nutating disc mechanism that excels in tolerating fuel contamination, this meter is engineered for versatility and durability. \n
- Its robust aluminum die-cast construction ensures resilience in various applications, whether in-line, at 90 degree inlet and outlet ports at right angle and flow with a minimum gravity \n
- head of 4'. \n
- Specifically designed for compatibility with electric fuel pumps. \n
- The Groz meter boasts a register cap that can be effortlessly rotated for convenient display reading in every 90° orientation. \n
- easy user re-calibration and availability in liter/gallon versions, this meter is recommended for diesel, gasoline and low to medium viscosity oils. \n
- A flow rate of 15-75 LPM (4-20 GPM) with an impressive accuracy of ± 2%. \nSpecifications: \n
- Flow Rate: 15 - 75 LPM (4 -20 GPM) \n
- Mechanism: Nutating Disc \n
- Accuracy: ± 2% \n
- Repeatability: ± 1% \n
- Max Working Pressure: 50 PSI (3.5 BAR) \n
- Working Temperature Range: -10°C TO 65°C (14°F TO 150°F) \n
- Max. Resettable batch totalizer: 9999.9 Litres or 999.9 Gallons \n
- Max. Non Resettable batch totalizer: 999999 Litres or 99999.9 Gallons \n
- Least count / Resolution: 0.10 Litres or 0.10 Gallons \n
- Measurements: Litres \n
- Thread: 3/4" NPT (F) \n
- Wetted Components: Aluminum, Poly Butylene Terephthalate \n
- (PBT),Viton, Stainless Steel \n
- Recommended Use: Diesel, Gasoline, Low to \n
- Medium Viscosity Oils \n
-
\n
- CODE: GRO2167-001 \n
- BARCODE: 8901486441818 \n
- HEIGHT: 36.5cm \n
- LENGTH: 27.5cm \n
- WIDTH: 67cm \n
Brand
MTS
Title
GRO2167-001 - GROZ METER MECHANICAL 3/4"NTP(F)THREAD 8901486456812
