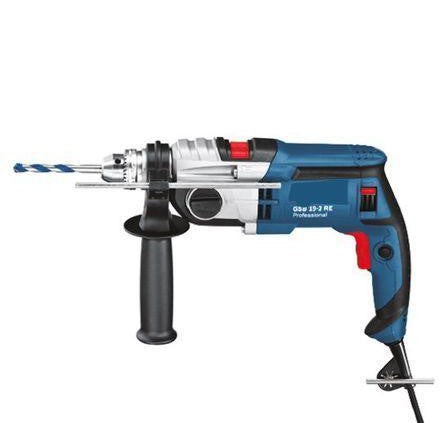

GSB 19-2 RE PROFESSIONAL
The fastest and most versatile tool in its class
- Powerful 2-speed impact drill (850 W) for the fastest work progress
- Sturdy metal gear housing for a long lifetime
- Antirotation mechanical overload clutch for a high level of work safety
Additional data
|
| Rated input power |
850 W |
| Weight |
2.6 kg |
| No-load speed, 1st gear |
0 – 1,000 rpm |
| No-load speed, 2nd gear |
3,000 rpm |
| Power output |
430 W |
| Impact rate at no-load speed |
0 – 17,000 / 51,000 bpm |
| Rated speed |
800 / 2,060 rpm |
| Rated torque |
5.2 / 2.0 Nm |
| Drill spindle connecting thread |
1/2"-20 UNF |
| Chuck capacity, min./max. |
1.5 – 13 mm |
| Max. torque |
36.0 Nm |
Drilling range
|
| Drilling diameter in wood |
40 / 25 mm |
| Drilling diameter in steel |
13 / 8 mm |
| Drilling dia. in stone |
20 / 15 mm |
| Drilling diameter in masonry |
20 / 15 mm |
Total vibration values (Drilling in metal)
|
| Vibration emission value ah |
3 m/s² |
| Uncertainty K |
1.5 m/s² |
Total vibration values (Impact drilling in concrete)
|
| Vibration emission value ah |
15 m/s² |
| Uncertainty K |
2 m/s² |
Total vibration values (Screwdriving)
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Total vibration values (Thread-cutting)
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Noise/vibration information
|
| Sound pressure level |
99 dB(A) |
| Sound power level |
110 dB(A) |
| Uncertainty K |
5 dB |
Drilling in metal
|
| Vibration emission value ah |
3 m/s² |
| Uncertainty K |
1.5 m/s² |
Impact drilling in concrete
|
| Vibration emission value ah |
15 m/s² |
| Uncertainty K |
2 m/s² |
Screwdriving
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
Thread-cutting
|
| Vibration emission value ah |
2.5 m/s² |
| Uncertainty K |
1.5 m/s² |
The A-rated noise level of the power tool is typical as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 5 dB.
