FEATURES
• Multi-Format AV Scaling - Converts and scales multiple video sources to HDMI or VGA displays
• Multiple Input Support - Supports HDMI, VGA, Component and Composite video sources
• Full HD Output Resolution - Supports up to 1920×1080p @60Hz and WUXGA resolutions
• Advanced Video Processing - Includes 3D de-interlace, noise reduction and 3D comb filter
• Frame Rate Conversion - Delivers smoother and more stable video playback
• HDMI and VGA Outputs - Flexible display connectivity for modern and legacy displays
• Audio Conversion Support - Supports DAC and ADC audio conversion functionality
• Flexible Control Options - Supports RS232, IR and IP Telnet/WebGUI control
• EDID and HDCP Support - Ensures broad device compatibility
• On-Screen Display Control - Easy configuration and input management
• Apple Device Compatibility - Supports non-HDCP signals from Apple computers
SPECIFICATIONS
INPUT PORTS
• 3× HDMI
• 3× VGA (15-Pin D-Sub)
• 1× Component Video
• 1× Composite Video
• 6× 3.5mm Stereo Audio
• 4× RCA Stereo Audio
• 1× IR Extender (3.5mm)
• 1× RS232 (9-Pin D-Sub)
• 1× IP Control (RJ45)
• 1× USB (Service)
OUTPUT PORTS
• 2× HDMI
• 1× VGA (15-Pin D-Sub)
• 1× Coaxial Audio
• 1× 3.5mm Stereo Audio
COMPLIANCE
• HDMI 1.3 (DVI 1.0)
• HDCP 1.4
MAXIMUM INPUT RESOLUTION
• HDMI: 1920×1080p @60Hz
• VGA: 1920×1200 @60RB
• Component: 1920×1080p @60Hz
• Composite: 480i/576i
MAXIMUM OUTPUT RESOLUTION
• HDMI: 1920×1080p @60Hz
• VGA: 1920×1200 @60RB
OTHER
• Audio Support: LPCM 2-Channel Audio
• Power Supply: 5V 3A DC
• Power Consumption: 11W
• Chassis Material: Metal
• Colour: Black
• Dimensions: 432 × 47 × 183mm
• Weight: 2.14kg
• Firmware Update Interface: USB Service Port
Brand
Cypress
Title

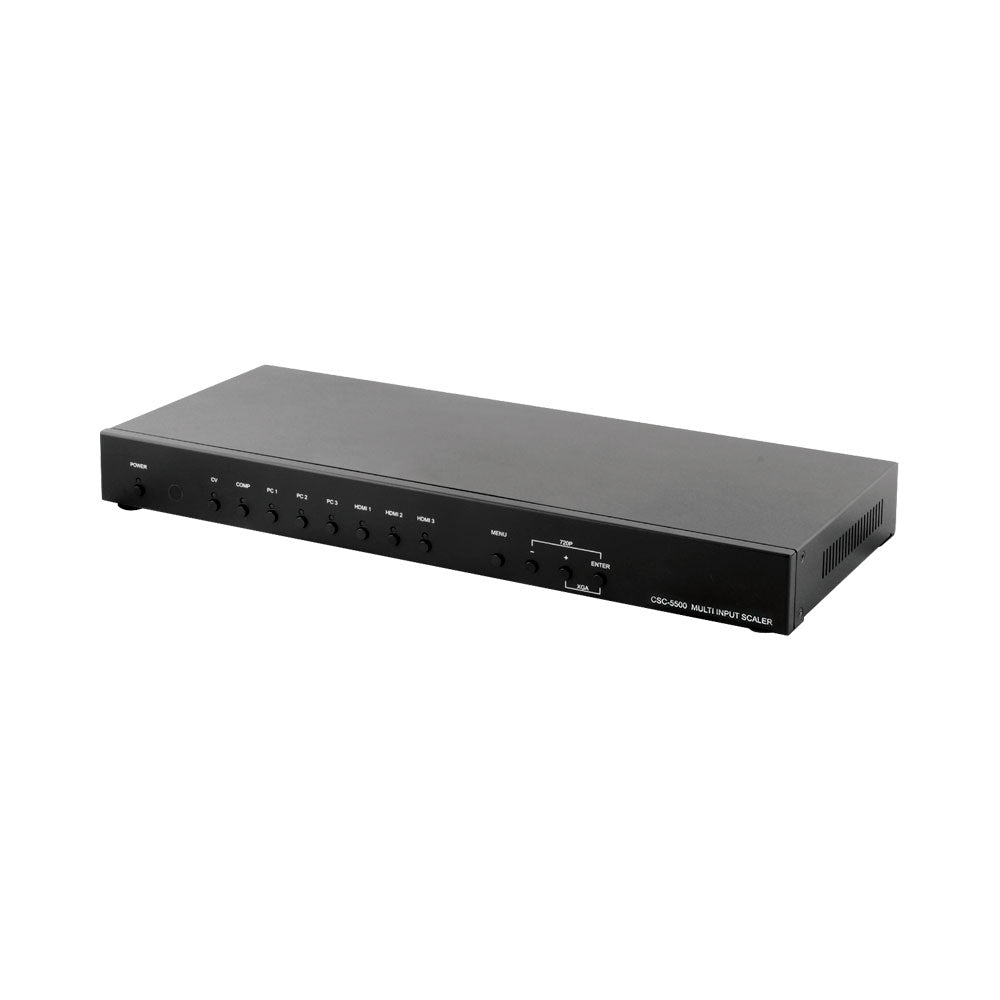

CYP CSC-5500 MULTIPLE INPUTS TO HDMI/VGA SCALER - CNV-CSC-5500
