FEATURES
• 1× HDMI Source to 4× HDMI Displays
• 1080p @60Hz and 1920 × 1200
• Multiple Display Modes (2×2, 1×1, 1×2, 1×3, 2×1, 3×1 and 4×1)
• 3.5mm L/R Audio
• RS-232/Dip Switch Control
• Auto Down-Scaling
SPECIFICATIONS
• Video Input: 1× HDMI
• Video Outputs: 4× HDMI
• Supported HDMI Version: HDMI 1.4
• HDCP Compliance: HDCP 1.4
• Supported Resolutions:
1080p @60/50/30/25/24Hz, 720p @60/50Hz, 576p @50Hz, 480p @60Hz, 1920×1200 @60Hz, plus Various Lower Resolutions (e.g. 1680×1050, 1600×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480)
• Display Wall / Splice Modes: 1×1, 1×2, 1×3, 1×4, 2×1, 3×1, 2×2, 4×1, 1×4
• Audio Output: 3.5mm L/R Audio Output (PCM) and HDMI Audio Output (PCM)
• Control Methods: Manual via DIP Switch or Remote via RS232 (Baud Rate: 9600)
• Auto Down-Scaling: Yes
• Power Supply: DC 5V 1A
• Power Consumption: <4W
• Operating Environment:
Working Temp: –20~60°C
Storage Temp: –30~70°C
Humidity: 0–90% RH (Non-Condensing)
• Housing: Metal Casing (Black)
• Dimensions: 160 × 90 × 20.6mm
• Weight: 381g
• ESD / Surge / Lightning Protection: Yes - Supports Contact Discharge ±4kV, Air Discharge ±8kV, Compliant with IEC61000-4-2 Standard
Brand
Lenkeng
Title

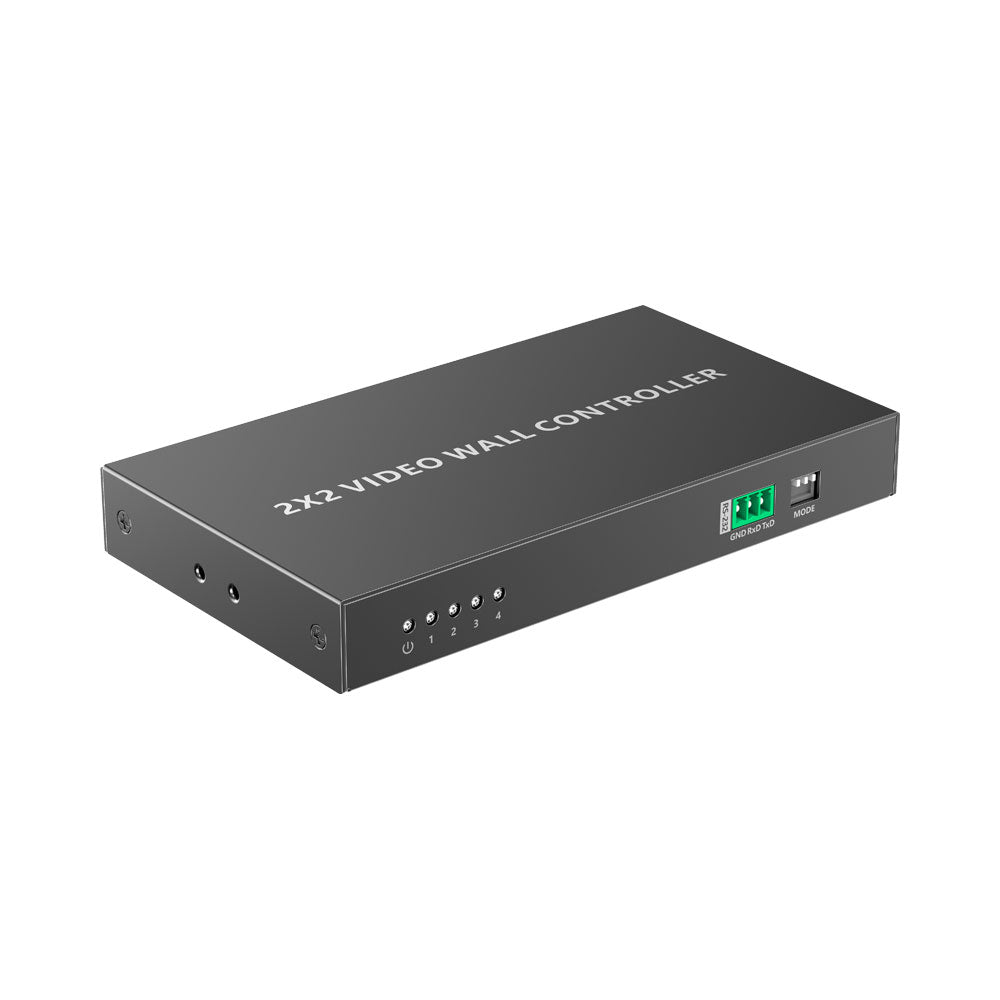

LENKENG 2X2 QUAD VIDEO WALL CONTROLLER - CNV-LKV104VW
