FEATURES
• Zero Latency
• 4K @60Hz HDMI Signal Can be Transmitted 70m Through a CAT6/6A/7 Network Cable
• Supports up to 10× Receivers in Cascade, Auto Adapt to Display Resolution
• Receiver Can Extract the Digital Audio from the Transmitter Through the S/PDIF Port
• Supports Dolby Audio (Dolby TrueHD 7.1CH / Dolby Digital 5.1CH)
• Supports HDR (YUV4:4:4), EDID Passback
• Transmitter Supports One HDMI Loop-Out
• Supports Bi-Directional IR Passback Function (20–60KHz), Cascade When 10× Receivers Are Available
• One Receiver Can Be Powered by the Transmitter via Network Cable, Only on the First Receiver
• Anti-Lightning, Anti-Surge, Anti-Static Protection
SPECIFICATIONS
• Voltage/Current: DC5V 2A
• Power Consumption: TX <4W, RX <4W
• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDCP 2.2
• HDMI Resolution: 3840×2160 @24/25/30/50/60Hz
• Supports Audio Formats: LPCM / DTS-HD / DTS-Audio /Dolby TrueHD 7.1CH / Dolby Digital 5.1CH
• Input and Output DDC Signal: 0.7~1.2Vp-p (TMDS)
• Input and Output DDC Signal: 5Vp-p (TTL)
• Input Cable Length: ≤8m (AWG24)
• Output Cable Length: ≤8m (AWG24)
• CAT6/6A/7: ≤70m
• Electrostatic Protection: 1a Contact Discharge level 3, 1b Air Discharge Level 3, Implementation of the Standard: IEC61000-4-2
• Working Temperature: -20~60°C
• Storage Temperature: -30~ 70°C
• Humidity (No Condensation): 0~90% RH
• Dimensions (L × W × H): 106 × 99 × 26.2mm
• Material: Aluminium-Alloy and Crystal Panel
• Colour: Black
• Weight: TX 210g, RX 210g
Brand
Lenkeng
Title

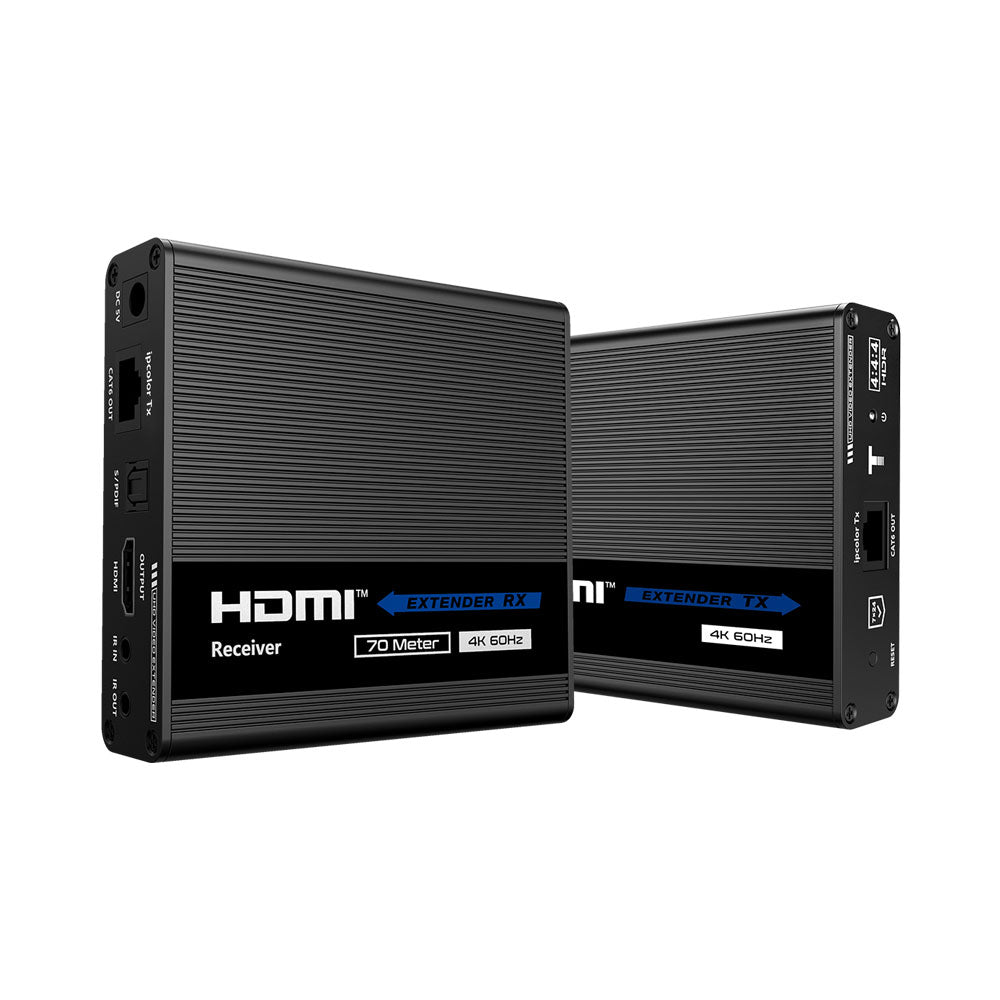

LENKENG 4K HDR 18GBPS EXT OVER CAT6, HDMI LOOP KIT - CNV-LKV676CASCADE
