FEATURES
• Compact Design
• Low Latency
• Distance up to 20m - 4K @60Hz
• 5.1~5.8GHz Band - Channel Switchable
• Anti-Interference
SPECIFICATIONS
• Voltage/Current: Micro USB Power Supply (5V 1A)
• Power Consumption: TX <5W, RX <3.5W
• HDMI Version: HDMI 2.0
• HDCP Version: HDCP 1.4 / HDCP 2.2
• Maximum Transmission Rate: 18Gbps
• Supported Resolutions: 3840×2160 @24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB), 1080p @50/60Hz, 720p @50/60Hz, 1920×1200 @60Hz
• TMDS Signal (Input/Output): 0.7~1.2Vp-p
• DDC Signal (Input/Output): 5Vp-p (TTL)
• Wi‑Fi Frequency Bands: 5.18–5.24GHz
• Transmission Distance (Wireless): ≤20m
• Latency: 100–250ms
• Connection Type: One‑to‑One (Point‑to‑Point)
• SSID Pairing: Supported
• ESD Protection: Contact Discharge Level 3 / Air Discharge Level 3 (per IEC61000‑4-2)
• Operating Temperature Range: –20~50°C
• Storage Temperature Range: –30~70°C
• Humidity (No Condensation): 0~90% RH
• Housing Material: ABS Plastic
• Colour: Black
• Net Weight: TX 47g, RX 54g
• Dimensions (W x L x H): TX 40.2 × 230 × 15mm, RX 40.2 × 230 × 15mm
Brand
Lenkeng
Title

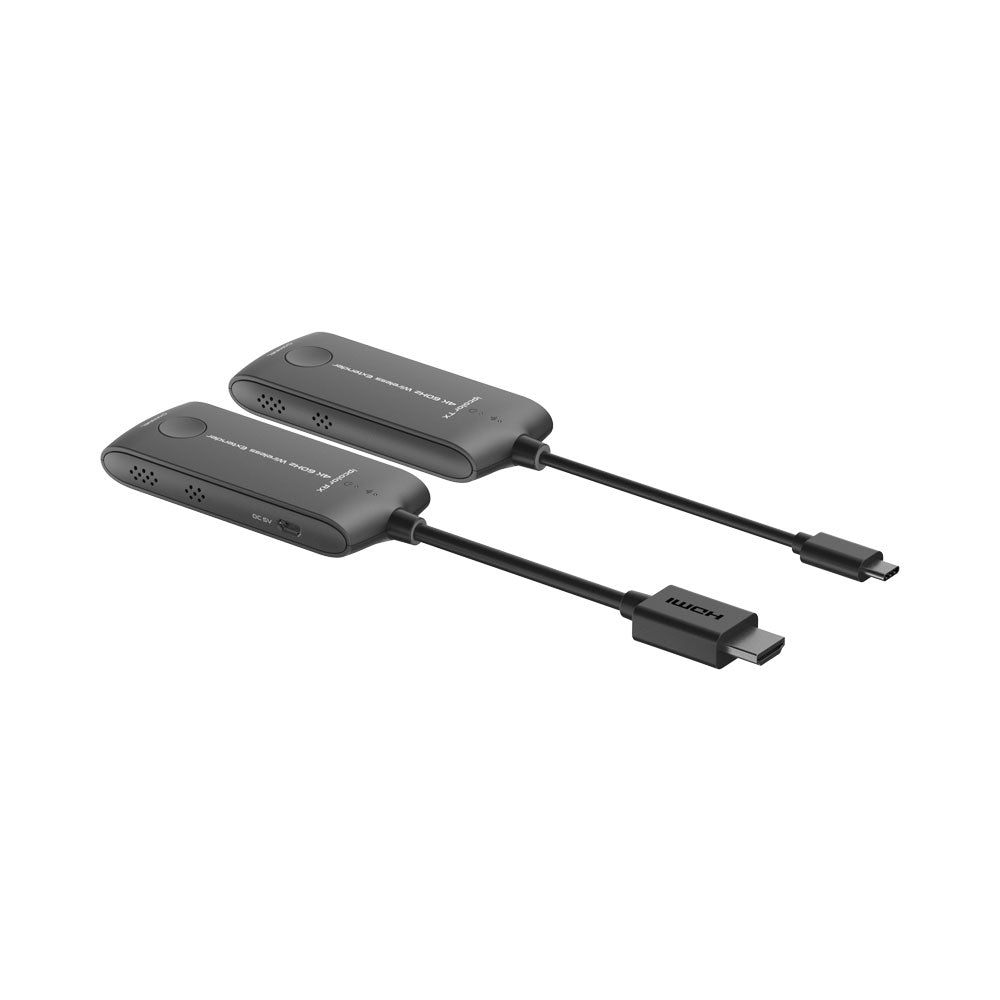

LENKENG 4K60Hz TYPE-C WIRELESS EXTENDER - CNV-LKV488TYPEC-V2.0
