FEATURES
• 4× HDMI Sources to 4× HDMI Displays
• 4K @60Hz HDR10 4:4:4
• Supports EDID
• Multiple Control Methods including Remote Control
• Any Two of the Four HDMI Ports Support Auto Down-Scaling
• Lightning, Surge and ESD Protection
SPECIFICATIONS
• HDMI Version: HDMI 2.0 (HDR, YUV4:4:4) - Compatible With HDCP 2.2 / HDCP 1.4
• HDMI Interface: 4× HDMI Input, 4× HDMI Output
• Transmission Rate: 18Gbps
• Bandwidth: 600MHz
• Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz, 3840×2160 @24/25/30/60Hz, 4096×2160 @24/25/30/60Hz
• Audio Formats: LPCM 7.1 / DTS-HD / DTS-Audio / Dolby Digital Plus / Dolby TrueHD 7.1 / Dolby Digital 7.1CH / Dolby Atmos
• RS232 Port: 3-Pin (GND / Rx / Tx), Baud Rate 9600
• Voltage: DC 5V 1A
• Power Consumption: <4W
• Working Temperature Range: –20~60°C
• Storage Temperature Range: –30~70°C
• Humidity (No Condensation): 0~90% RH
• Housing Material: Metal
• Colour: Black
• Weight: 375g
• Dimensions (L × W × H): 210 × 80 × 21mm
• Protection: ESD Protection (Contact Discharge ±4kV, Air Discharge ±8kV per IEC61000-4-2), Lightning Protection, Surge Protection
Brand
Lenkeng
Title

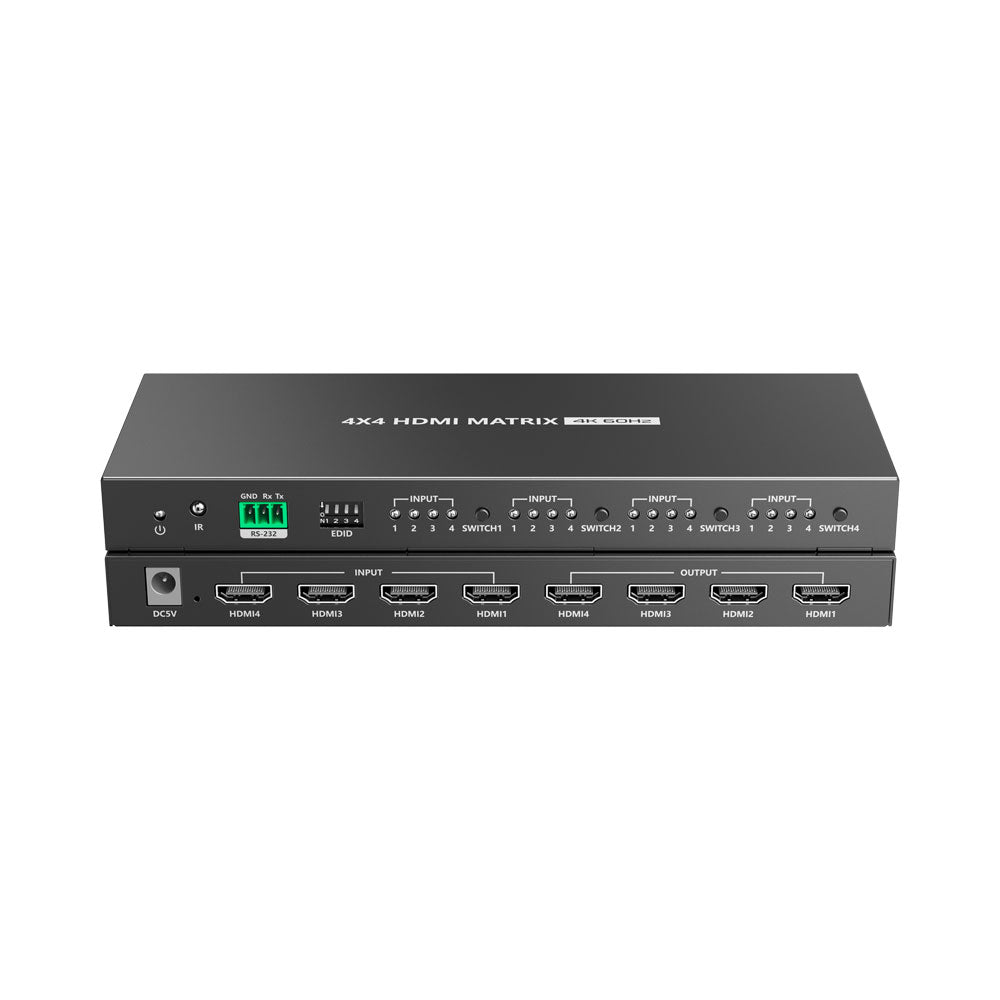

LENKENG 4x4 HDMI MATRIX SWITCH WITH RS232 (LKV424) - CNV-LKV424
