FEATURES
• Pure Sinewave Solar Inverter
• Compatible with AC Mains or Generator Inputs
• Considerable PV Input Types
• Build-In Smart Solar Charger (PWM/MPPT)
• Auto Restart while AC is Recovering
• Configurable AC/Solar Input Priority via LCD Setting
• Selectable Input Voltage Range for Home Appliances and Personal Computer Loads
• Dual PV Input Max 36A
SPECIFICATIONS
• Rated Power: 10,000VA / 9,500W
• Parallel Capability: Yes (optional), up to 4 units
• Operation without Battery: No
• Lithium Battery Communication: Yes
• Dual Output: Yes
INPUT
• Voltage: 220/230/240VAC
• Selectable Voltage Range: 170-264Vac (for personal computer), 90-280Vac (for home appliances)
• Frequency Range: 50Hz/60Hz (auto sensing)
OUTPUT
• AC Voltage Regulation (Battery Mode): (220VAC-240VAC) ±5%
• Surge Power: 20,000VA
• Wave Form: Pure Sinewave
• Inverter Efficiency (Peak): 0.94
• Transfer Time: 10ms (typical)
BATTERY
• Normal Voltage: 48VDC
• Floating Charge Voltage (Settable): 55.2VDC
• Overcharge Protection: 60VDC
SOLAR CHARGER AND AC CHARGER
• Max. PV Array Open Circuit Voltage: 500VDC
• PV Array Voltage Range: MPPT 120-450VDC
• Number of MPP Trackers: 2
• Max. PV Input Power: 12,000W (6000W ×2)
• Max. PV Input Current: 18A ×2
• Max. Solar Charge Current: 100A ×2
• Max. AC Charge Current: 200A
• Max. Charge Current: 200A
COMMUNICATION
• Interface: USB/RS485/CAN/DRY CONTACT
• Wi-Fi Monitoring: Yes (optional)
MECHANICAL SPECIFICATIONS
• Machine Dimensions (H × W × D): 460 × 700 × 120mm
• Package Dimensions (H × W × D): 805 × 530 × 200mm
• Net Weight: 22.85kg
• Gross Weight: 25.05kg
CERTIFICATION
• CE EMC standards (EN IEC 61000-6-3, EN IEC 61000-3-2, EN IEC 61000-3-3, EN IEC 61000-6-1)
• VD standards (EN 62109-1, EN 62109-2)
OTHER
• Humidity: 5% to 95% Related Humidity (Non-condensing)
• Operating Temperature: 0°C~40°C
• Storage Temperature: -15°C~60°C
Brand
LinkQnet
Title

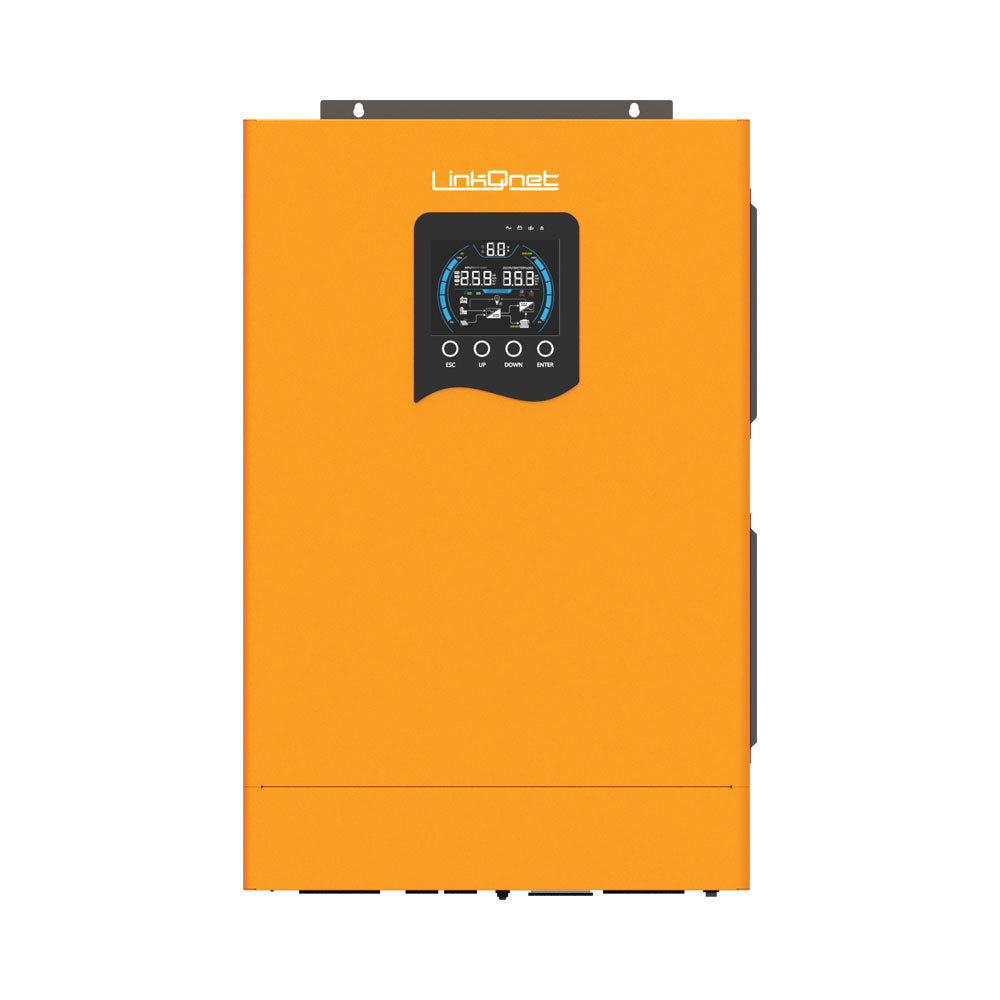

LINKQNET 10KVA DUAL OUTP 48V INV, 2X6KW 500V MPPT - UPS-INV-10KW-10048TG
