FEATURES
• Pure sinewave inverter at full 3000W RMS power
• Built-in MPPT medium voltage solar charge controller (145V DC MAX)
• Configurable input voltage range for home appliances or UPS transfer (<10ms)
• Configurable battery charging current based on application
• Configurable AC/Solar charger priority
• Battery independent design (MPPT voltages > 80V DC)
• Compatible with mains or generator power
• Auto restart when AC recovers or PV power is available
• Overload / over temperature / short circuit protection
• Smart battery charger design for optimised battery performance
• Cold start function
SPECIFICATIONS
INVERTER
• Peak Power: 3000VA (6000VA surge for max 10 seconds)
• RMS Power: 3000W (PF=1)
• AC Voltage: 230V
• AC Waveform: Pure Sinewave
• Efficiency (peak): 0.935
• DC Voltage: 24V (Can operate without batteries if MPPT voltage > 80V DC)
• Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode)
• Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode)
CHARGING
• AC Charge: 60A (Adjustable)
• SCC Type: MPPT
• SCC Voltage: 30V – 115V DC
• Max PV OC Voltage: 145V DC
• Max SCC Power: 1500W
• SCC Charge: 60A (Adjustable)
• Max Combined Charge: 120A (Adjustable)
• SCC Efficiency: 0.98
• Standby Power Consumption: 2W
OPTIONS
• Parallel Capable: No
• Communication: RS-232 / USB-A
• Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom
• BMS Support: No – Third party solution can be used
• Warranty: Two years – Conditional
PHYSICAL
• Weight: 8.20kg
• Dimensions (D × W × H): 110 × 300mm × 440mm
• Operating Humidity: 5% to 95% Relative humidity (Non-condensing)
• Operating Temperature: 0°C to 40°C (Room temperature)
INSTALLATION
• Installation Environment: Indoor environment with no exposure to direct external air in coastal regions
• Input Isolator: 25A–63A dual pole (To be purchased)
• Input Circuit Breaker: 20A normal curve (To be purchased)
• Output Circuit Breaker: 15A normal curve (To be purchased)
• Bypass Switch: 25A–63A dual pole, double throw with centre off (To be purchased)
• Output Isolator: 25A–63A dual pole (To be purchased)
• Earth Leakage Relay: 40A–63A with 30mA break leakage for plug circuits (To be purchased)
• Installation Competency: Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance.
Brand
LinkQnet
Title

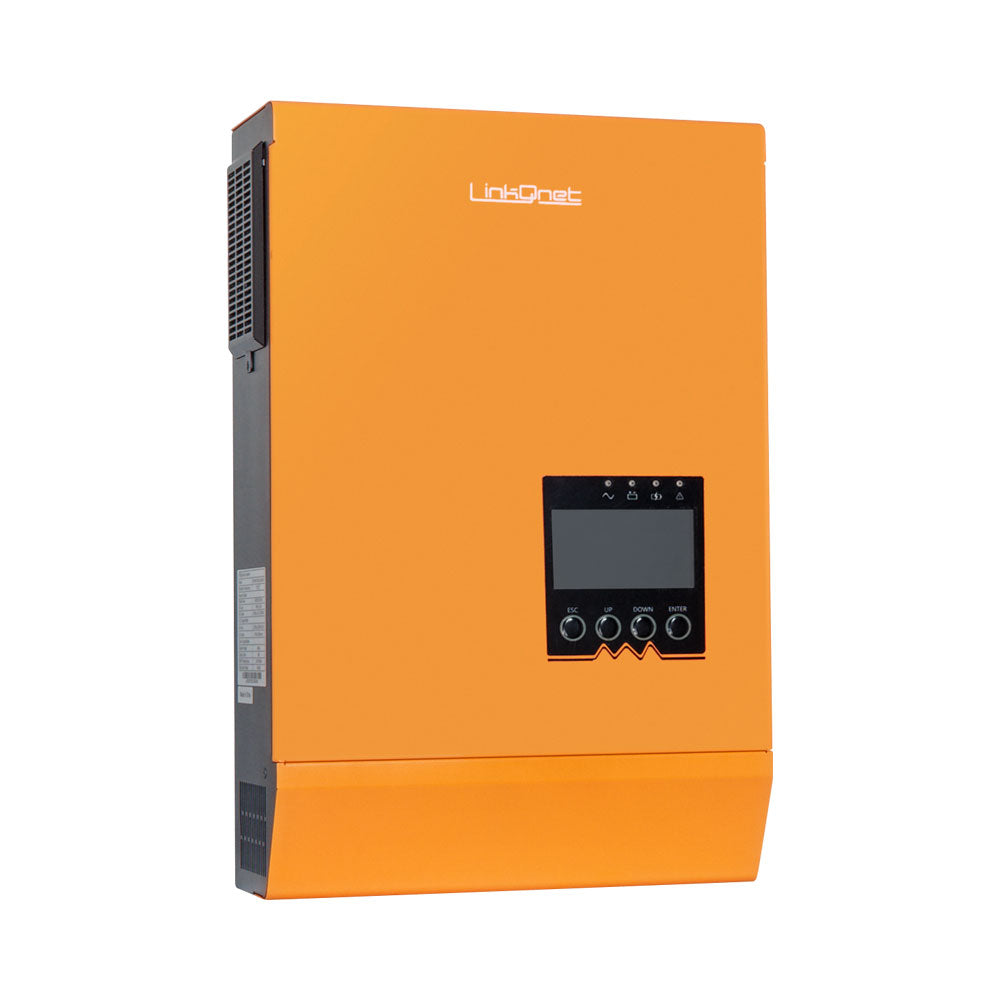

LINKQNET 3KVA 24V INVERTER WITH 1500W 145V MPPT - UPS-INV-3KVA-3024TG
