FEATURES
• 3kVA (3000VA) Pure Sinewave Output for clean and stable power
• Hybrid Off-Grid Design supports solar input and grid backup
• 24V Battery System with wide compatibility
• High Efficiency Performance for reduced power loss
• Fast Transfer Time for uninterrupted power supply
• Advanced MPPT Solar Charging for maximum solar utilisation
• 3kVA (3000VA) Pure Sinewave Output for clean and stable power
• Hybrid Off-Grid Design supports solar input and grid backup
• 24V Battery System with wide compatibility
• High Efficiency Performance for reduced power loss
• Fast Transfer Time for uninterrupted power supply
• Advanced MPPT Solar Charging for maximum solar utilisation
• High Charging Current for faster battery recharge
• Supports Multiple Battery Types (Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom)
• RS-232 and USB-A Communication Ports for monitoring and control
• Built-in Protection Features including overload, short circuit, and battery protection
• Compact and Durable Design for easy installation
• Ideal for Home, Office, and Small Commercial UseHigh Charging Current for faster battery recharge
• Supports Multiple Battery Types (Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom)
• RS-232 and USB-A Communication Ports for monitoring and control
• Built-in Protection Features including overload, short circuit, and battery protection
• Compact and Durable Design for easy installation
• Ideal for Home, Office, and Small Commercial Use
SPECIFICATIONS
• Peak Power: 3000VA
• RMS Power: 3000W
• AC Voltage: 230V
• DC Voltage: 24V
• Transfer Time: 10ms
• AC Charge: 120A
• SCC Type: MPPT
• Ideal SCC Voltage: 120V – 430V DC
• Max. PV OC Voltage: 500V DC
• Max. SCC Power: 4000W
• SCC Charge: 120A
• Max. Combined Charge: 120A
• Parallel Capable: No
• Communication: USB, RS485, CAN, Dry Contact
• Direct Bluetooth: No
• Wi-Fi Option: Yes
• 3G Option: No
• SNMP Option: No
• Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom
• BMS Support :Yes
• Warranty: Two Years – Conditional
• Product Dimensions (H × W × D): 310 × 467 × 116mm
• Package Dimensions (H × W × D): 570 × 375 × 200mm
• Net Weight: 9.25kg
• Gross Weight: 10.85kg
Brand
LinkQnet
Title

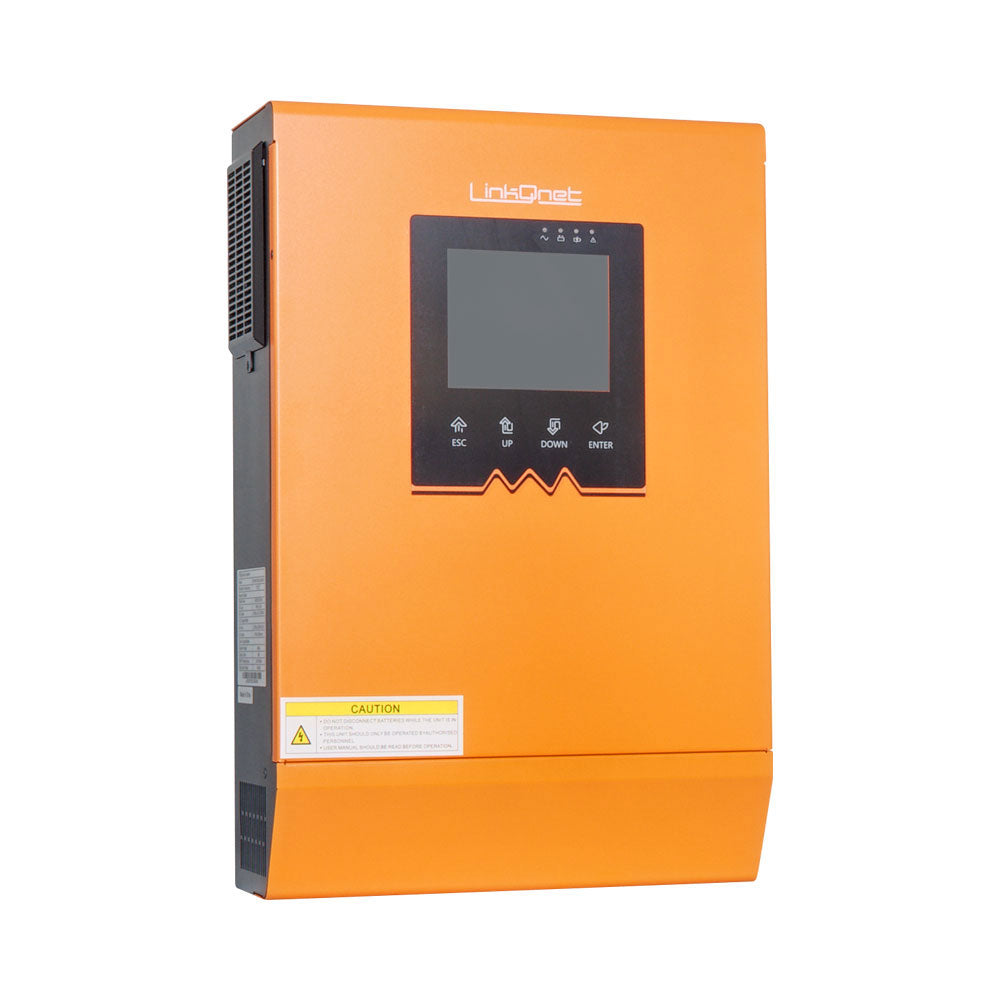

LINKQNET 3KVA 24V INVERTER WITH 4000W 500V MPPT - UPS-INV-3KVA-PRO-TG
