FEATURES
• 3KVA / 3KW pure sine wave inverter output
• Built-in MPPT solar charge controller
• Configurable AC and solar charging priority
• Zero transfer time for seamless power switching
• Compatible with mains or generator input
• Smart battery charging for optimised performance
• Auto restart on AC recovery
• Overload, over-temperature, and short-circuit protection
• Cold start function for battery-only operation
• LCD display with user-configurable settings
SPECIFICATIONS
• Rated Power: 3KVA / 3KW
• Output Waveform: Pure sine wave
• Nominal Output Voltage: 230 VAC ±5%
• Output Frequency: 50Hz / 60Hz
• Efficiency (Line Mode): 93%
• Peak Efficiency (Battery Mode): 90%
• Input Voltage: 230 VAC
• Maximum AC Input Voltage: 300 VAC
• Transfer Time: 0ms (line ↔ battery), 4ms (inverter ↔ bypass)
• Battery Voltage: 24 VDC
• Operating DC Range: 20–34 VDC
• MPPT Voltage Range: 30–115 VDC
• Max PV Open Circuit Voltage: 145 VDC
• Max Solar Charging Current: 60A
• Max AC Charging Current: 60A
• Max Combined Charging Current: 120A
• Surge Capacity: 2x rated power (5 seconds)
• Dimensions: 140 x 303 x 525 mm
• Net Weight: 13 kg
• Communication: RS232, Bluetooth
• Operating Temperature: 0°C to 55°C
• Humidity: 5% to 95% RH (non-condensing)
Brand
LinkQnet
Title

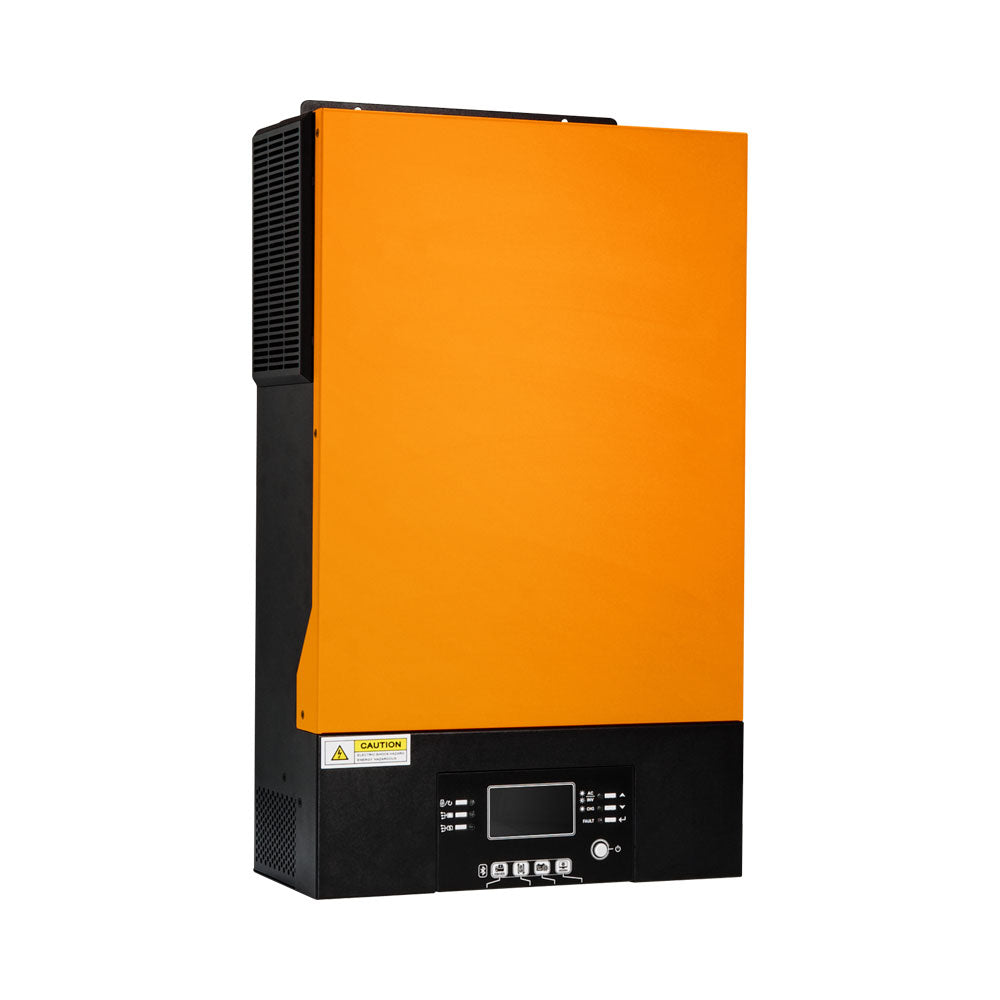

LINKQNET 3KVA PF1 24VDC 1500W MPPT SOLAR UPS INVERTER - UPS-INV-3KVA-KING-LQ
