FEATURES
• High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance SPECIFICATIONS
• The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd
• Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers
• Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement
• It uses internationally sourced components to ensure consistency, performance and reliability
• The firmware is interactively developed and robust
• The flexibility of both CAN bus and RS485 communications allows for a wide range of applications
• The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer
SPECIFICATIONS
BASIC PARAMETERS
• Rated Voltage: 51.2 Volts
• Rated Capacity: 100 Amp Hours
• Rated Energy: 5120 Watt Hours
• Rating: 1C
OPERATING PARAMETERS
• Operating Voltage Range: 44.8 Volts - 56.0 Volts
• Charge Voltage Range: 55.2 Volts - 56.0 Volts (Typical Inverter Bulk/Float Charge can be set to 55.3V)
• Cut-Off Voltage: 44.8 Volts (Typical Inverter Cut Off can be set to 46.0V)
• Recommended Charge Current: 50 Amps
• Maximum Charge Current: 100 Amps
• Maximum Discharge Current: 100 Amps
PHYSICAL PARAMETERS
• Dimensions: 442mm (D) x 470mm (W) x 154mm (3.5U - high)
• Weight: 46kg
• Communication Ports: RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports
• Display: LED and LCD with cursor keys for BMS Status and State of Charge
• Output Terminal: 2x M6 Bolts for Positive, 2x M6 Bolts for Negative
• Output Protection: Internal Electronic Circuit Disconnecter, 125 Amp DC Circuit Breaker
ENVIRONMENTAL
• Humidity: 5% - 95% Relative Humidity
• Charge Temperature Range: 0°C to 45°C
• Discharge Temperature Range: -20°C to 60°C
• Storage Temperature Range: -20°C to 45°C
SERVICE LIFE
• Cycle Life: More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge
• Hardware Design Life: Fifteen Years
• Warranty: Five Years, based on the terms and conditions of the warranty policy
CERTIFICATION
• Safety: CE, EMC, TUV (IEC62619), UL1973
• Transportation: UN38.3
INSTALLATION
• Inverter Integration to BMS: Requires customised cable for each specific inverter brand, refer to manual
• Inverter Integration without BMS: Will emulate Lead Acid battery, can be optimised by altering inverter parameters
• BMS base protocol compatibility: Voltronic “LIb" BMS protocol / Optional Pylontech BMS protocol
• Addressable Parallel Stacking: Battery packs can be paralleled up to sixteen addressable units per solution
• Installation Competency: Not consumer installable. Needs to be wired into inverter/UPS by a qualified electrical contractor with appropriate experience.
Brand
LinkQnet
Title

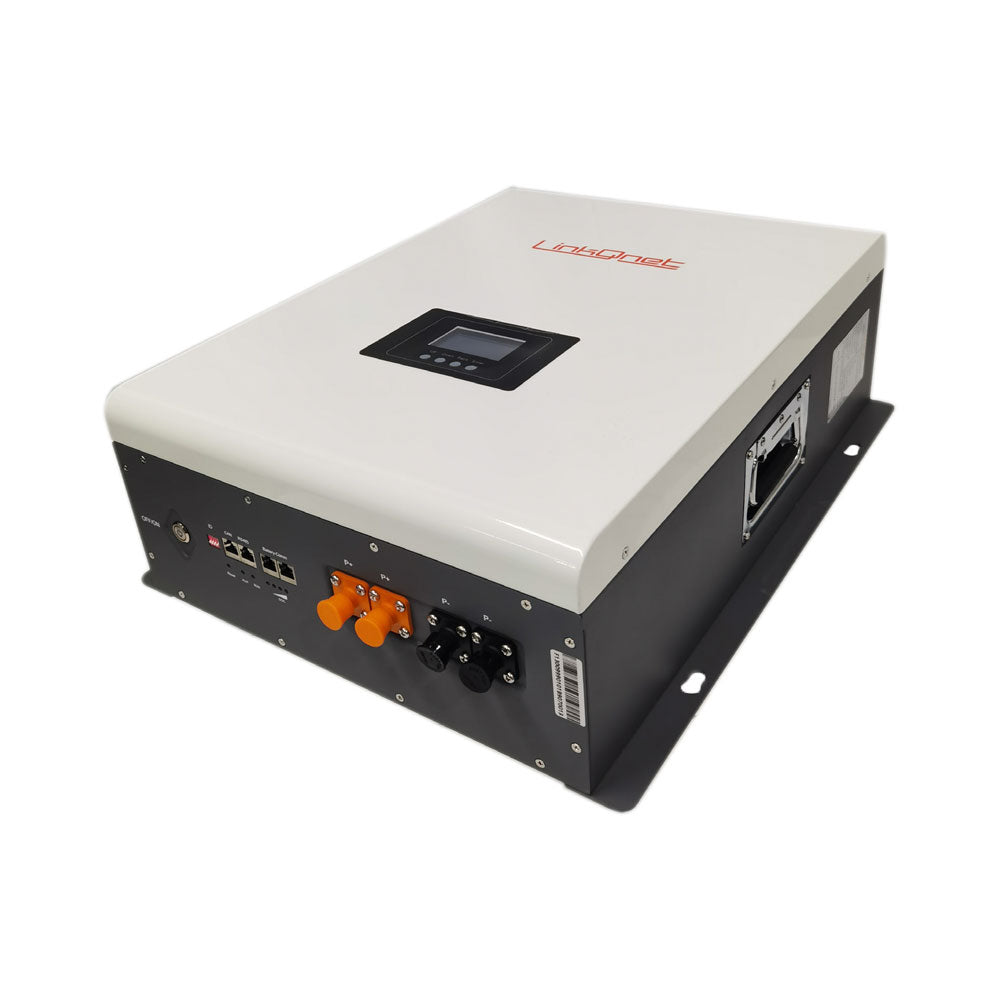

LQ BATTERY PACK LIPO4 51.2V 100AH CAN BMS W/MOUNT - BAT-LI-5120WM-TG
