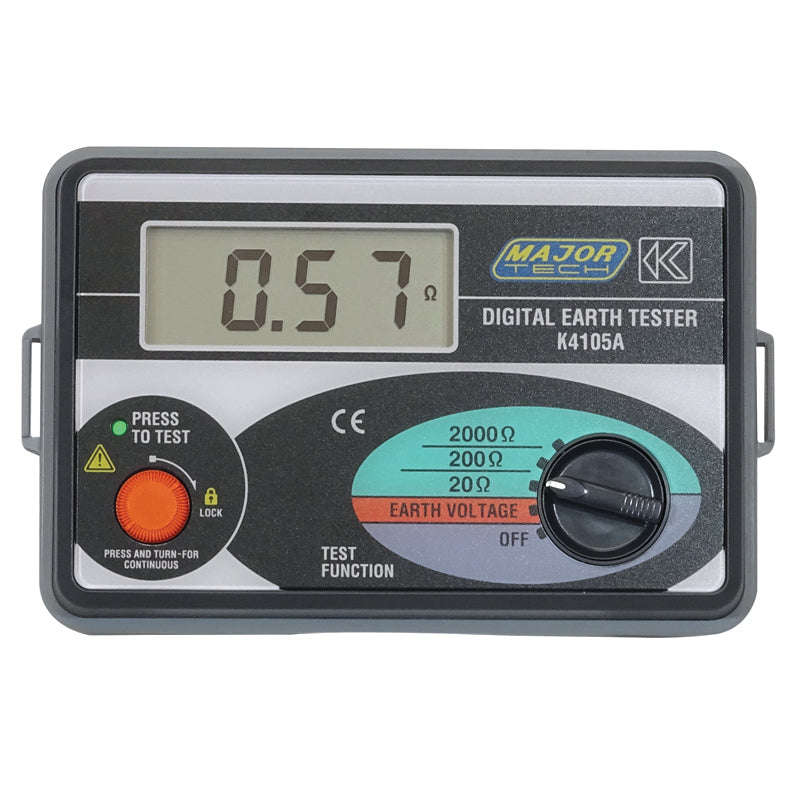

Major Tech Digital Earth Resistance Tester | K4105
DetailsThe K4105 is a digital ultra-compact earth resistance tester housed in a shock resistant IP54 rated dust and drip proof case. The K4105 has a large, easy to read 3½ digit LCD display and is supplied with a carrying case containing all the equipment needed to perform measurements. There is an automatic warning when resistance of auxiliary earth spikes is in excess of tolerance. 3mA Measuring current permits earth resistance tests without tripping the earth leakage current breakers in the circuit under test
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Earth resistance 20Ω | 0.00 to 1999? | 0.001Ω | ± (2.0%+ 0.1Ω) |
| Earth resistance 200Ω | 0.00 to 1999? | 0.001Ω | ± (2.0%+ 3 Digits) |
| Earth resistance 2000Ω | 0.00 to 1999? | 0.001Ω | ± (2.0%+ 3 Digits) |
| Earth voltage | 0.1 - 200V | 0.1V | ± (1.0% + 4 Digits) |
| Test current frequency | 820Hz | ||
| PC interface | Yes | ||
| Display | LCD Display | ||
| Memory | 800 readings | ||
| Back light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6P | ||
| Weight | 550g | ||
| Dimensions | 105 x 158 x 70mm | ||
| Safety specs | IEC61010-1 CAT II 600V and CAT III 300V |
Supplier SKU: K4105
