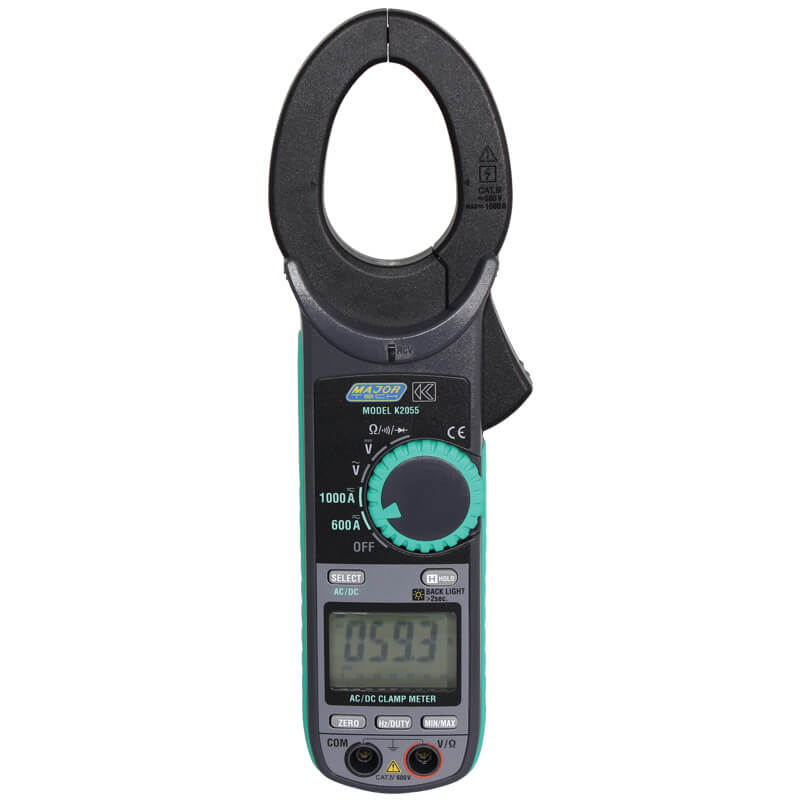

Major Tech 1000A Professional AC/DC Clamp Meter | K2055
DetailsThe K2055 is a CAT IV rated clamp meter with 40mm jaw size that can measure voltage and current in both low and high powered circuits and has the ability to read up to 1000A AC/DC and 600V AC/DC. Included is a Non-Contact voltage detector giving the user warning of the presence of AC Voltage. Part of the K2056R family, this meter is one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A - 1000A | 0.1A | ± (1.5% + 5 Digits) |
| AC Current | 0.1A - 1000A | 0.1A | ± (2.0% + 5 Digits) |
| DC Voltage | 0.1mV - 600V | 0.1mV | ± (1.0% + 3 Digits) |
| AC Voltage | 0.1V - 600V | 0.1V | ± (1.3% + 4 Digits) |
| Frequency Response | 40Hz to 400Hz (AC Bandwidth) | ||
| Resistance | 0.1Ω - 60MΩ | 0.1Ω | ± (1.0% + 5 Digits) |
| Frequency | 0.1Hz - 10kHz | 0.1Hz | ± (0.5% + 5 Digits) |
| Duty Cycle | 0.1 to 99.9% | 0,001 | ± (2.5% + 5 Digits) |
| Digital Display | 6039 | ||
| Bargraph | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Jaw size | 40mm | ||
| Input impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R03 | ||
| Weight | 310g | ||
| Safety Specs | IEC61010-1 CAT III 1000V and CAT IV 600V |
Supplier SKU: K2055
