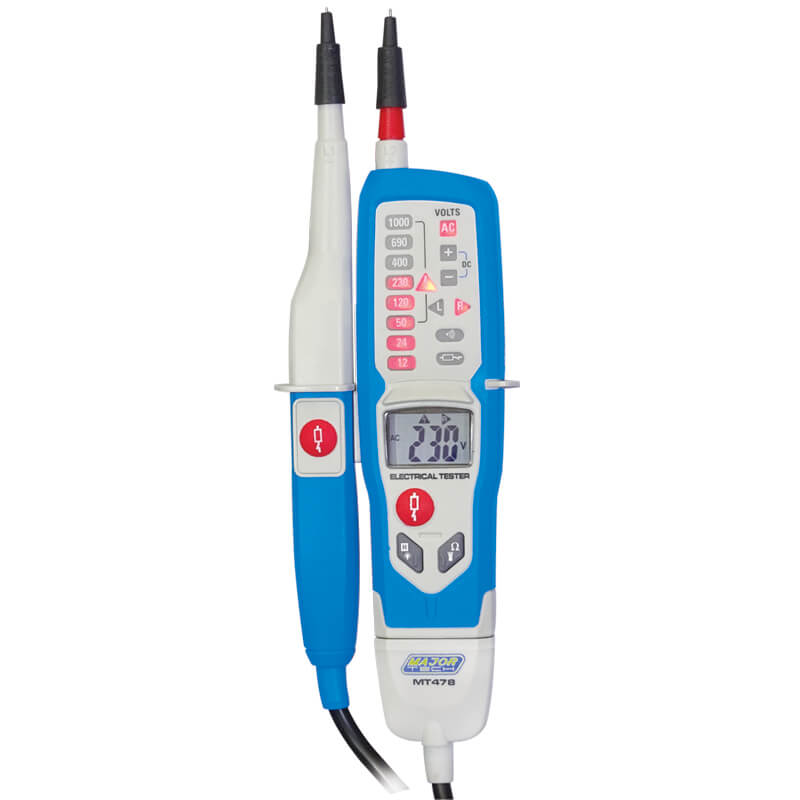

Major Tech 1000V AC/DC Voltage Tester | MT478

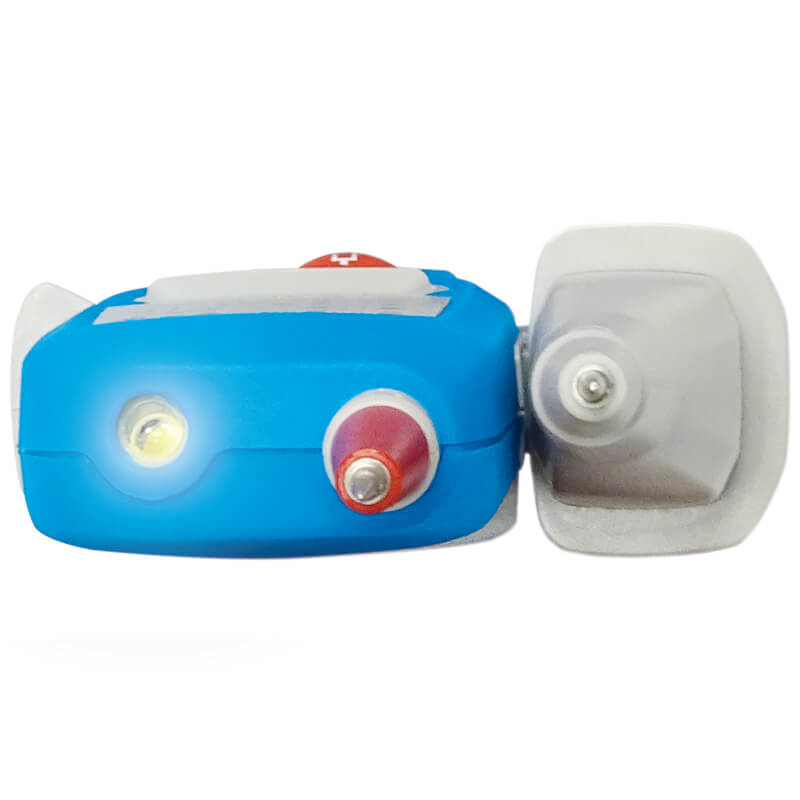

DetailsThe MT478 is a 2-Pole voltage, continuity and phase tester with rapid LED indication of voltage levels. The backlit LCD display offers the user accurate voltage measurements. The voltage range is from 12V to 1000V AC/DC on LED indication and 6V to 1000V AC/DC on LCD display. When AC/DC Voltage is detected the meter has three ways to indicate the voltage, visual display (LED and LCD), sound and vibration when the load buttons are pressed. The vibration operates similar to traditional solenoid type voltage testers and meets IEC1010-1 CAT IV 600V safety requirements. The MT478 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test. Other features include a built-in flashlight, Continuity Buzzer and a Diode Test. Made with high quality heavy duty moulded case, a thicker cord with wear indicator and well fitted and durable probe protector.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Voltage | 6 - 1000V | 1V | ± (3.0% + 5 Digits) |
| AC Voltage | 6 - 1000V | 1V | ± (3.0% + 5 Digits) |
| Rotary Field | 100 - 400V | ||
| RCD Test | 30mA@230V | ||
| Resistance | 0-1999Ω | ||
| Continuity Threshold | ≤400kΩ | ||
| AC Bandwidth | 50Hz - 60Hz | ||
| Digital Display | 2000 LCD | ||
| Polarity Indication | Yes | ||
| Overrange Indication | Yes | ||
| Low Input Impedance | |||
| Load Test with Vibration | Max 3.5mA at 1000V | ||
| Flashlight | Yes | ||
| Enclosure | Moulded Case | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 237g | ||
| Dimensions | 240 x 78 x 30mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
