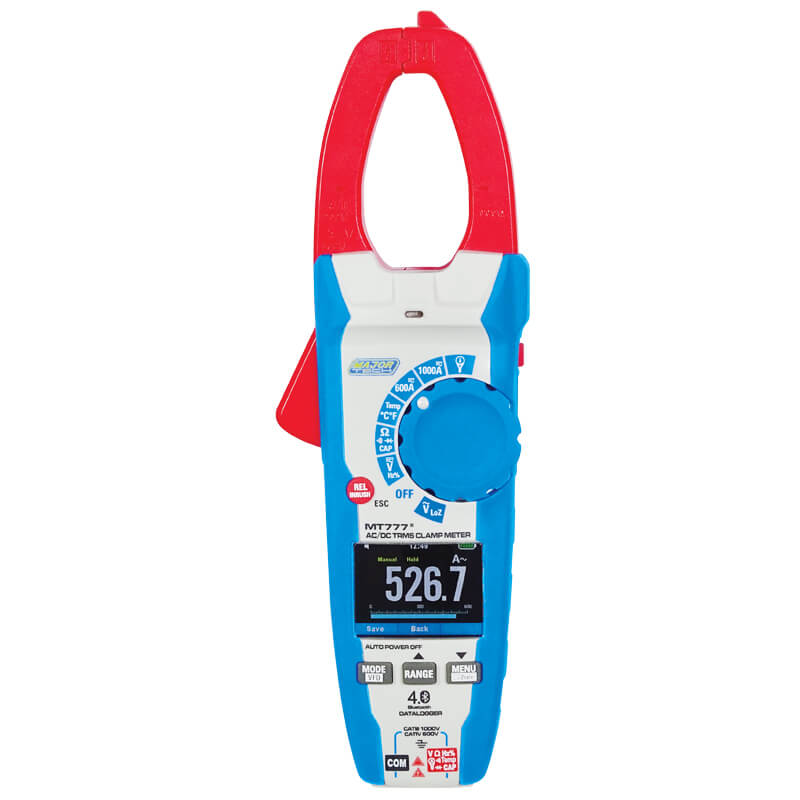

Major Tech 1000A AC/DC TRMS Bluetooth Clamp Meter | MT777
DetailsThe MT777 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with an analogue bargraph indication on a TFT colour display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter
to eliminate errors caused by “Ghost” voltages. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, 100ms Inrush current and Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can be extended to measure 3000A AC. Added features are Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A – 1000A | 0.1A | ±(2.5% + 5 Digits) |
| AC Current | 0.1A – 1000A | 0.1A | ±(2.5% + 5 Digits) |
| DC Voltage | 0.1mV – 1000V | 0.1mV | ±(1.5% + 5 Digits) |
| AC Voltage | 1mV – 1000V | 1mV | ±(1.5% + 5 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ±(1.5% +5 Digits) |
| Frequency | 0.01Hz – 99.99kHz | 0.01Hz | ±(1.2% +5 Digit) |
| Capacitance | 0.01nF – 100mF | 0.01nF | ±(3.0% + 8 Digits) |
| Temperature | -40 to 1000°C | 0.1°C | ±(1.5% + 5°C Digits) |
| Duty Cycle | 10% to 90% | 0.001 | ±(1.2% + 8 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50 – 400Hz | ||
| Digital Display | TFT Colour LCD Display | ||
| Bargraph | Yes | ||
| Records Events And Trends | Yes | ||
| Data Logging | Yes | ||
| Bluetooth | Bluetooth 4.0 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 33mm | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Low Frequency Input | Yes | ||
| Min Max | Yes | ||
| Peak Hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low Battery Indication | Yes | ||
| Power Source | 3 x AAA | ||
| Weight | 350g | ||
| Dimensions | 250 x 78 x 40mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
