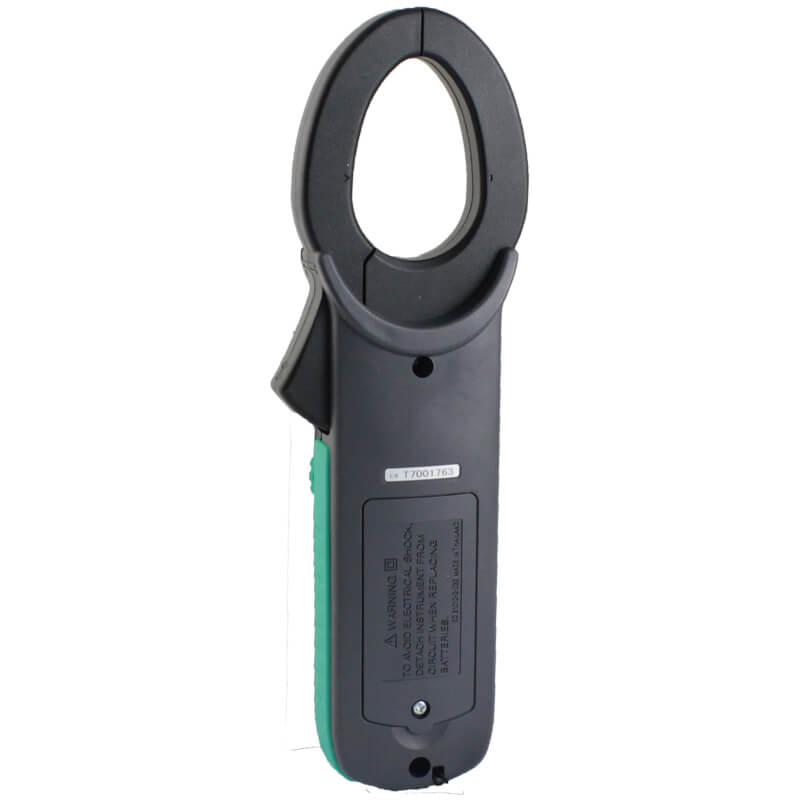

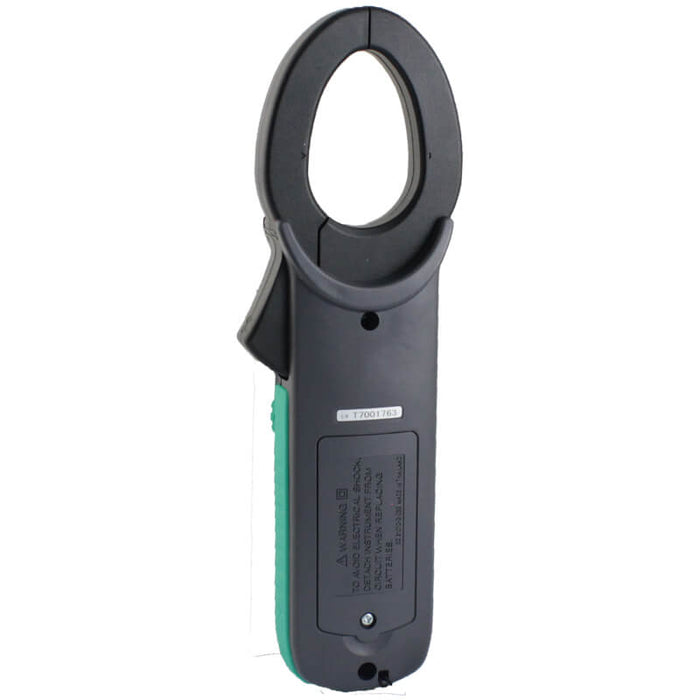

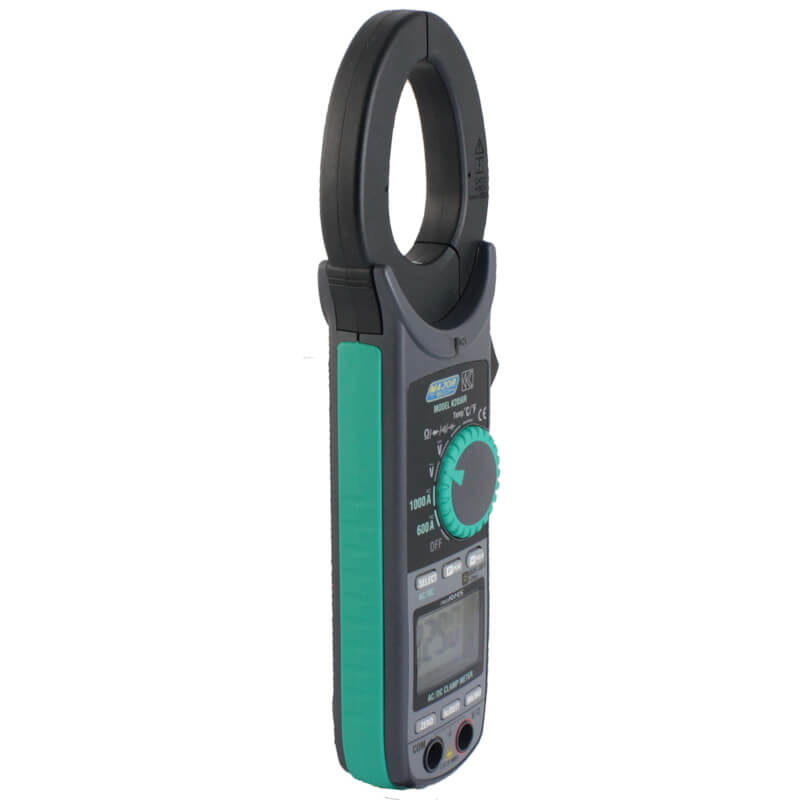

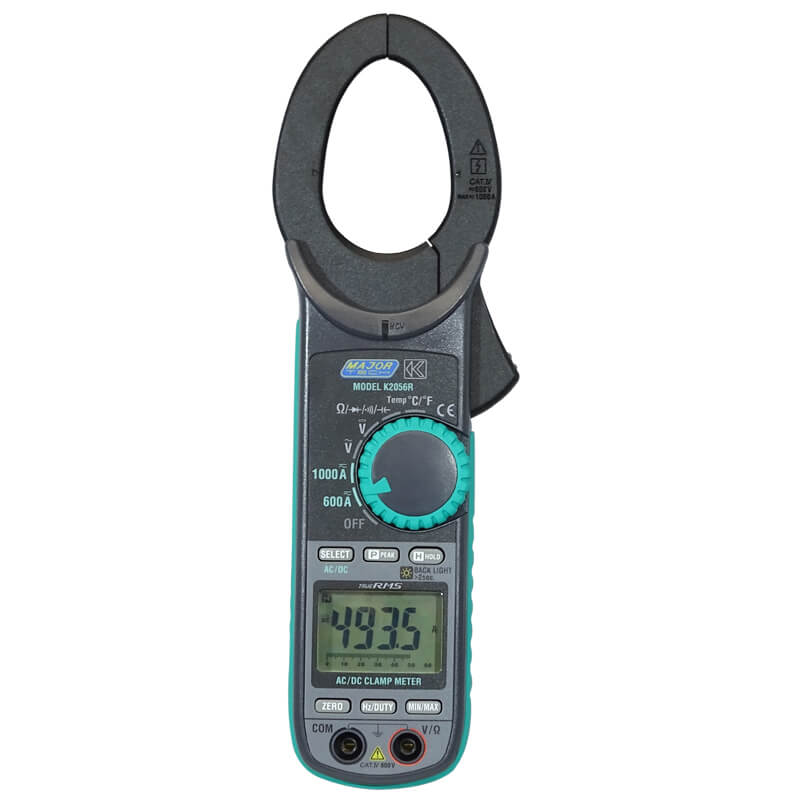

Major Tech 1000A Professional AC/DC True RMS Clamp Meter | K2056R
DetailsThe K2056R is one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes. As electrical distribution systems become more complex, the chances of voltage spikes are always increasing, and these spikes are superimposed to normal mains voltage waveform. The instrument is not purposely designed to withstand these high voltage spikes, it will blow and a potential arc blast can create a life threatening situation for the end user. The K2056R is a digital clamp meter with the capability to read current up to 1000A AC/DC. The K2056R model features the ability to utilize True RMS measurements, providing greater accuracy on non-sinusoidal waveforms, thus useful for power distribution companies, power utilities and maintenance fields.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Current | 0.1A - 1000A | 0.1A | ± (1.5% + 5 Digits) |
| AC Current | 0.1A - 1000A | 0.1A | ± (2.0% + 5 Digits) |
| DC Voltage | 0.1mV - 600V | 0.1mV | ± (1.0% + 3 Digits) |
| AC Voltage | 0.1V - 600V | 0.1V | ± (1.5% + 4 Digits) |
| Frequency Response | 40Hz to 400Hz (AC Bandwidth) | ||
| Resistance | 0.1Ω - 60MΩ | 0.1Ω | ± (1.5% + 5 Digits) |
| Frequency | 0.1Hz - 10kHz | 0.1Hz | ± (0.5% + 5 Digits) |
| Capacitance | 0.01μF - 4000μF | 0.01μF | ± (2.5% + 20 Digits) |
| Temperature | -50°C to 700°C | 1°C | ± (5.0°C + 3 Digits) |
| Duty Cycle | 0.1 to 99.9% | 0,001 | ± (2.5% + 5 Digits) |
| Digital Display | 6039 | ||
| Bargraph | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Jaw size | 40mm | ||
| Input impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min/Max | Yes | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R03 | ||
| Weight | 310g | ||
| Safety Specs | IEC61010-1 CAT III 1000V and CAT IV 600V |
