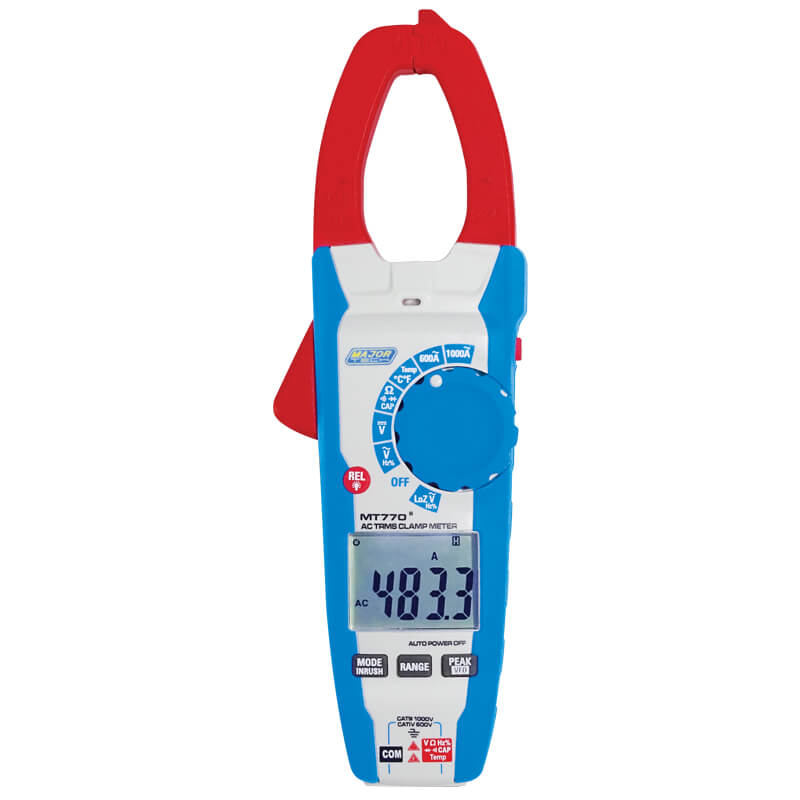

Major Tech 1000A AC True RMS Clamp Meter | MT770

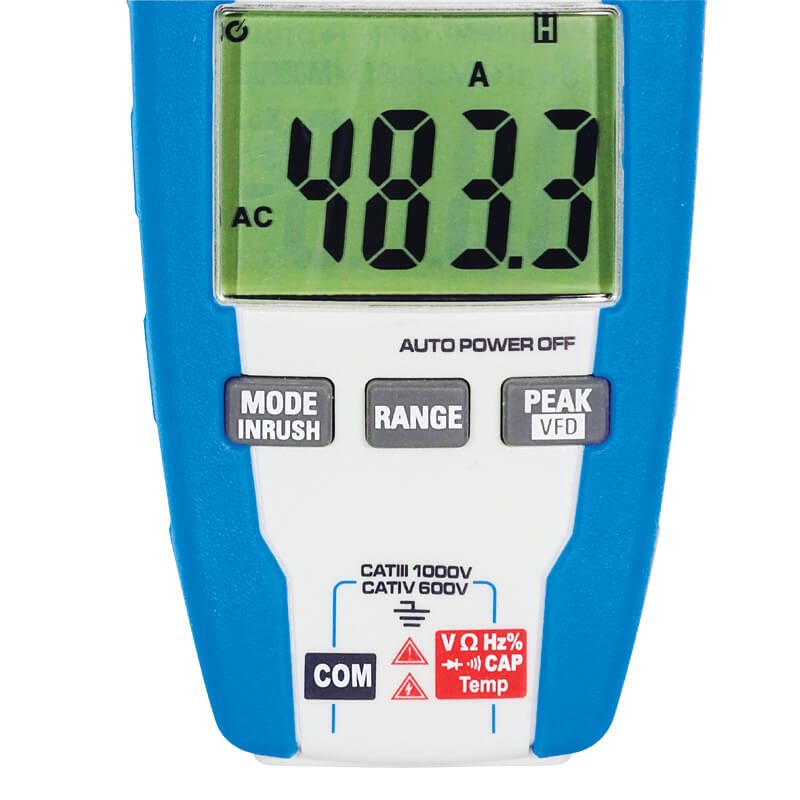

DetailsThe MT770 is a CAT IV 600V, 6000 count True RMS 1000A AC digital clamp meter with indication on a large backlit LCD display, providing fast
sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements,
100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of
Variable Frequency Drives, while the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. Added features
include Relative mode for Capacitance Zero, DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a
built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1A – 1000.0A | 10mA | ±(2.5% + 8 Digits) |
| DC Voltage | 0.1mV – 1000V | 1mV | ±(1.5% + 2 Digits) |
| AC Voltage | 1mV – 1000V | 1mV | ±(1.5% + 5 Digits) |
| Resistance | 0.1Ω – 60.00MΩ | 0.1Ω | ±(1.5% + 2 Digits) |
| Frequency | 0.001Hz – 99.99kHz | 0.01Hz | ±(1.2% + 5 Digits) |
| Capacitance | 0.01nF – 100mF | 0.01nF | ±(3.0% + 5 Digits) |
| Temperature | -20 to 1000°C | 0.1°C | ±(3.0% + 5°C Digits) |
| Duty Cycle | 10% to 90% | 0.001 | ±(1.2% + 2 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 50 – 400Hz | ||
| Digital Display | 6000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 33mm | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Low Frequency Input | Yes | ||
| Min Max | Yes | ||
| Peak Hold | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 3 x AAA | ||
| Weight | 350g | ||
| Dimensions | 250 x 70 x 40mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
