Major Tech 1000V AC/DC IP67 True RMS Multimeter | MT1877

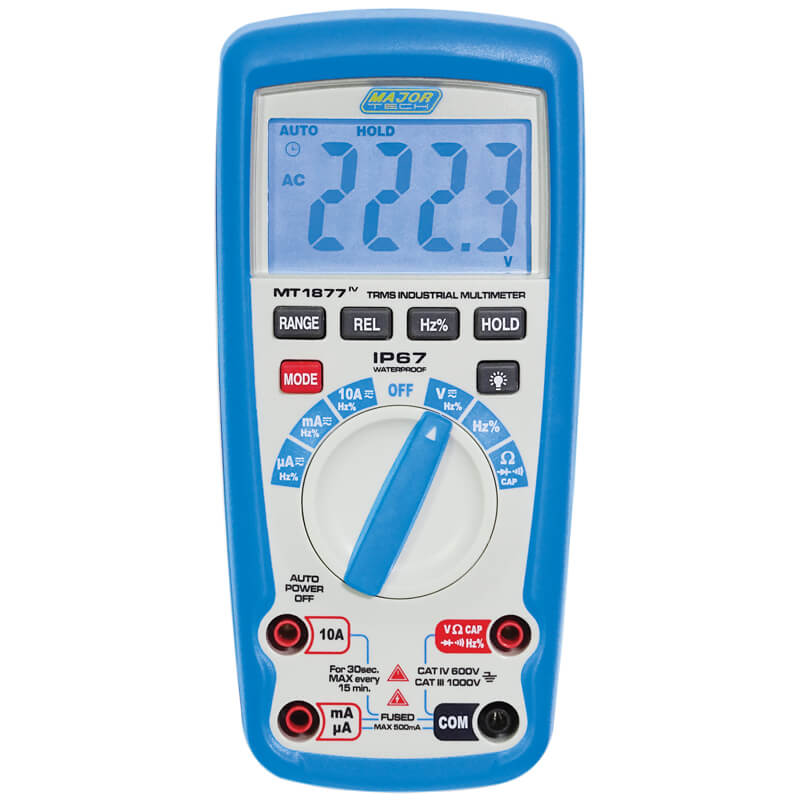

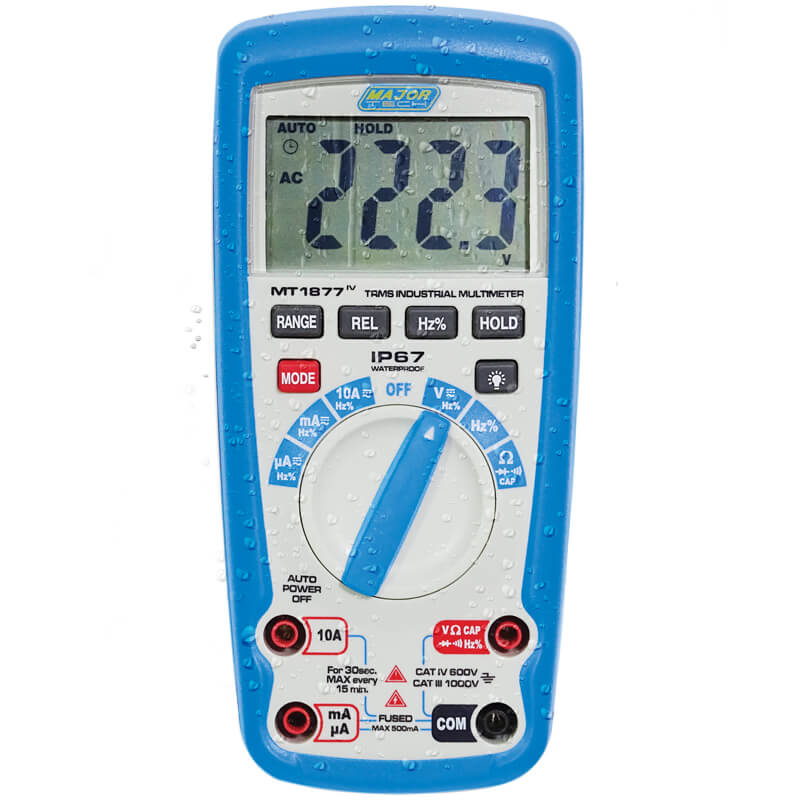

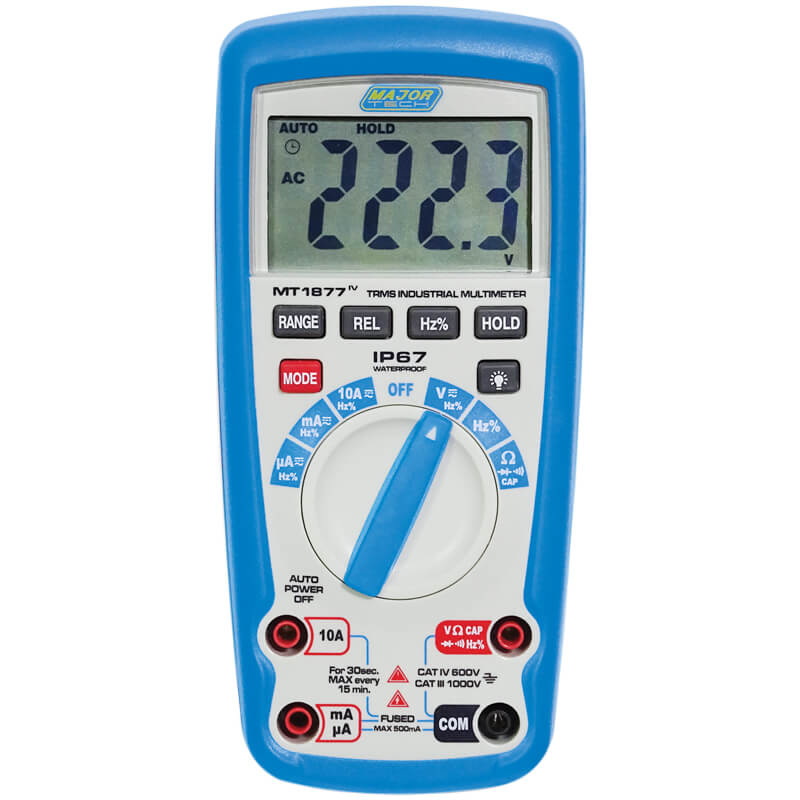

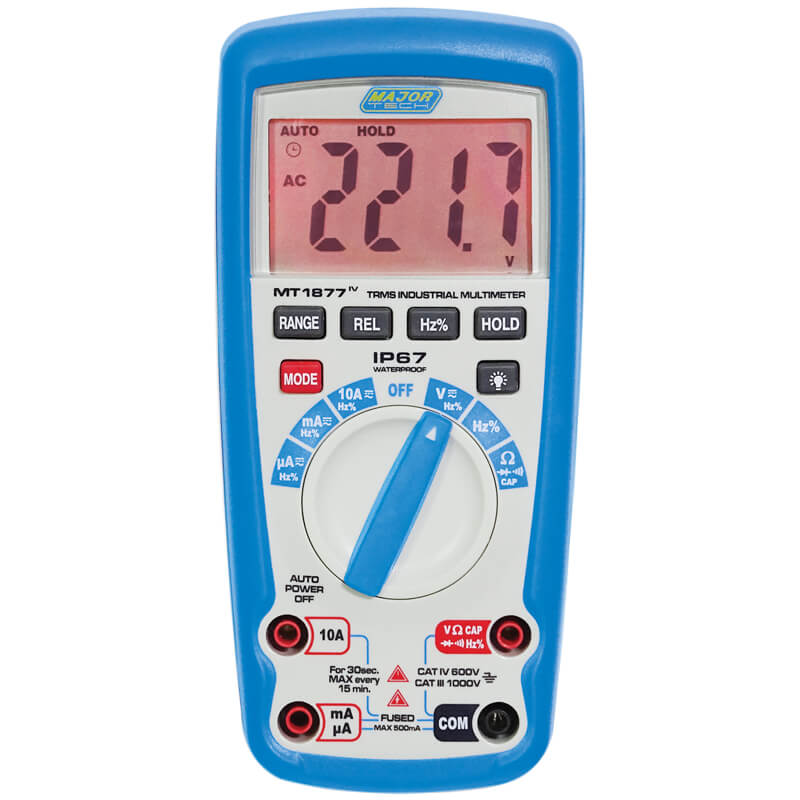

DetailsThe MT1877 DMM is a 4000 count True RMS auto ranging multimeter, with manual override. This meter offers a great feature of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances. This meter ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally. This meter is housed in a double moulded rubber casing with an IP67 waterproof design which is perfect for technicians in maintenance, facility maintenance, installation and production equipment maintenance.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 1000V | 0.1mV | ± (0.5% + 5 Digits) |
| AC voltage | 1mV – 1000V | 0.1mV | ± (0.8% + 8 Digits) |
| DC Current | 0.1μA – 10A | 0.1μA | ± (1.0% + 3 Digits) |
| AC Current | 0.1μA – 10A | 0.1μA | ± (1.5% + 3 Digits) |
| Duty Cycle | 0.1 to 99.9% | 0,1% | ± (1.2% + 2 Digits) |
| Resistance | 0.1Ω – 40.00MΩ | 0.1Ω | ± (0.8% + 2 Digits) |
| Frequency | 0.001Hz – 10.00MHz | 0.001Hz | ± (1.0% + 5 Digits) |
| Capacitance | 10nF – 99.99mF | 10pF | ± (4.0% + 5 Digits) |
| AC Bandwidth | 50Hz to 1KHz | ||
| Digital Display | 4000 | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & >10MΩ VAC | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded waterproof IP67 | ||
| Low battery indication | Yes | ||
| Power source | 6LR61 | ||
| Weight | 375g | ||
| Dimensions | 182 x 82 x 55mm | ||
| Safety Specs | IEC61010-1 CatIV 600V |
Supplier SKU: MT1877
