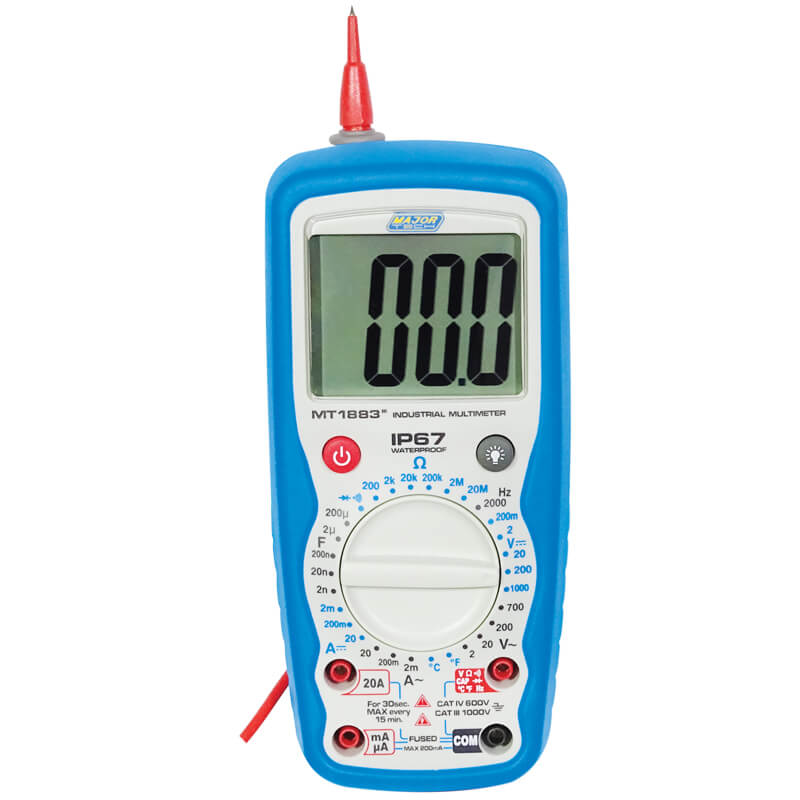

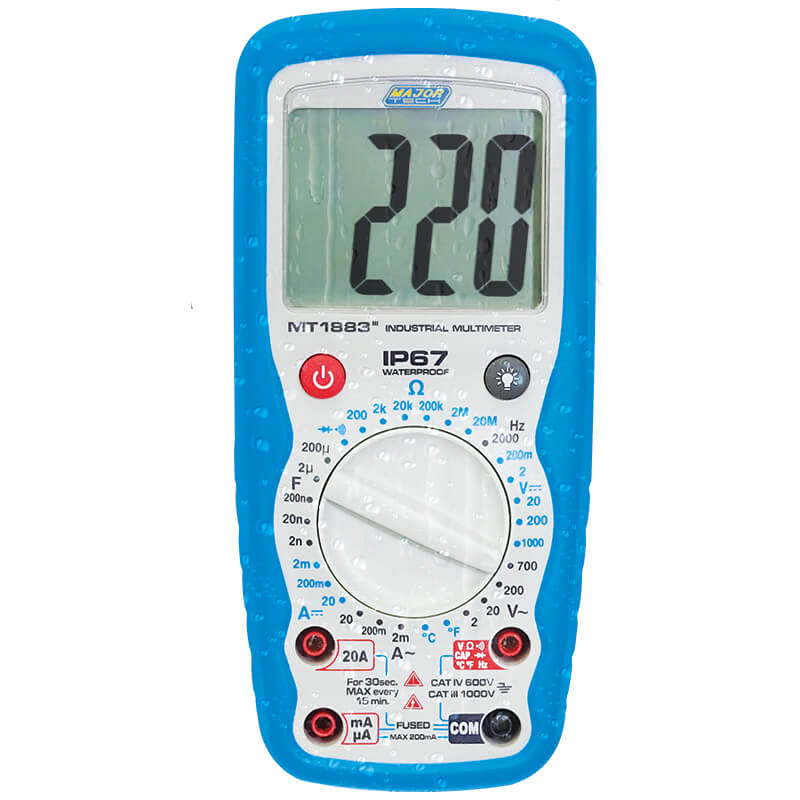

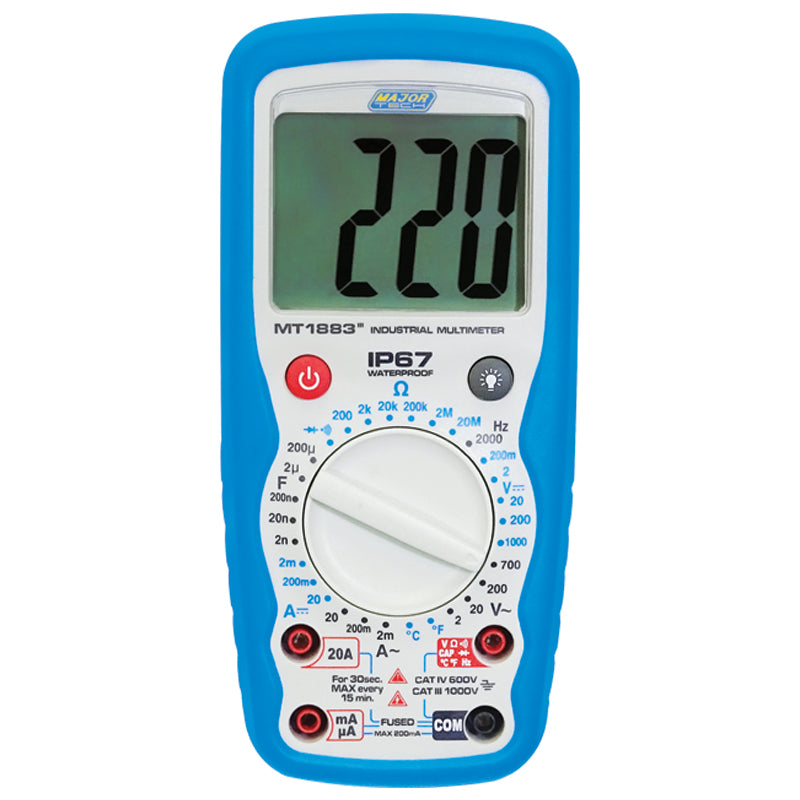

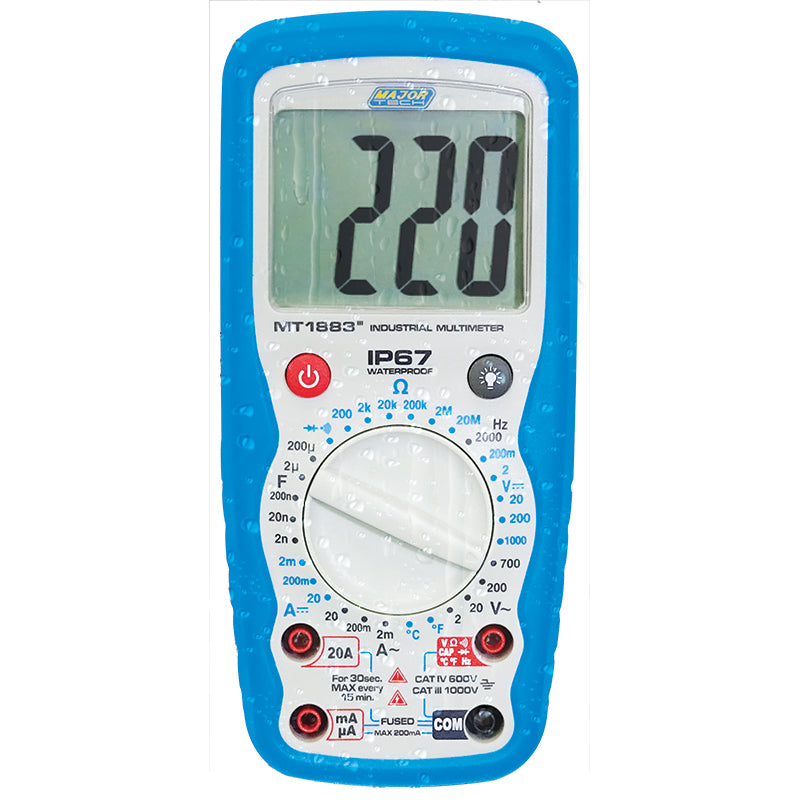

Major Tech General Purpose Multimeter | MT1883
DetailsThe MT1883 is an average reading 2000 count manual range DMM and has a large backlit LCD display. The meter measures AC voltage up to 700V and DC voltage up to 1000V, fused AC and DC current up to 20 Amps, temperature measurement in °C or °F, resistance, frequency measurement, capacitance measurement, a diode test function and continuity buzzer. The meter measures AC voltage and current for the frequency range of 50Hz to 400Hz. The MT1883 is the first choice for electronic technicians and electricians, including students studying electronics.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC voltage | 0.1mV – 1000V | 0.1mV | ± (0.5% + 2 Digits) |
| AC voltage | 1mV – 700V | 0.1mV | ± (1.0% + 3 Digits) |
| DC Current | 0.1μA – 20A | 10mA | ± (1.5% + 3 Digits) |
| AC Current | 0.1μA – 20A | 10mA | ± (2.5% + 10 Digits) |
| Resistance | 0.1Ω – 20.00MΩ | 0.1Ω | ± (1.2% + 2 Digits) |
| Frequency | 1Hz - 2000kHz | 1Hz | ± (1.5% + 5 Digits) |
| Capacitance | 1nF – 200μF | 1pF | ± (4.0% + 3 Digits) |
| Temperature | -20°C to 760°C | 1°C | ± (3.0% + 5 Digits) |
| AC Bandwidth | 50Hz to 400Hz | ||
| Digital Display | 2000 | ||
| Continuity | Yes | ||
| Diode test | Yes | ||
| Overrange indication | Yes | ||
| Input impedance | >10MΩ VDC & >9MΩ VAC | ||
| Min Max | Yes | ||
| Enclosure | Double moulded waterproof IP67 | ||
| Low battery indication | Yes | ||
| Power source | 6LF22 | ||
| Weight | 375g | ||
| Dimensions | 182 x 81 x 50mm | ||
| Safety Specs | IEC61010-1 CatIV 600V |
Supplier SKU: MT1883
Brand
Major Tech
Title
Major Tech General Purpose Multimeter | MT1883
