Major Tech 1000V AC/DC Voltage Tester | MT473

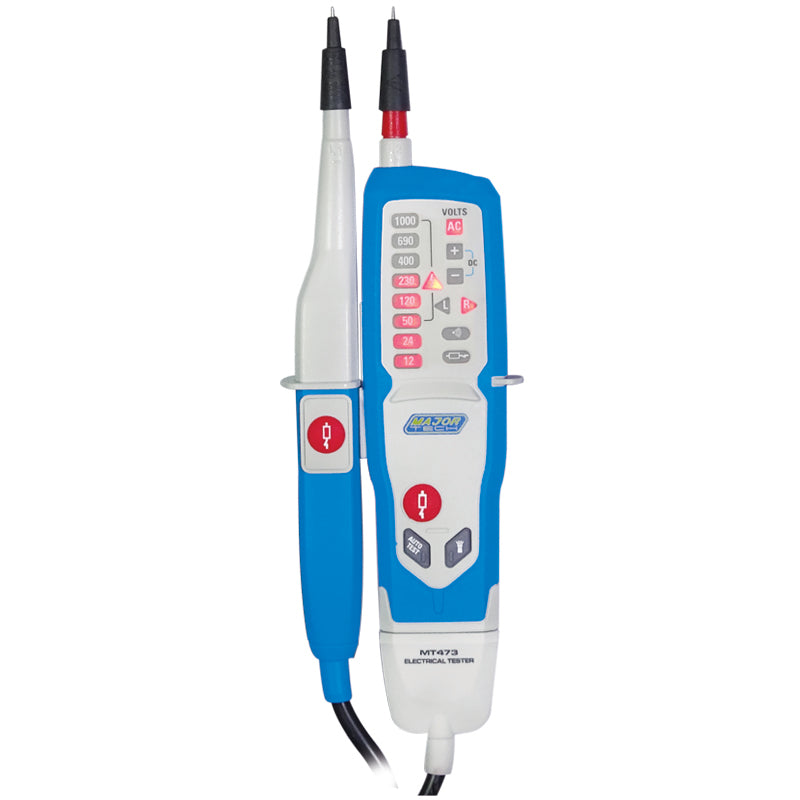

DetailsThe MT473 is a 2-Pole voltage, continuity and phase tester with rapid LED indication of voltage levels. The voltage range is from 12V to 1000V AC/DC on LED indication. When AC/DC Voltage is detected the meter has three ways to indicate the voltage, by LED visual display, sound and
vibration when the load buttons are pressed. The vibration operates similar to traditional solenoid type voltage testers and meets IEC1010-1

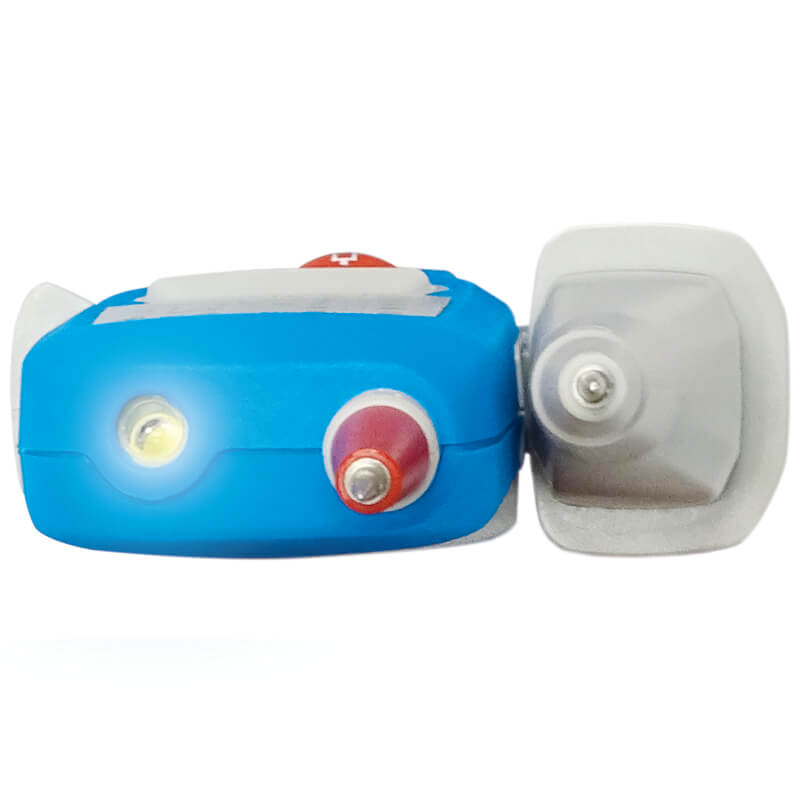

CAT IV 600V safety requirements. The MT473 has a rotary field detection for testing 3-Phase systems as well as a single pole Phase Test. Other features include a built-in flashlight, Continuity Buzzer and a Diode Test. Made with high quality heavy duty molded IP64 case, a thicker cord

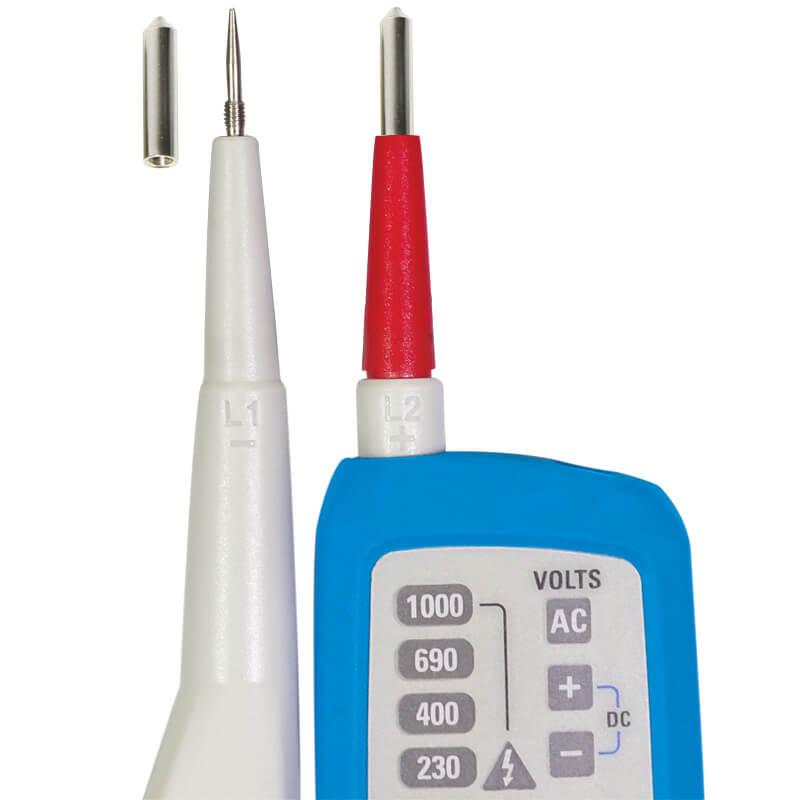

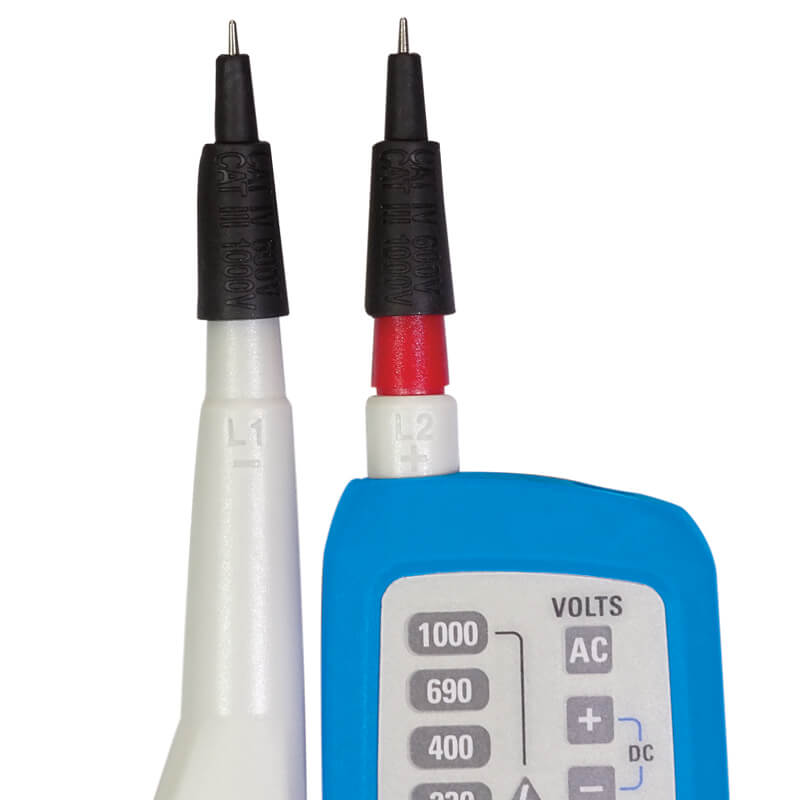

with wear indicator and well fitted and durable probe protector.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC Voltage | 12V to 1000V | 1V | ±(3.0% + 5 Digits) |
| AC Voltage | 12V to 1000V | 1V | ±(3.0% + 5 Digits) |
| Rotary Field | 100V – 400V | ||
| Voltage Test with Load | 7kΩ | ||
| RCD Test | 30mA@230V | ||
| Continuity | Yes | ||
| Continuity Threshold | ≤400kΩ | ||
| AC Bandwidth | 50Hz – 60Hz | ||
| Polarity Indication | Yes | ||
| Overrange Indication | Yes | ||
| Load Test with Vibration | Max 3.5mA at 1000V | ||
| Low Input Impedance | |||
| Flashlight | Yes | ||
| Enclosure | Moulded Case | ||
| Low Battery Indication | Yes | ||
| Power Source | 2 x AAA | ||
| Weight | 237g | ||
| Dimensions | 240 x 78 x 30mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
Supplier SKU: MT473
Brand
Major Tech
Title
Major Tech 1000V AC/DC Voltage Tester | MT473
