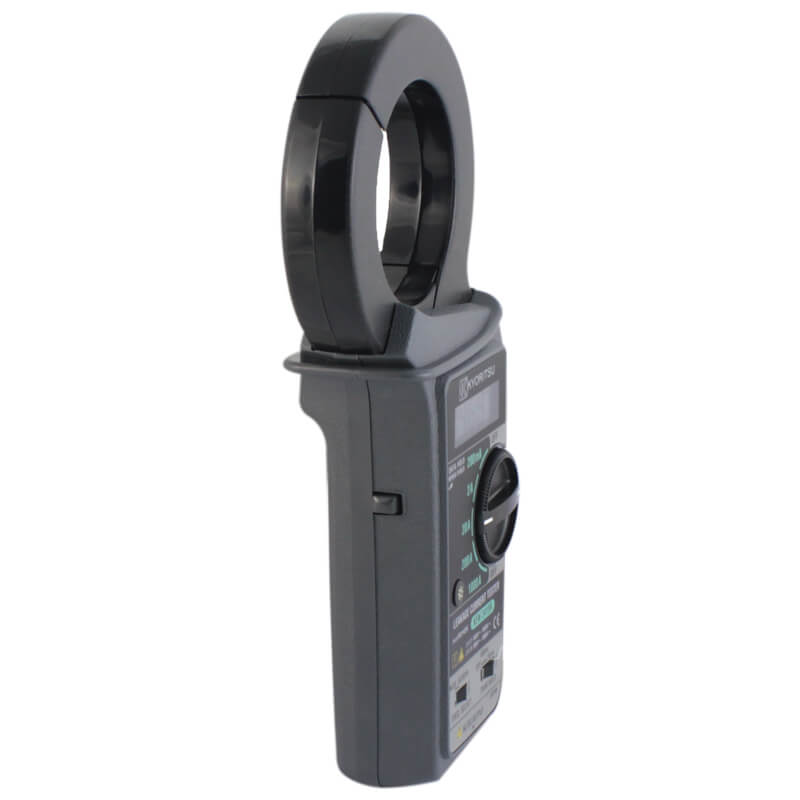

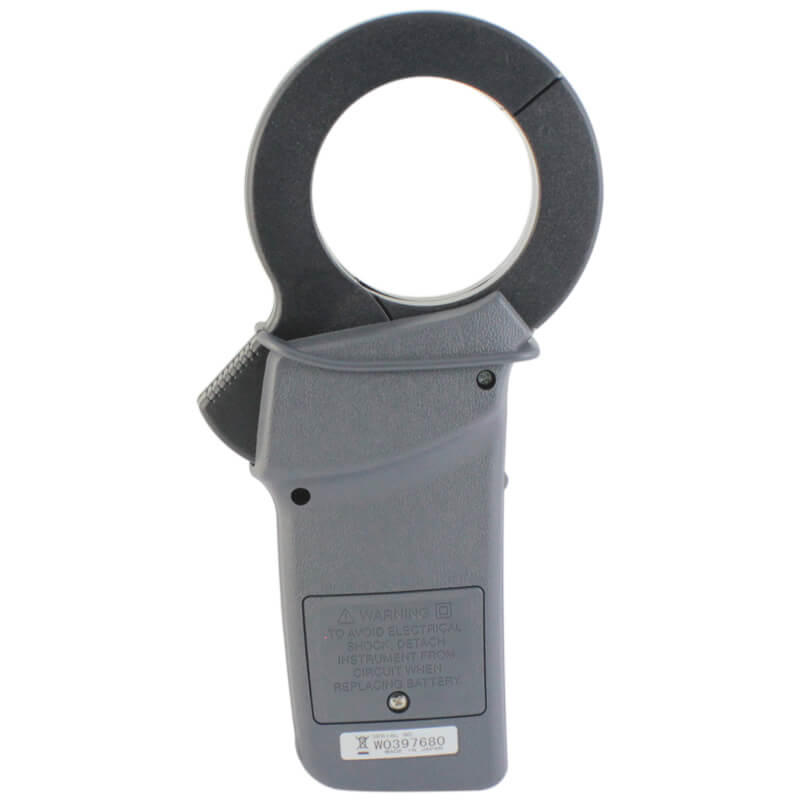

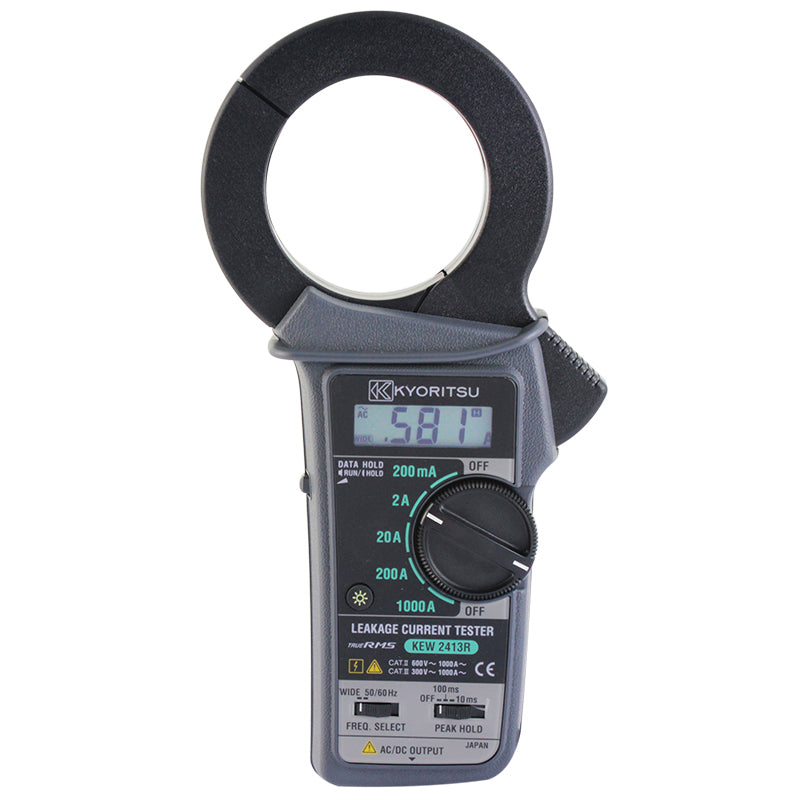

Major Tech 1000A AC True RMS Leakage Clamp Meter | K2413R
DetailsThe K2413R is a versatile and innovative digital clamp meter designed for both very low and high current measurements, making it an ideal tool for a wide range of industrial and commercial applications. With its unique features, the K2413R allows accurate measurement of leakage currents, from as low as 0.1 mA to as high as 1000A AC. Its shielded transformer jaws reduce the effect of external stray magnetic fields, ensuring reliable and precise measurements, even in electrically noisy environments. This clamp meter provides a high-frequency response of over 1 kHz on all measurement ranges, allowing it to accurately capture dynamic signals, including those from modern electronic devices like inverters. The integrated low-pass filter, controlled via a frequency selector switch, enables users to focus measurements on the fundamental frequency (50/60Hz) or across a wide frequency spectrum, depending on the requirements of the application.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1mA - 1000A | 0.1mA | ± (1% ± 2 Digits) |
| AC Output | 0.1mV- 200mV | 1mV | ± (2.0% ± 0.5mV) |
| DC Output | 0.1mV- 200mV | 1mV | ± (3.5% ± 0.5mV) |
| Crest Factor | ≤3.0 | ||
| True RMS Measurements | ACA | ||
| Frequency Response | 40Hz to 1kHz (AC Bandwidth) | ||
| Digital Display | 2000 | ||
| Data logging | AC/DC Output Terminal | ||
| Overrange indication | Yes | ||
| Jaw size | 68mm | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Peak Hold | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 6F22 | ||
| Weight | 600g | ||
| Dimensions | 250 x 130 x 50mm | ||
| Safety Specs | IEC61010-1 CAT III 300V and CAT II 600V |
Supplier SKU: K2413R
