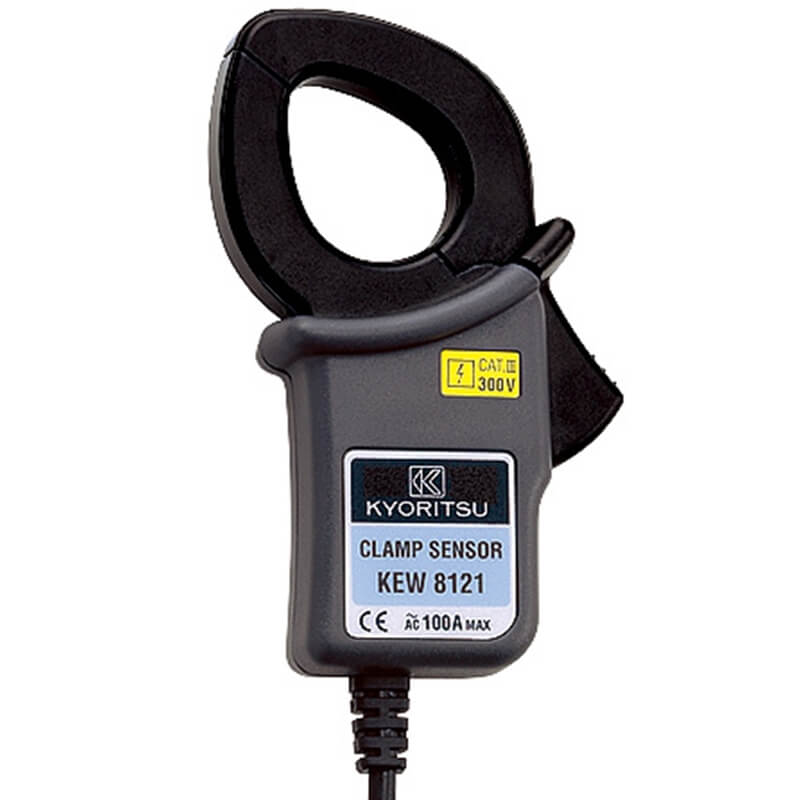

Major Tech Load Current Clamp | K8121
DetailsOption Extra for the K5010 and K5020
Specifications
Specifications:| Function | Range |
| Conductor Size | Ø24mm |
| Rated Current | 100A |
| Current accuracy | ± (2.0%±0.3mV) |
| Frequency | 40-1KHz |
| Output Voltage | 500mV (100A, 5mV/A) |
| Cable Length | 2 meters |
| Output Impedance | 9.5Ω or less |
| Applicable Models | K5010, K5020 |
| Weight | 150g |
| Dimensions | 97 x 59 x 26mm |
| Safety Specs | IEC 61010-1 CATIII 300V |
Supplier SKU: K8121
Brand
Major Tech
Title
Major Tech Load Current Clamp | K8121
