Major Tech 10kV High Voltage Insulation Tester | K3123

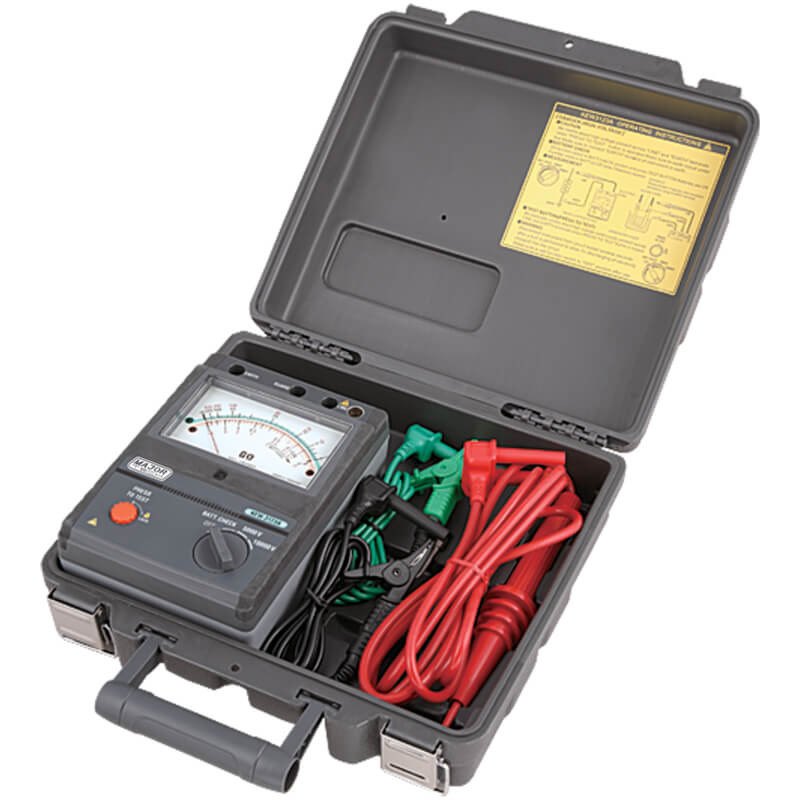

DetailsThe K3123 is a High Voltage Insulation tester that is a tough, rugged meter designed and manufactured to read accurate measurements in harsh environments. This model is gasket sealed to prevent ingress of liquids and dust and is supplied with a water resistant, heavy duty case. This K3123 HV insulation tester is ideal for heavy duty maintenance and servicing of industrial installations, cables, transformers, generators and switchgear. It is supplied with the appropriate leads for connecting to the earthed and conducting points of the circuit under test. The rated output voltage is maintained down to 0,1% of the tester’s full scale resistance, permitting accurate measurements of even low insulation resistance.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Insulation resistance 5000V | 5000V | 0.2V | ± (5.0%) |
| Insulation resistance 10000V | 10000V | 0.4V | ± (5.0%) |
| Short circuit current | 0.08mA | ||

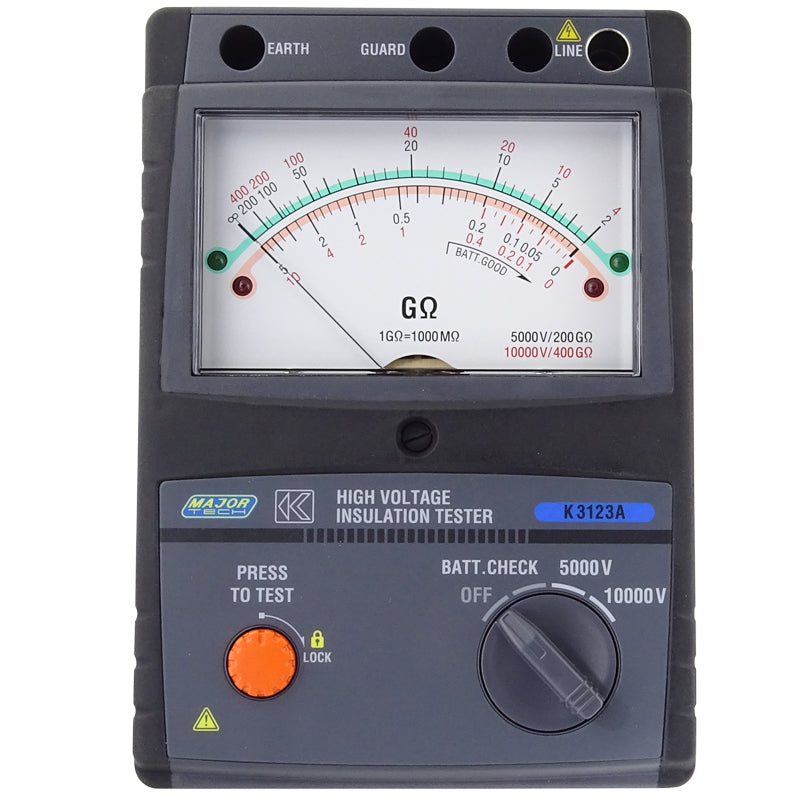

| Display | High/Low scales analogue display | ||
| Auto discharge | Yes | ||
| Enclosure | Robust moulded case | ||
| Power source | 8 x LR6 | ||
| Weight | 1kg | ||
| Dimensions | 200 x 140 x 80mm | ||
| Safety Specs | IEC61010-1 CAT II 600V and CAT III 300V |
Supplier SKU: K3123
Brand
Major Tech
