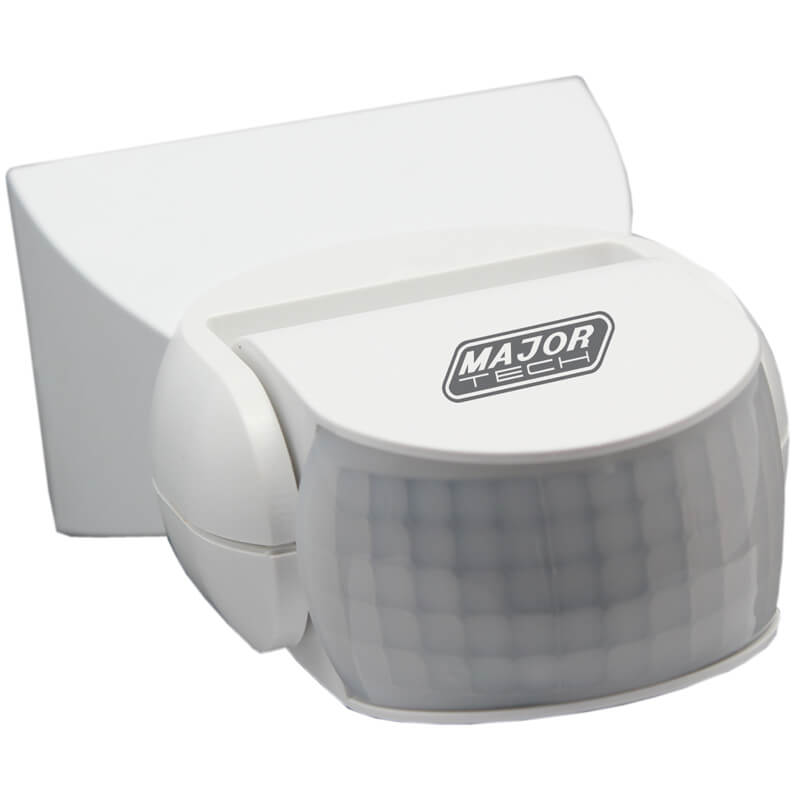

Major Tech 180° PIR Motion Sensor - IP65 | PIR44
DetailsThe PIR44 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 180° detection range and adjustable settings, easily integrating into new or existing installations. With an IP65 rating, it can be installed indoors or outdoors. Installation must be done by a qualified electrician.
Application:
Major Tech PIR Sensor is ideal for homes, offices and hotels
The main applications include corridors, pathways, bathrooms and lobbies
Specifications
Specifications:| Function | Range |
| Detection Area | 180° |
| Detection Distance | 12m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light |
|
| Installation Height |
1.8m – 2.5m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
1200W 600W |
| Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
| Power Consumption |
|
| Swivel Head | 45° - Left to Right 180° - Up/Down |
| Mounting | Ceiling & Wall Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP65 (Outdoor & Indoor Installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: PIR44
Brand
Major Tech
