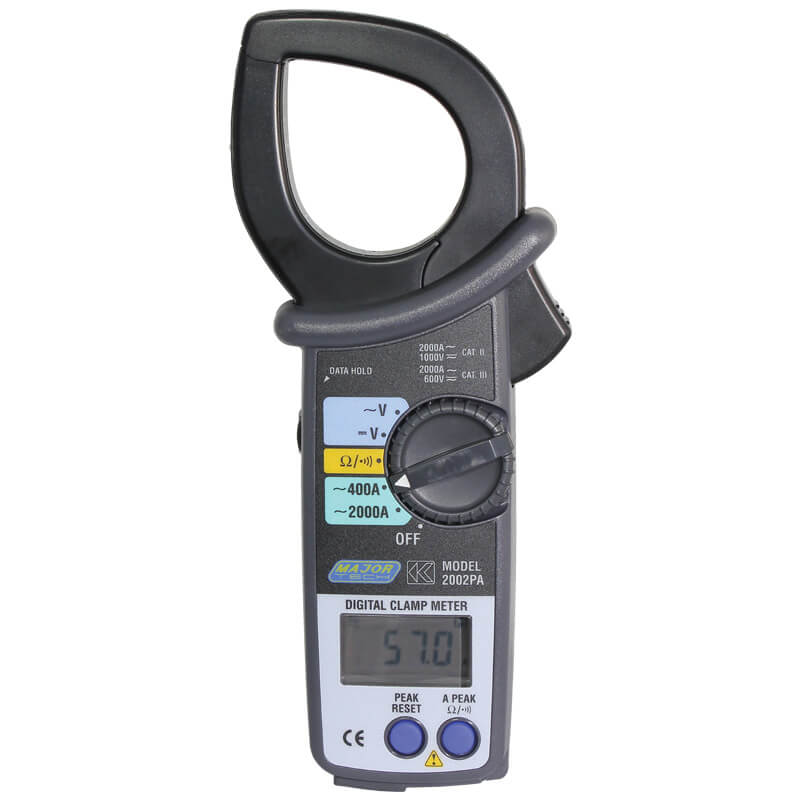

Major Tech 2000A Professional AC Clamp Meter | K2002PA
DetailsThe K2002PA is a CAT III 600V, 4000 count 2000A AC digital clamp meter, with a tear drop clamp jaw size of 55mm. This tear drop jaw is designed to assist in the ease of measuring current in crowded cable areas. The meter is a valuable tool for electrical engineers and electrical contractors as it has a wide frequency response and features peak hold that allows the user to measure peak values of current.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1A - 2000A | 0.1A | ± (1.0% + 3 Digits) |
| DC Voltage | 0.1V - 1000V | 0.1V | ± (1.0% + 2 Digits) |
| AC Voltage | 0.1V - 750V | 0.1V | ± (1.0% + 2 Digits) |
| Resistance | 0.1Ω - 400KΩ | 0.1Ω | ± (1.5% + 2 Digits) |
| AC Bandwidth | 40Hz to 1kHz | ||
| Digital Display | 4000 | ||
| Data logging | Output terminal | ||
| Overrange indication | Yes | ||
| Continuity | Yes | ||
| Jaw size | 55mm | ||
| Input impedance | >2MΩ DCV & >2MΩ VAC | ||
| Peak hold | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 2 x R6P | ||
| Weight | 470g | ||
| Safety Specs | IEC61010-1 CAT III 600V and IEC61010-1 CAT II 1000V |
Supplier SKU: K2002PA
Brand
Major Tech
Title
Major Tech 2000A Professional AC Clamp Meter | K2002PA
