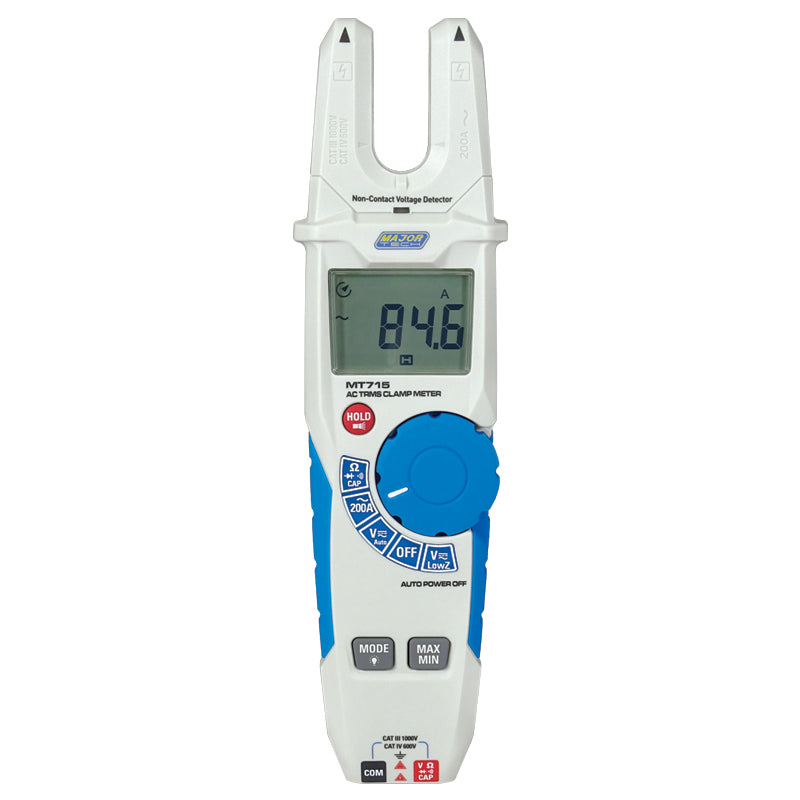

Major Tech 200A AC Open Jaw TRMS Clamp Meter | MT715

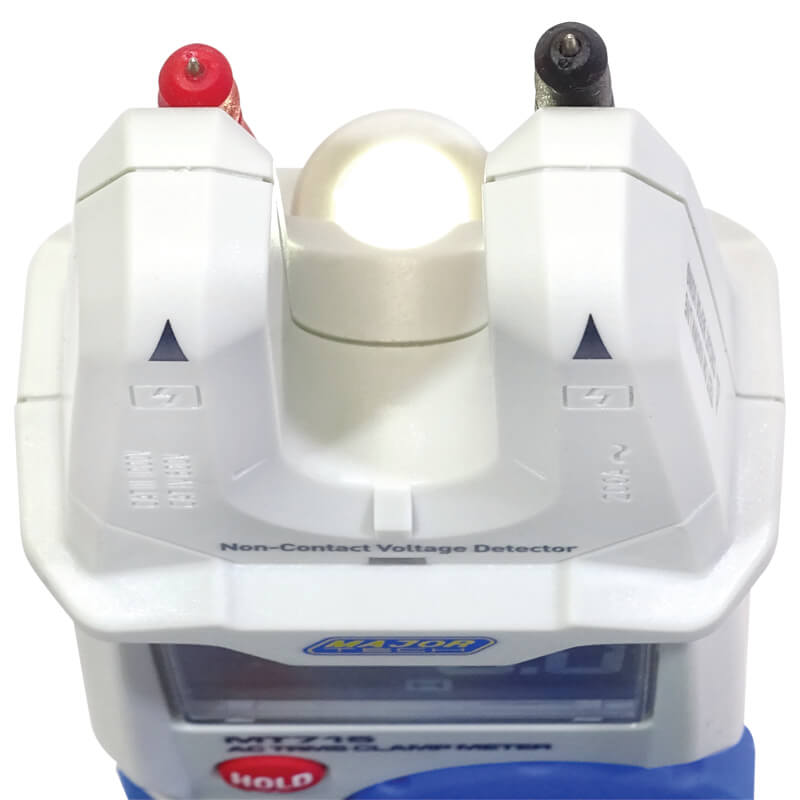

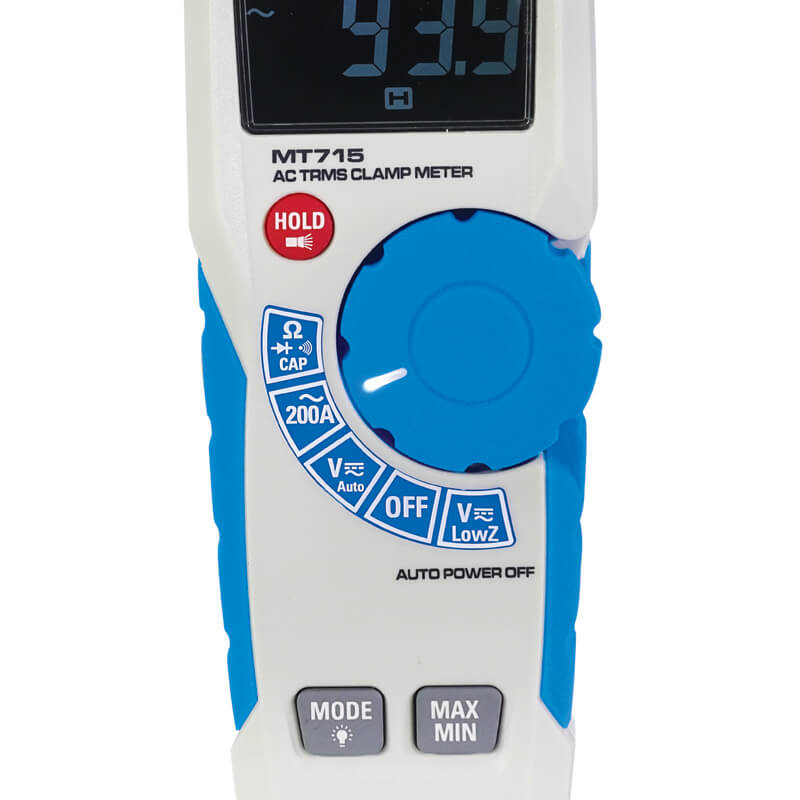

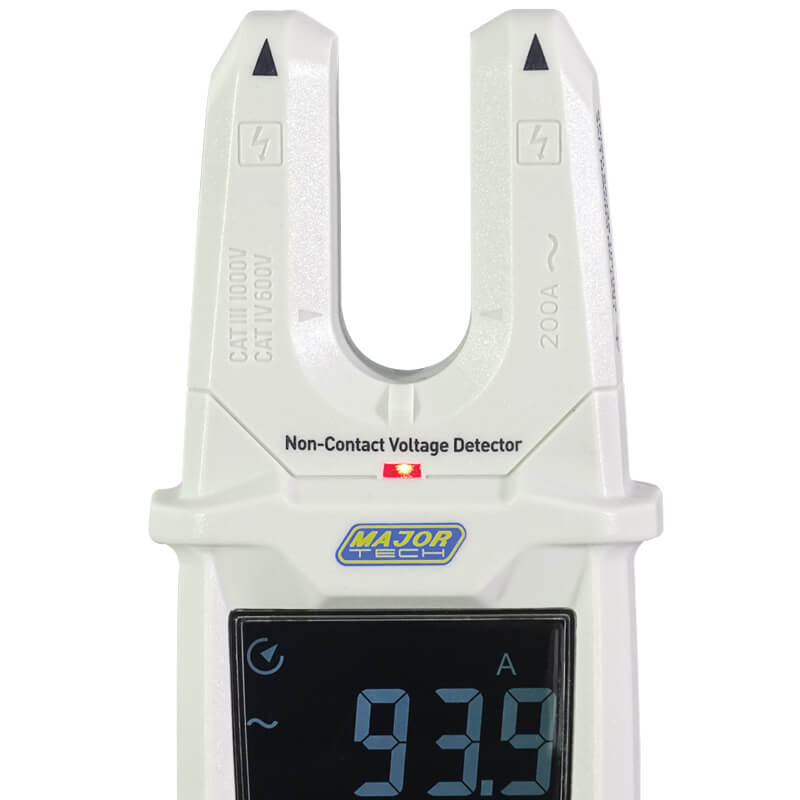

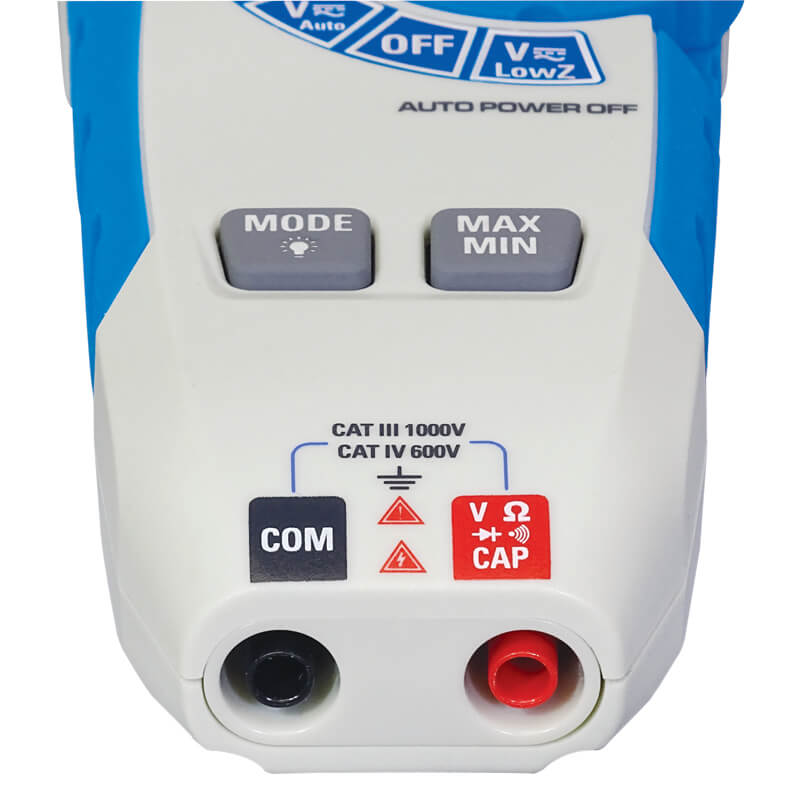

DetailsThe MT715 is a CAT IV 600V, 6000 count True RMS 200A AC digital clamp meter with indication on a large backlit LCD display, with a clamp jaw opening of Ø16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. The meter measures 1000V AC/DC, capacitance and resistance measurements, with a Min and Max mode. The LowZ range function has a low pass filter to eliminate errors caused by “Ghost” voltages and has features of Non-Contact Voltage detection, diode test function, a continuity buzzer and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1A – 200A | 100mA | ±(3.0% + 5 Digits) |
| DC Voltage | 1mV – 1000V | 1mV | ±(1.0% + 2 Digits) |
| AC Voltage | 1mV – 1000V | 1mV | ±(1.2% + 2 Digits) |
| Resistance | 0.1Ω – 60MΩ | 0.1Ω | ±(1.0% + 4 Digits) |
| Capacitance | 0.01nF – 4000µF | 0.01nF | ±(3.0% + 5 Digits) |
| True RMS Measurements | ACV, ACA | ||
| AC Bandwidth | 2KHz | ||
| Digital Display | 6000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 16mm Open Jaw | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double injection moulding | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 259g | ||
| Dimensions | 230 x 44 x 66mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
Supplier SKU: MT715
