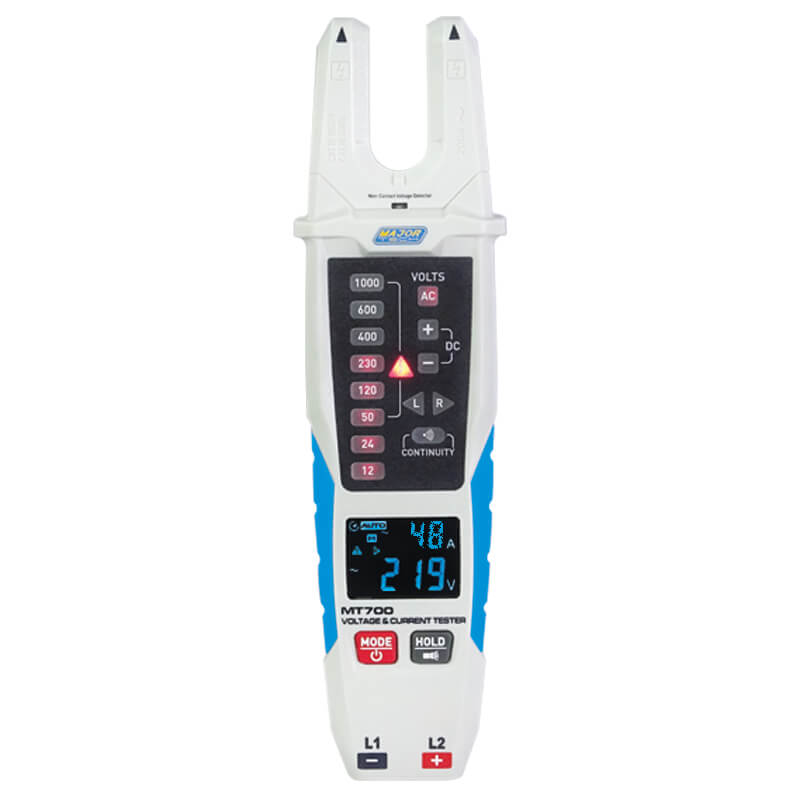

Major Tech 200A AC Clamp Meter | MT700

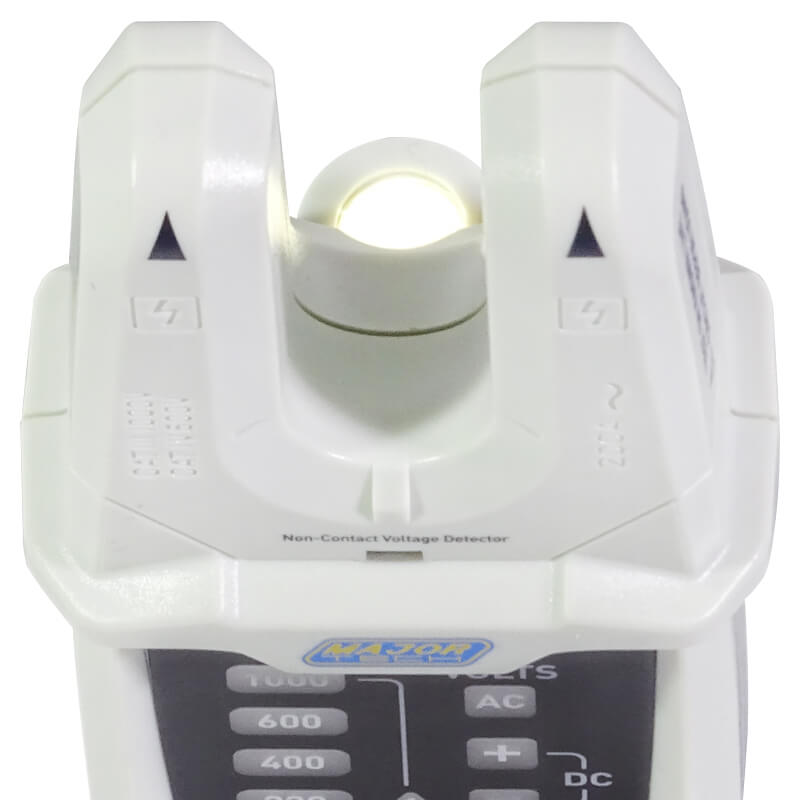

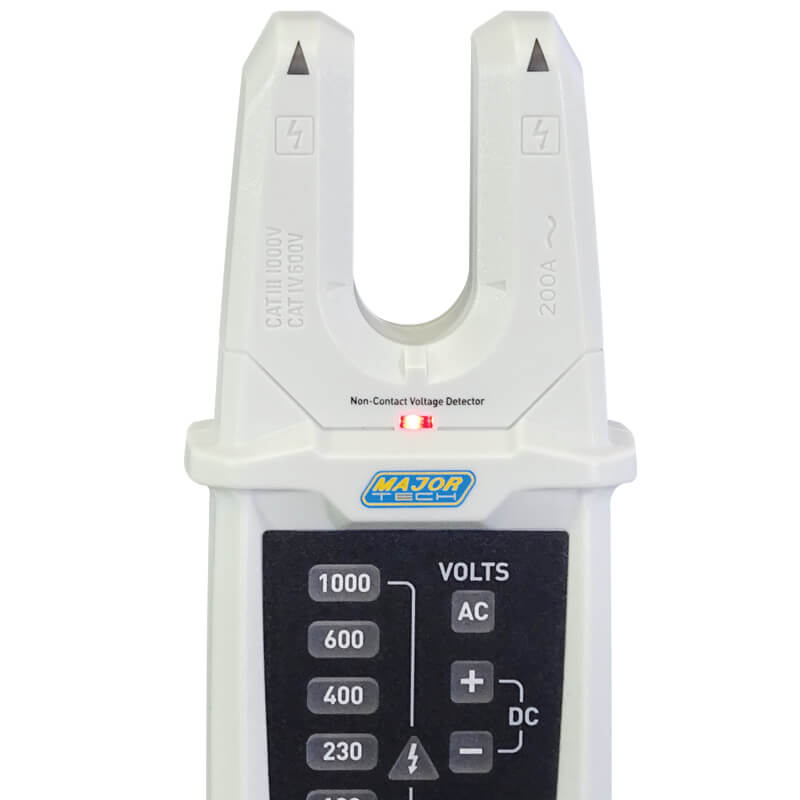

DetailsThe MT700 is a CAT IV 600V, 2000 count 200A AC digital clamp meter with indication on a large backlit negative LCD display, with a clamp jaw opening of Ø16mm. A superb feature for electricians is the ability to simultaneously measure current and voltage and view both readings on the LCD display. The MT700 measures AC and DC voltage up to 1000V and displays the reading on both the LED’s and LCD display. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. Added features include resistance measurements, Rotary Field Indication, continuity buzzer, data hold, built-in flashlight and Non-Contact Voltage detection. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0A – 200A | 1A | ±(3.5% + 5 Digits) |
| DC Voltage | 6V-1000V | 1V | ±(3.0% + 5 Digits) |
| AC Voltage | 6V-1000V | 1V | ±(3.0% + 5 Digits) |
| Resistance | 0Ω – 1999Ω | 1Ω | ±(5% + 10 Digits) |
| AC Bandwidth | 40Hz to 400Hz | ||
| Digital Display | 2000 | ||
| Non-Contact Voltage (NCV) | Yes | ||
| Overrange Indication | Yes | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Jaw Size | 16mm Open Jaw | ||
| Input Impedance | >10MΩ DCV & >10MΩ VAC | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Double moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 259g | ||
| Dimensions | 230 x 44 x 66mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
Supplier SKU: MT700
Brand
Major Tech
Title
Major Tech 200A AC Clamp Meter | MT700
