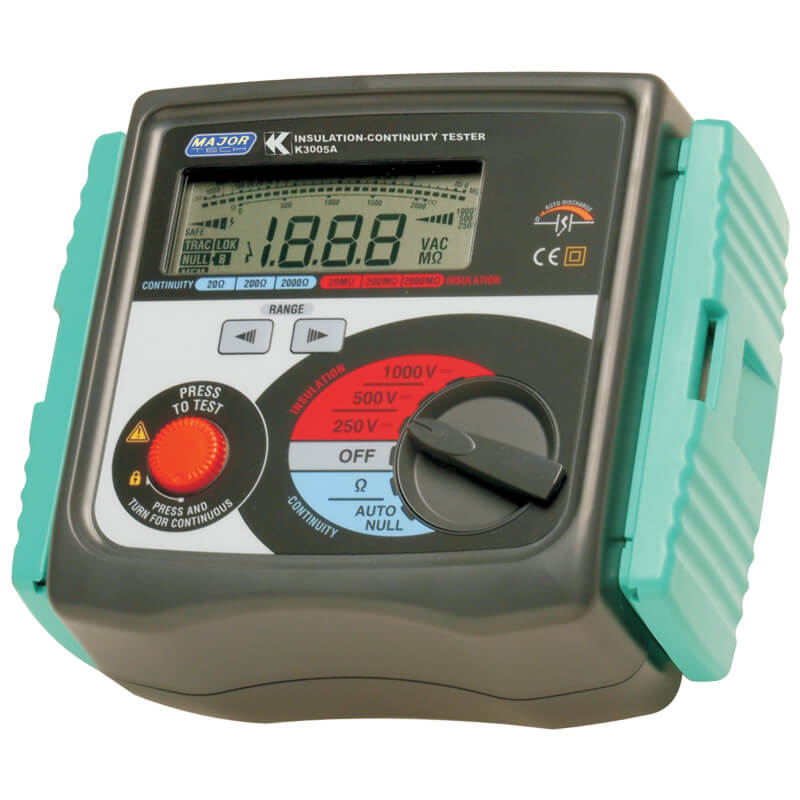

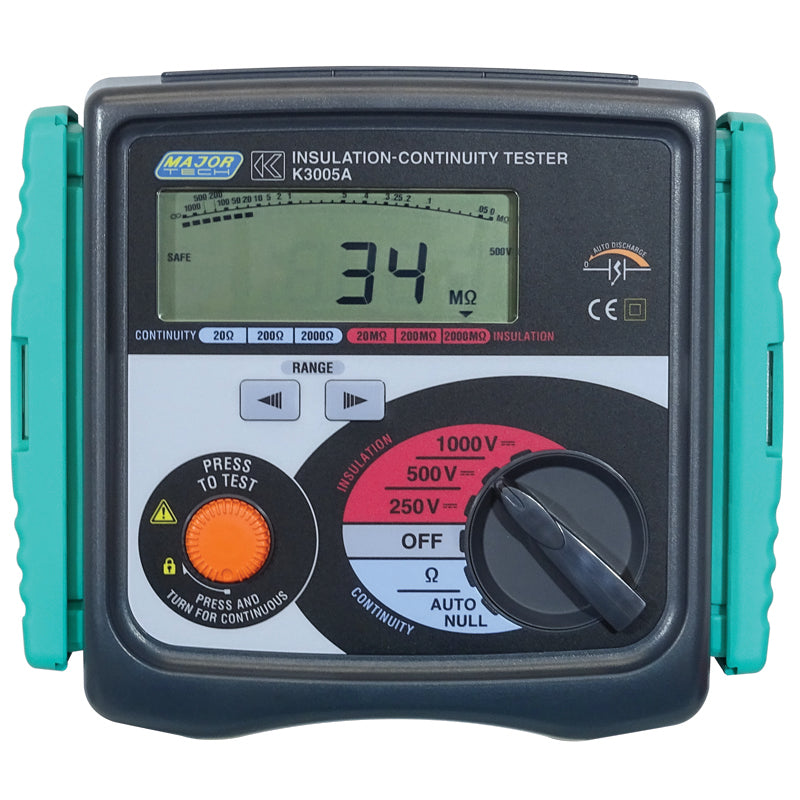

Major Tech 1000V Digital Insulation Tester | K3005
DetailsThe K3005 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Insulation resistance 250V | 250V | 20MΩ | ±(1.5% +5 Digits) |
| Insulation resistance 500V | 500V | 200MΩ | ±(1.5% + 5 Digits) |
| Insulation resistance 1000V | 1000V | 2000MΩ | ±(10% +3 Digits) |
| AC Voltage | 600V | 1V | ± (5.0% + 3 Digits) |
| Resistance | 2000Ω | 0.01Ω | ±(1.5% + 5 Digits) |
| Short Circuit Current | 1.5mA | ||
| Current measurement | 200mA | ||
| Continuity | Yes | ||
| Auto discharge | Yes | ||
| Digital Display | LCD Display | ||
| Bargraph | Yes | ||
| Over-range indication | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | | ||
| Power source | 6 x R6 | ||
| Enclosure | Moulded case | ||
| Low battery indication | Yes | ||
| Power source | 6F22 | ||
| Dimensions | 185 x 167 x 89mm | ||
| Weight | 900g | ||
| Safety Specs | IEC61010-1 CAT III 300V and CAT II 600V |
Supplier SKU: K3005
Brand
Major Tech
