Major Tech 1000V Digital Insulation Tester | K3007

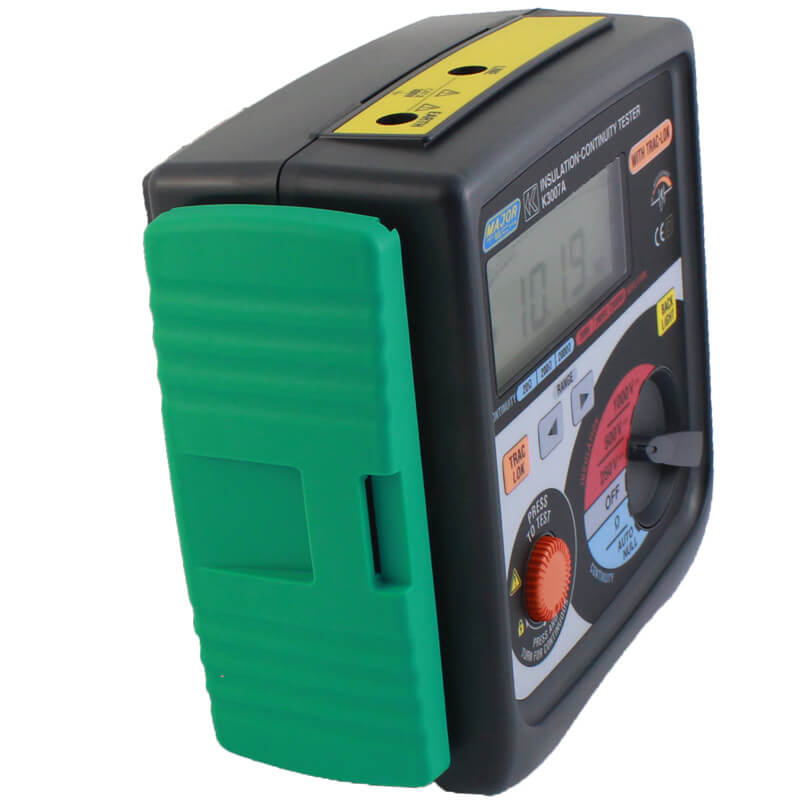

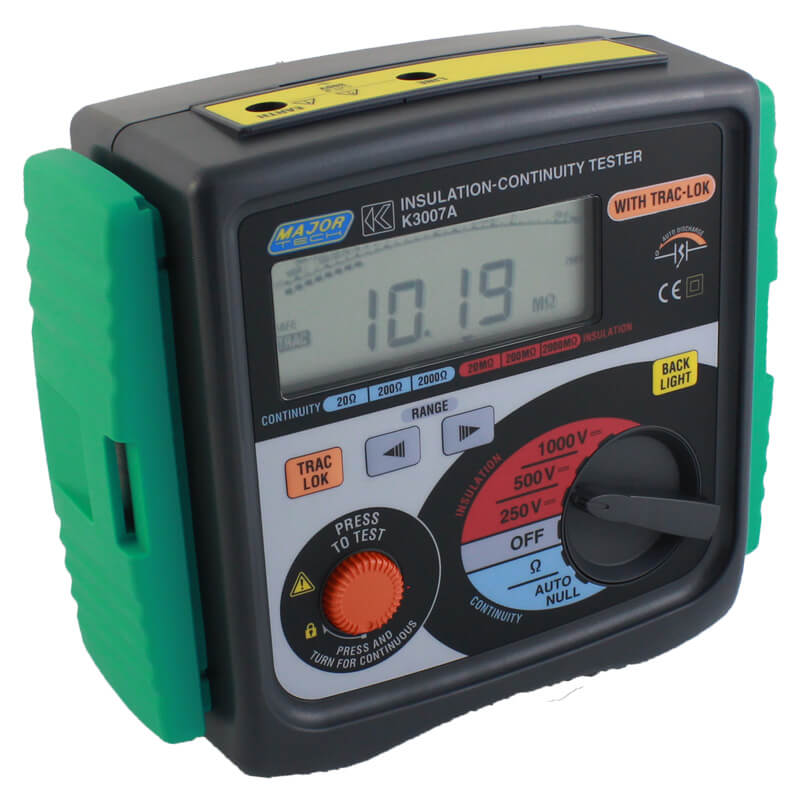

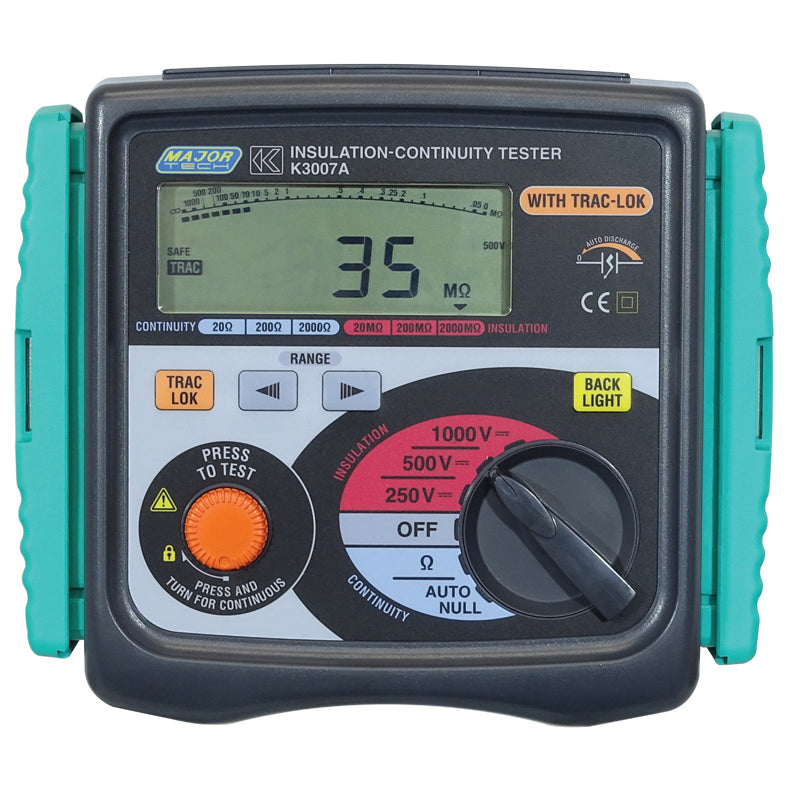

DetailsThe K3007 is equipped with Trac Lok Circuits that improve battery life considerably, thus saving the user money. The K3007 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas. This meter offers an intrisically safe model on request.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| Insulation resistance 250V | 250V | 0.50- 19.99MΩ | ± (1.5% + 5 Digits) |
| Insulation resistance 500V | 500V | 0 - 199.9MΩ | ± (1.5% + 5 Digits) |
| Insulation resistance 1000V | 1000V | 0 - 1999MΩ | ± (10% + 3 Digits) |
| AC voltage | 0V - 600V | 1V | ± (5.0% + 3 Digits) |
| Resistance | 20Ω - 2000Ω | 0.01Ω | ± (1.5%+ 5 Digits) |
| Short circuit current | 1.5mA | ||
| Overrange indication | Yes | ||
| Digital Display | LCD Display | ||
| Continuity | Yes | ||
| Trac loc | Yes | ||
| Auto discharge | Yes | ||
| Bargraph | Yes | ||
| Back Light | Yes | ||
| Enclosure | Moulded case IP54 | ||
| Low battery indication | Yes | ||
| Power source | 6 x R6 | ||
| Weight | 900g | ||
| Dimensions | 185 x 167 x 89mm | ||
| Safety Specs | IEC61010-1 CAT III 300V and CAT II 600V |
Supplier SKU: K3007
Brand
Major Tech
Title
Major Tech 1000V Digital Insulation Tester | K3007
