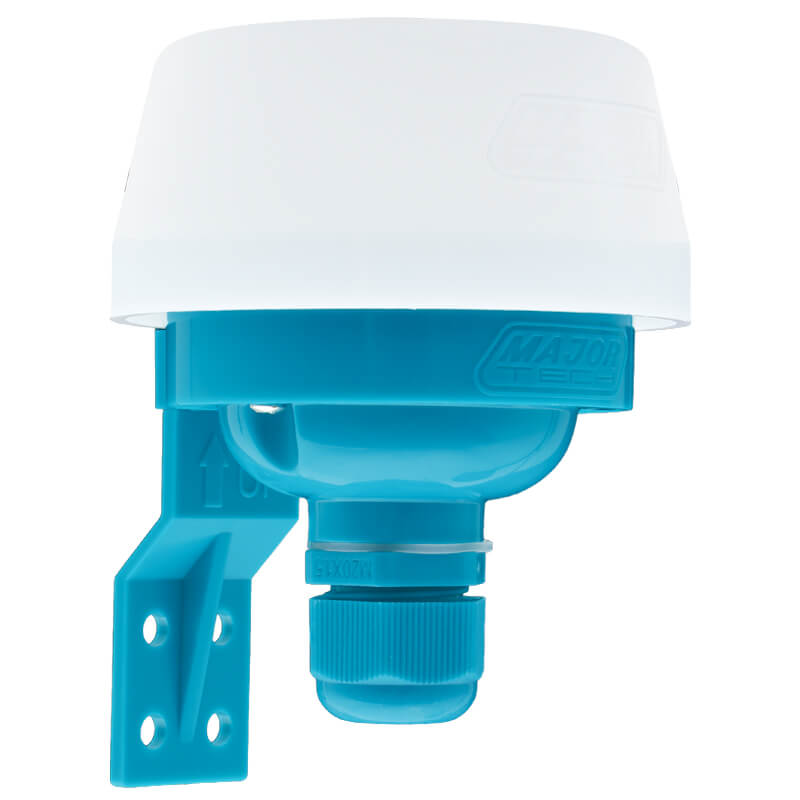

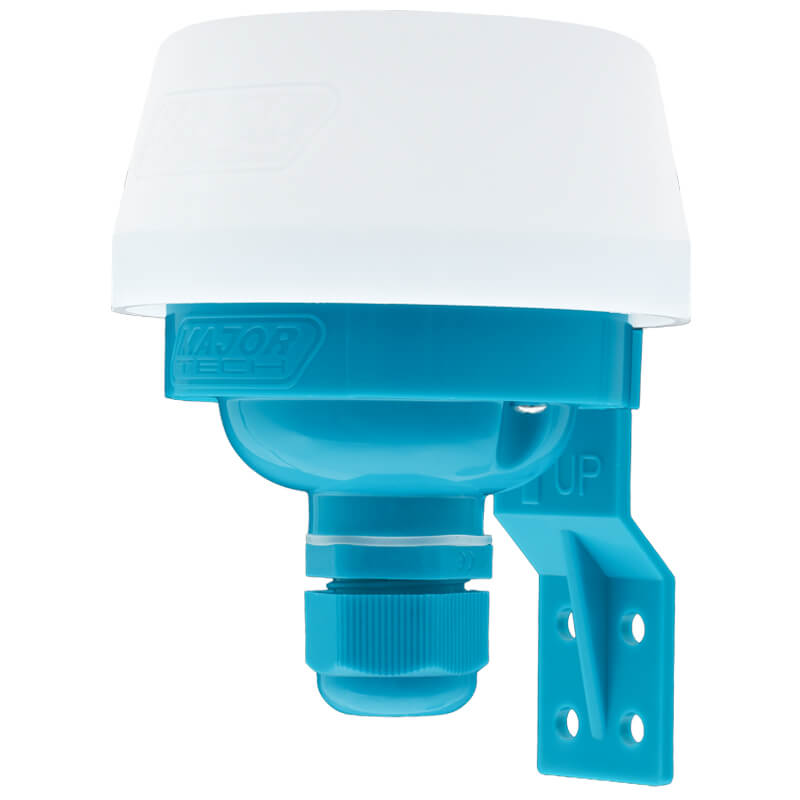

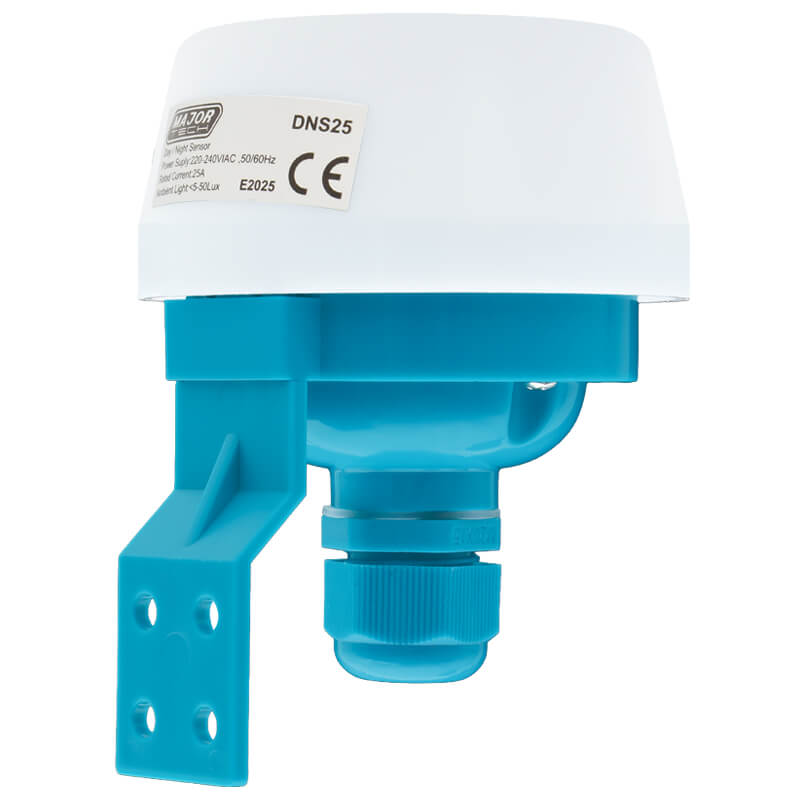

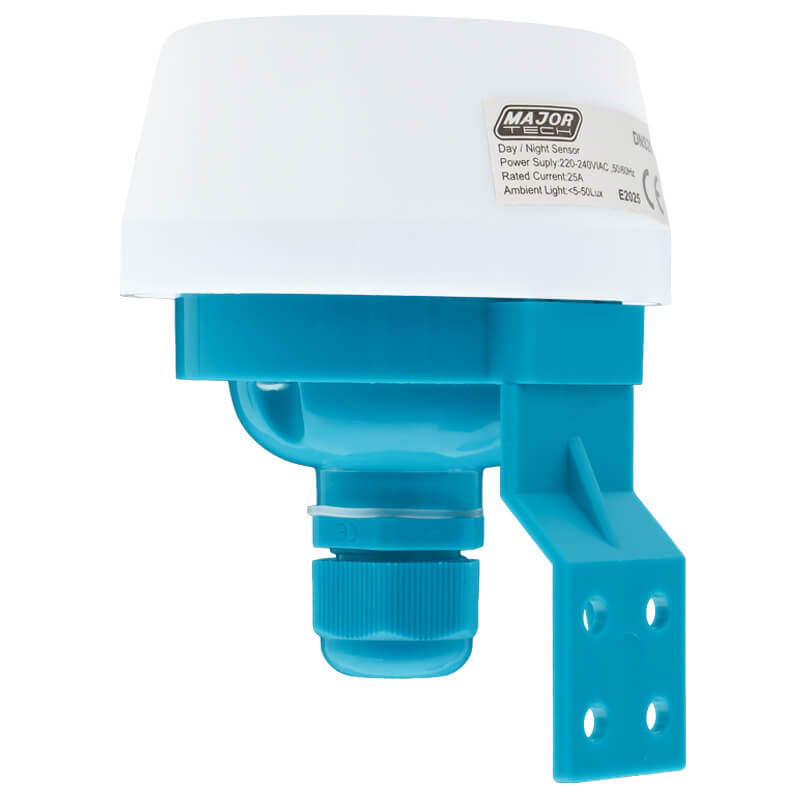

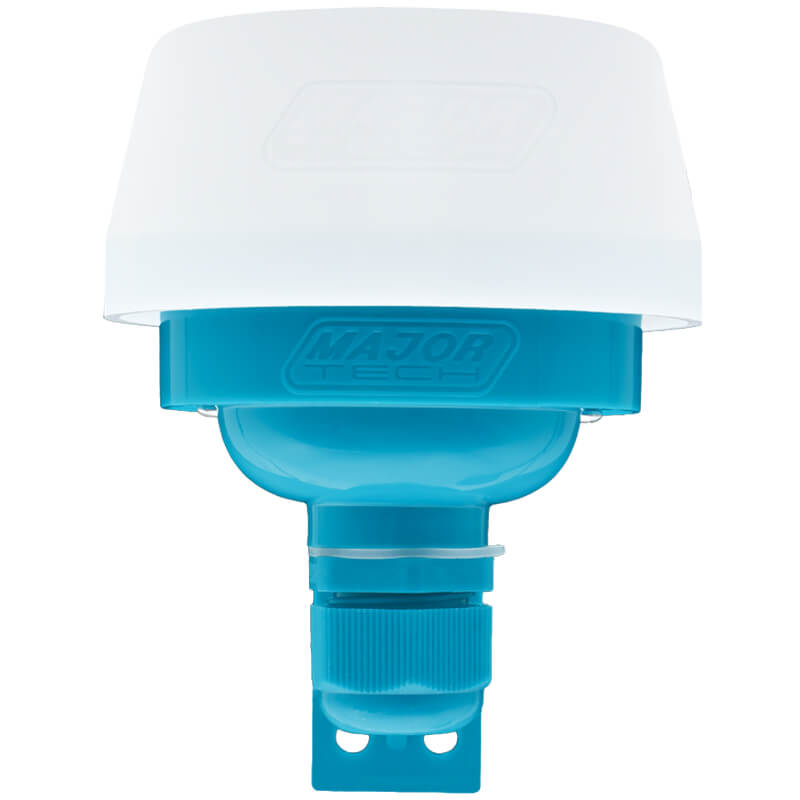

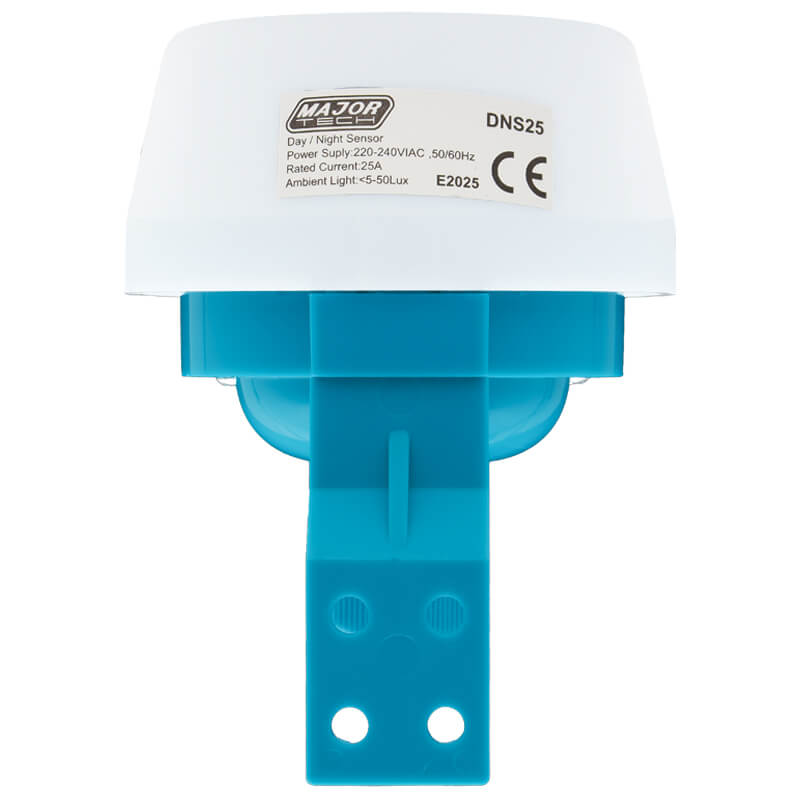

Major Tech 25A Day/Night Control Switch | DNS25

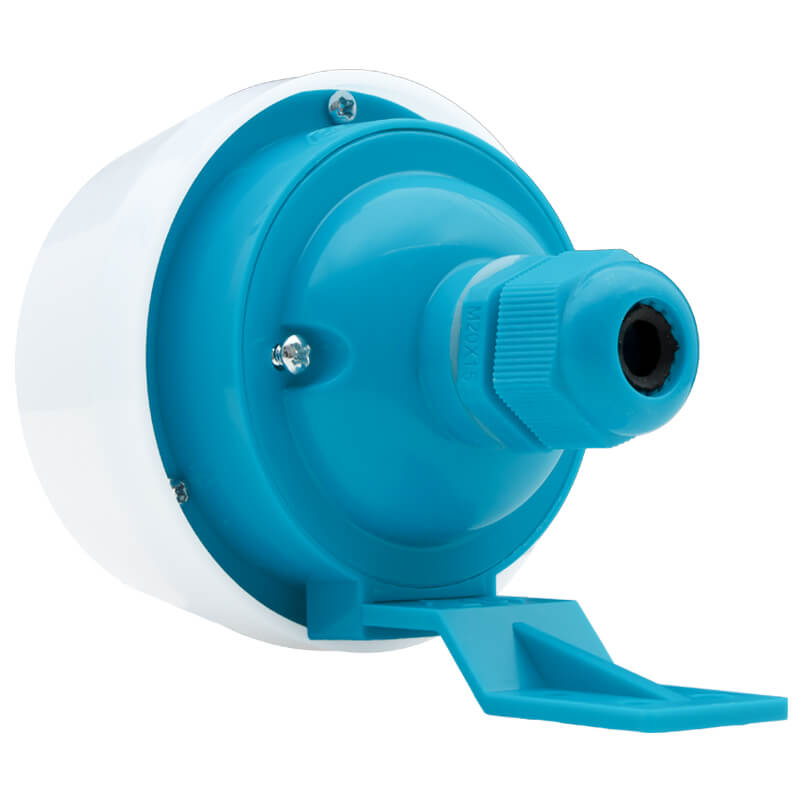

DetailsThe DNS25 Day/Night sensor automatically turns lighting on or off at dusk and dawn based on the ambient light levels detected by the sensor. It features adjustable lux settings and integrates easily into new or existing installations. Designed specifically for outdoor use, the DNS25 must be installed in an uncovered location to function accurately. Its IP54-rated housing provides protection against limited dust ingress and water splashes from any direction, making it suitable for direct exposure to rain (though not submersion), while the IP68-rated cable gland offers superior protection against dust and prolonged water immersion at the wiring point. Ideal for outdoor lighting, industrial, commercial, residential, and security applications, it enhances energy efficiency and safety by activating lights only when needed. Simple yet effective, the 25A rated current of the DNS25 adds to its convenience and sustainability. Installation must be done by a qualified electrician.
Application:
- Entrances
- Gates
- Offices
- Warehouses
Specifications
Specifications:| Function | Range |
| Ambient Light | 5 to 50 Lux (Adjustable) |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Current | 25A |
| Mounting | Walls and Poles |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP54 (Outdoor installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: DNS25
