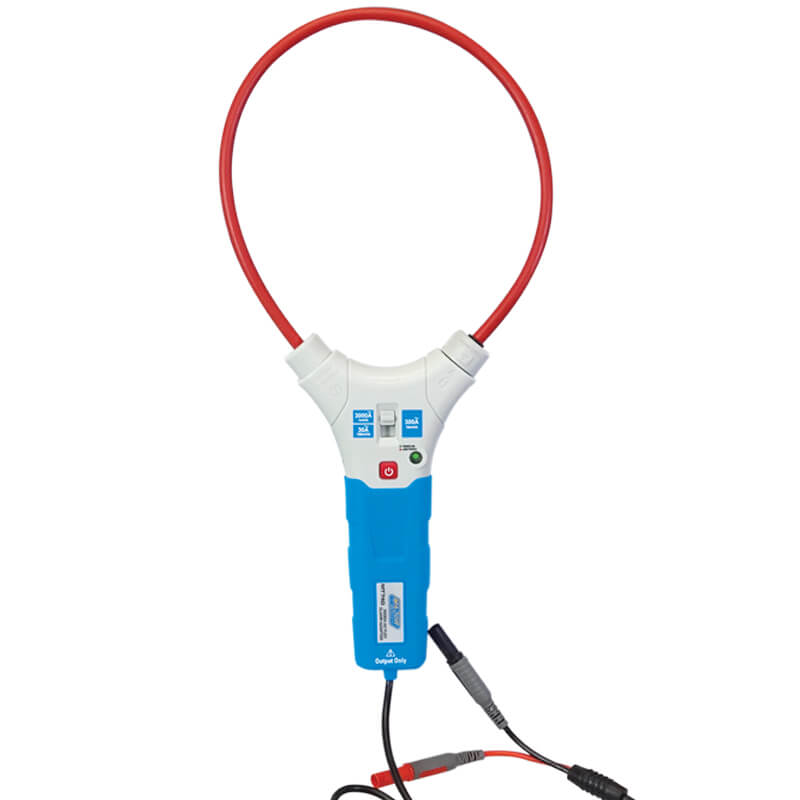

Major Tech 3000A True RMS AC Clamp Adaptor | MT740
DetailsThe MT740 is a 3000A True RMS AC Flexible Clamp adaptor that supplies voltage output to universal voltage meters. With a 7.5mm coil diameter to accommodate ease of measurement in a tight space and is ergonomically designed for one handed operation. The MT740 Flex Clamp Adaptor is CAT IV rated 600V and CAT III rated for 1000V.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.1A ā 3000A | 0.1A | Ā±(3.0% +3mV) |
| AC Bandwidth | 50Hz to 60Hz | ||
| Jaw Size | 475mm (18?) | ||
| Enclosure | Moulded case | ||
| Low Battery Indication | Yes | ||
| Batteries | 2 x AAA | ||
| Weight | 210g | ||
| Dimensions | 180mm x 106mm x 28mm | ||
| Safety Specs | IEC61010-1 CAT IV 600V |
Supplier SKU: MT740
Brand
Major Tech
Title
Major Tech 3000A True RMS AC Clamp Adaptor | MT740
