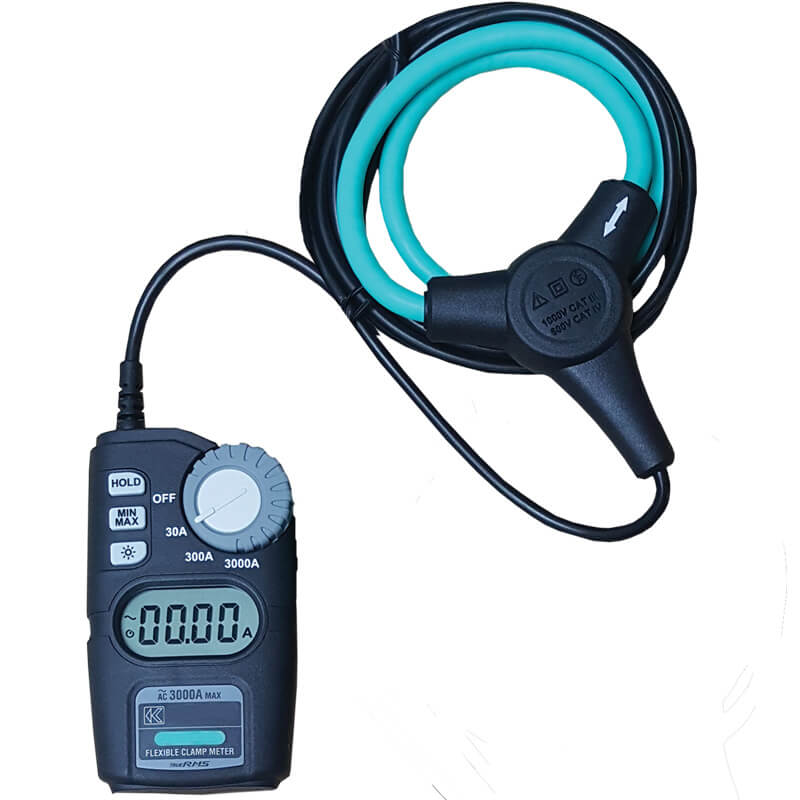

Major Tech Flexible AC Digital Clamp Meter | K2210R
DetailsThe K2210R 3000A AC Flexible Current True RMS Clamp Meter is ergonomically designed for ease of use in confined spaces. The 55mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The unit features a large backlit LCD display making it easier to read measurements in dimly lit areas.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| AC Current | 0.01A - 3000A | 0.01A | ±(3.0% +5 Digits) |
| Crest Factor | Full Scale CF Half Scale CF Effective input crest values are √2 times of the max values of each range. | ||
| Conductor Size | Ø150mm (Max) | ||
| Influence of conductor size | ± 3.0% (Max) | ||
| Overload Protection | 5000A AC for 10 Seconds | ||
| Batteries | 2 x AAA | ||
| Size | 120 x 70 x 26mm | ||
| Weight | 470g | ||
| Safety Specs | CAT III 1000V and CAT IV 600V |
Supplier SKU: K2210R
Brand
Major Tech
Title
Major Tech Flexible AC Digital Clamp Meter | K2210R
