Major Tech 360° Mini PIR Motion Sensor - IP65 | PIR31

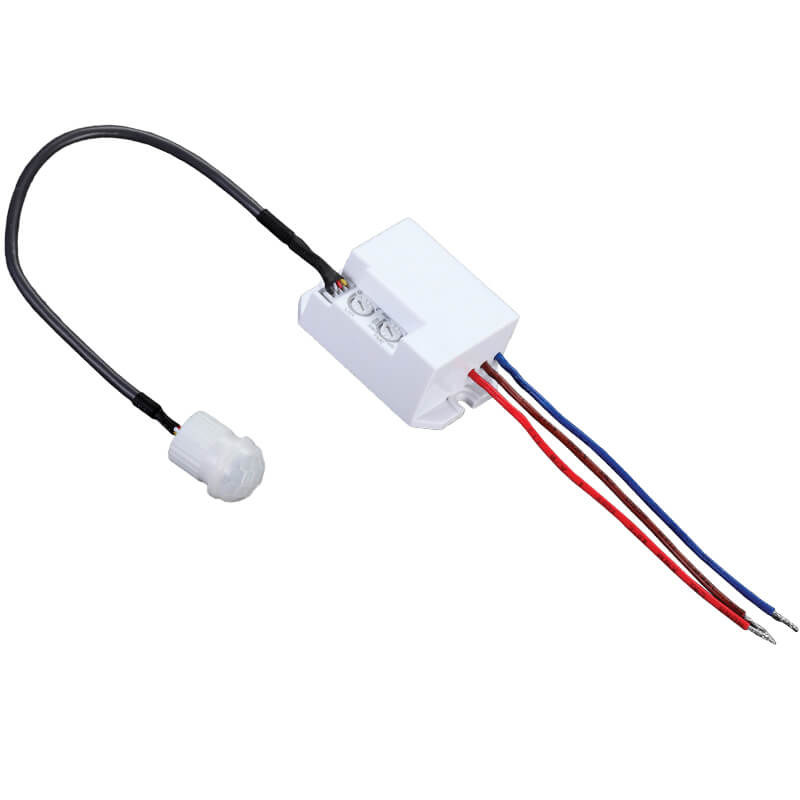

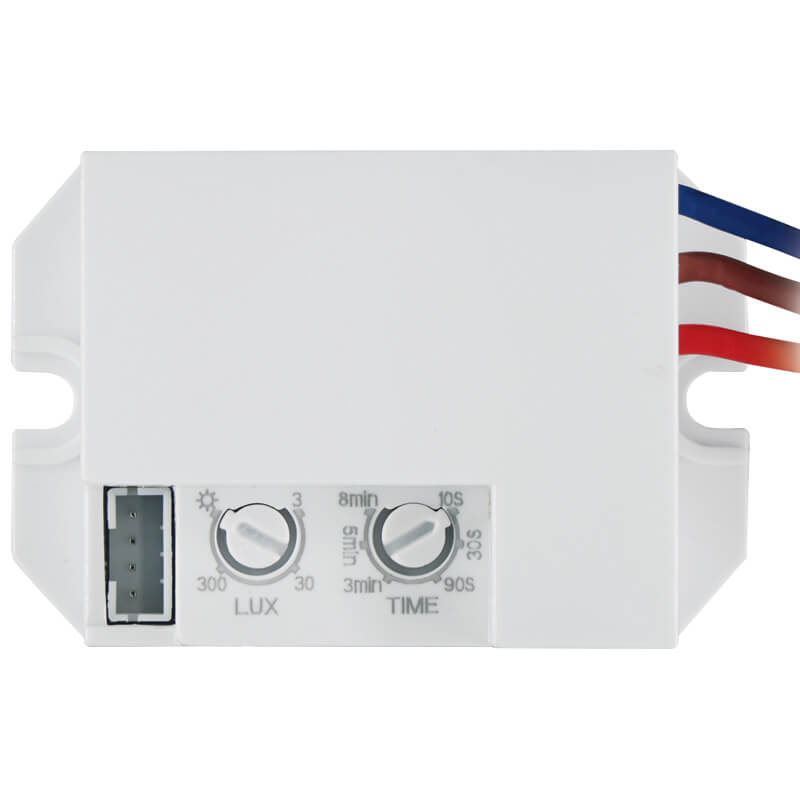

DetailsThe PIR31 automatically turns on lights or any electrical device within the sensor's rated load when motion and body heat are detected. It has a 360° detection range when mounted on the ceiling and 120° when wall mounted, with adjustable settings for time and Lux level. The sensor has an IP65 rating, making it suitable for outdoor or damp environments, while the controller has an IP20 rating, intended for indoor use. The controller can be easily concealed in ceilings or walls, with only the sensor part visible, and is easily integrated into new or existing installations. Installation must be performed by a qualified electrician.
Application:
Ideal for domestic applications such as cabinets, door entrances, hallways, stairways, attics and basements.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
Specifications
Specifications:| Function | Range |

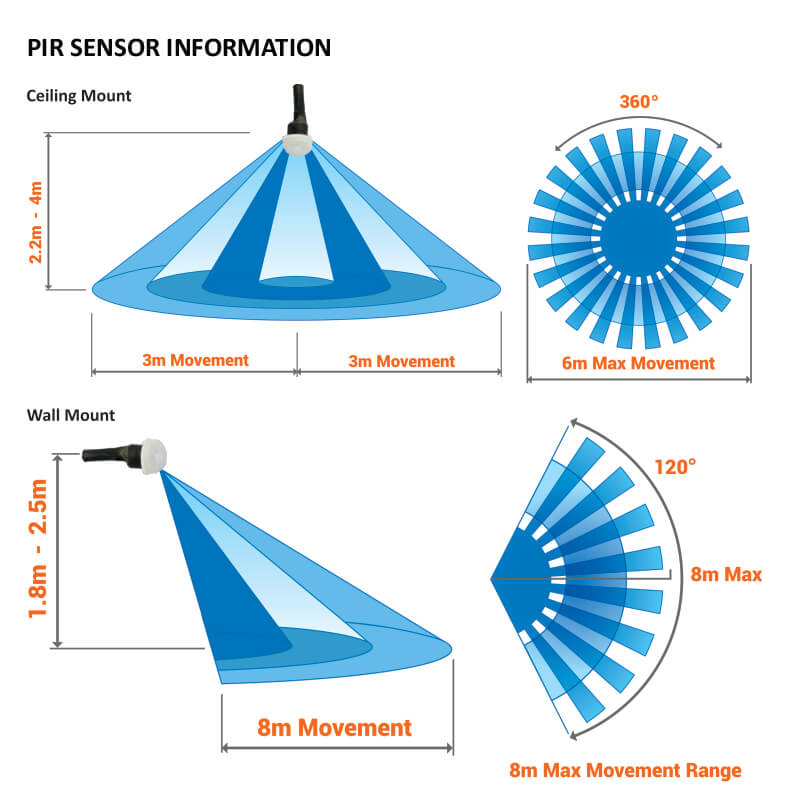

| Detection Area Ceiling Installation Wall Installation |
360° 120° |
| Detection Distance Ceiling Installation Wall Installation |
6m Max 8m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light |
|
| Installation Height Ceiling Installation Wall Installation |
2.2m - 4m 1.8m - 2.5m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
800W 400W |
| Time Delay | 10 sec to 8 min |
| Hole Cut Out Size | Ø12.5mm |
| Power Consumption |
|
| Mounting | Ceiling & Wall Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating Sensor Controller |
IP65 (Outdoor & Indoor Installation) IP20 (Indoor installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: PIR31
