Major Tech 360° PIR Motion Sensor - IP20 | PIR36
DetailsThe PIR36 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and adjustable settings, easily integrated into new or existing installations. With an IP20 rating, the sensor is intended for indoor installations. Installation must be done by a qualified electrician.
Application:
- Major Tech Infrared Motion Sensor is ideal for domestic applications such as cabinets, door entrances, hallways, stairways, attics and basements. Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives.
Specifications
Specifications:| Function | Range |
| Detection Area | 360° |
| Detection Distance | 8m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light |
|
| Installation Height | 2.2m - 4m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
2000W 1000W |

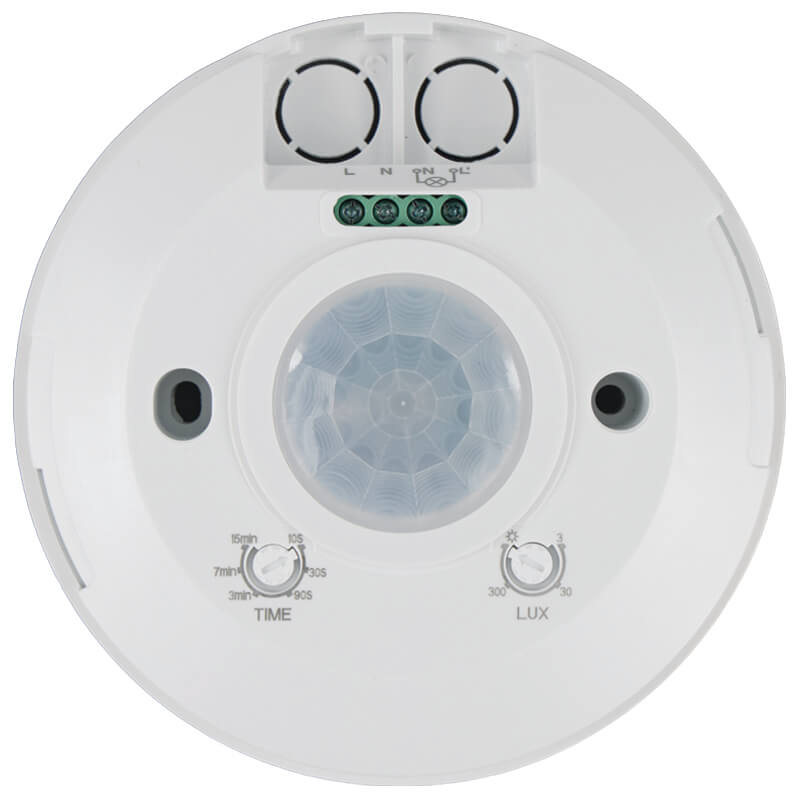

| Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
| Power Consumption |
|
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP20 (Indoor installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: PIR36
Brand
Major Tech
Title
Major Tech 360° PIR Motion Sensor - IP20 | PIR36
