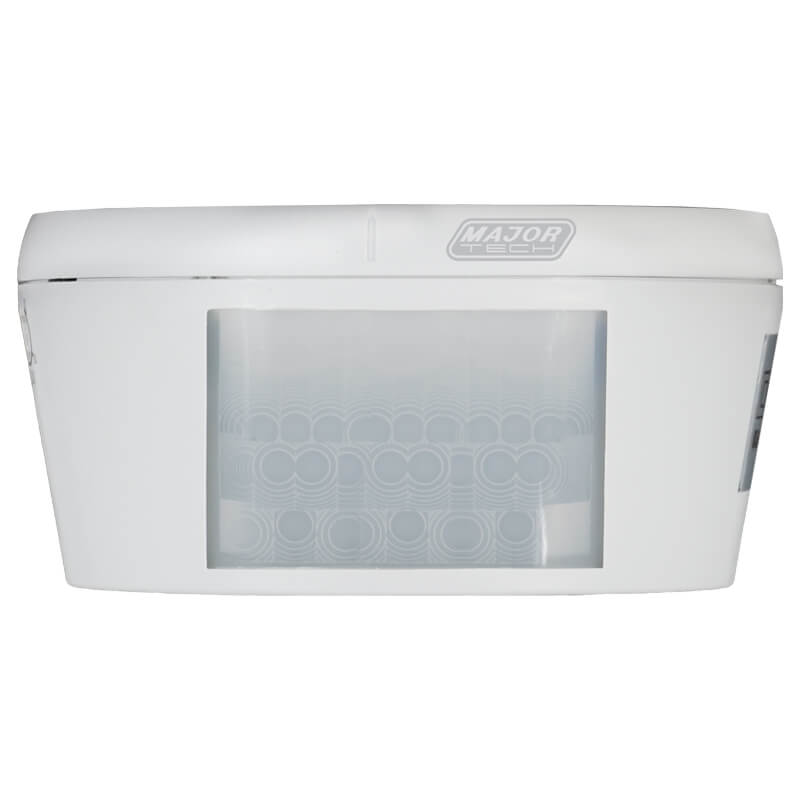

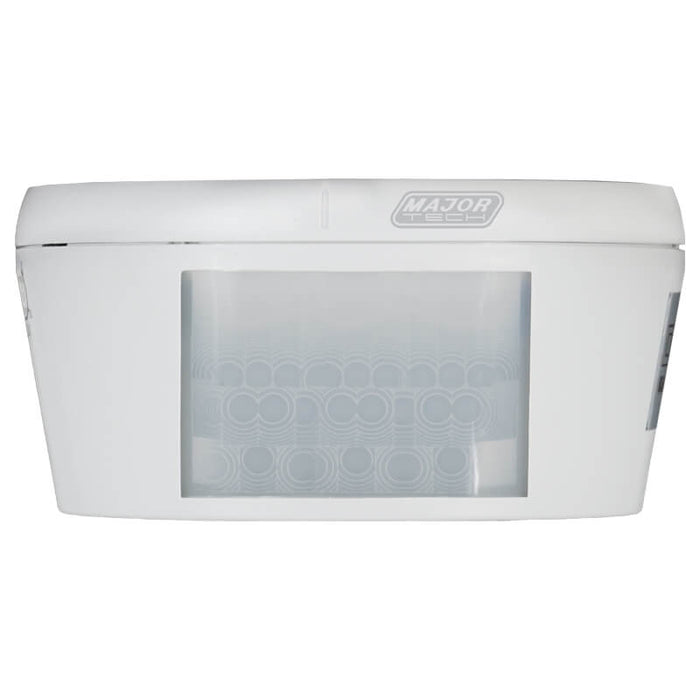

Major Tech 360° PIR Motion Sensor - IP20 | PIR46
DetailsThe PIR46 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and an installation height of up to 4m, with adjustable settings for Lux and Time. Specially designed for long passages or large rooms with a detection range of 30m in length and a width detection range of 10m, easily integrated into new or existing setups. With an IP20 rating, the sensor is intended for inside installations. Installation must be done by a qualified professional.
Application:
- Major Tech PIR Sensor is ideal for homes, offices and hotels
- The main applications include corridors, pathways, bathrooms and lobbies
Specifications
Specifications:| Function | Range |
| Detection Area | 360° |
| Detection Distance | 10m x 30m Max |
| Detection Motion Speed | 0.6 to 1.5m/s |
| Ambient Light |
|
| Installation Height | 2.2m – 4m |
| Voltage | 220 to 240V AC |
| Power Frequency | 50/60Hz |
| Rated Load Incandescent LED / CFL |
2000W 1000W |
| Time Delay | 10 sec (±3 sec) to 15 min (±2 min) |
| Power Consumption |
|
| Mounting | Ceiling Mount |
| Working Temperature | -20°C to 40°C |
| Working Humidity |
|
| IP Rating | IP20 (Indoor Installation) |
| Standards | IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1 |
Supplier SKU: PIR46
Brand
Major Tech
Title
Major Tech 360° PIR Motion Sensor - IP20 | PIR46
