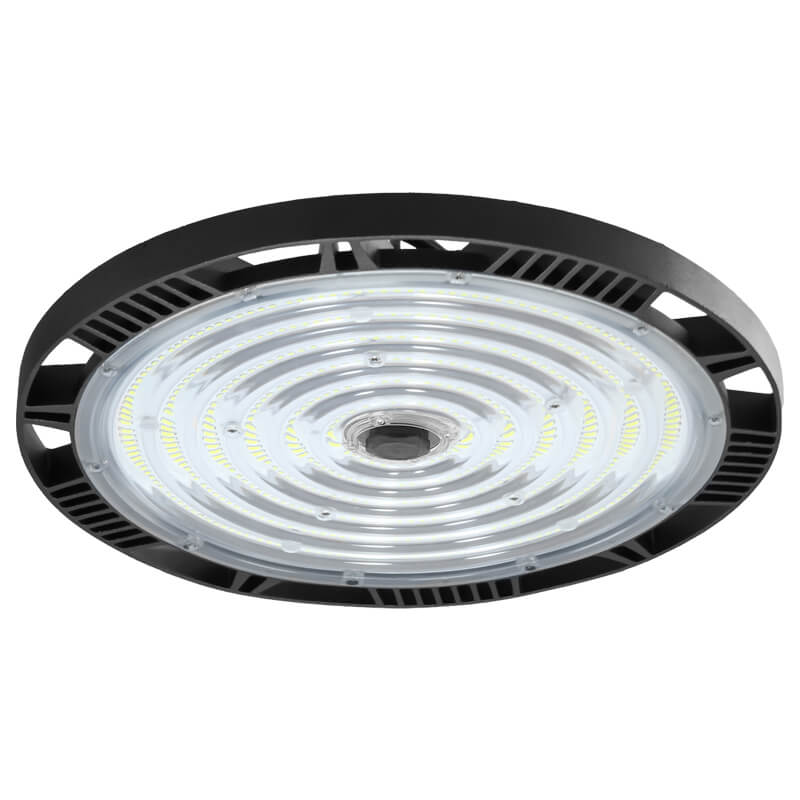

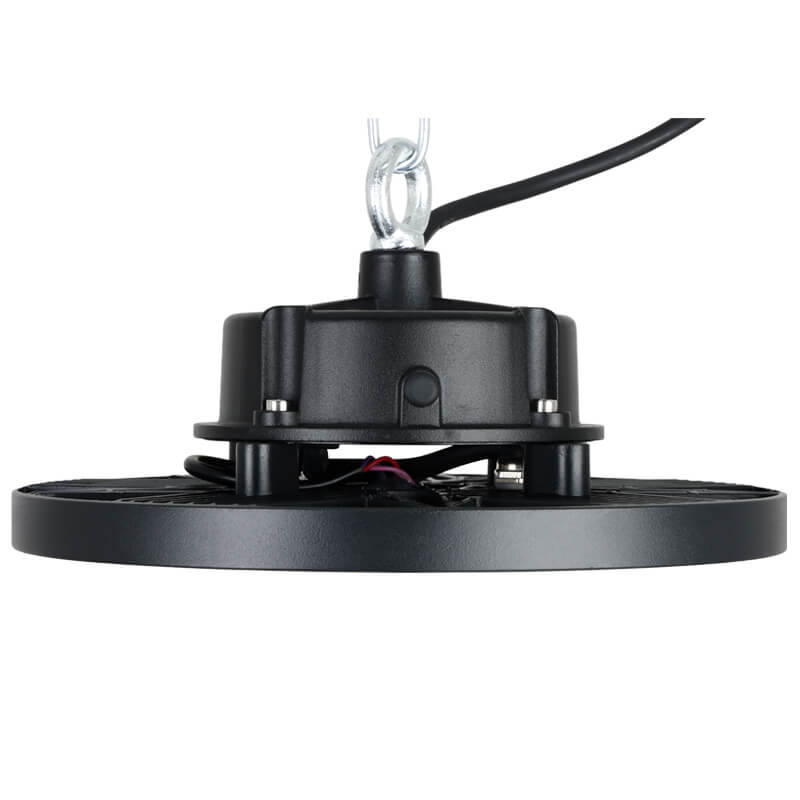

Major Tech 38 000lm / 200W High Lumen LED High Bay | HHB20NW
DetailsThe HHB20NW LED High Bay is part of the HHB Series is a range of high-performance, professional-grade UFO LED High Bays engineered for demanding industrial and commercial environments. Featuring a modern design with an isolated driver and constructed from high-quality materials, these luminaires deliver outstanding efficiency and reliability. Each model in the range is equipped with high-intensity SMD 3030 LEDs, delivering an exceptional luminous efficacy of 190lm/W. With luminous outputs of up to 57 000 lumens and a consistent 5000K neutral white colour temperature, the HHB Series provides bright, clear illumination with a wide 90° beam angle for uniform light distribution across large areas. Built for durability, the HHB Series features an IP65-rated enclosure for protection against dust and water ingress, making it ideal for warehouses, factories, workshops, and other harsh environments. The fixtures support a wide input voltage range of 85 to 277V AC and include a secure suspension hook for safe and easy ceiling installation. Designed for long-term performance, the HHB Series is supported by a 5-year warranty, offering both reliability and peace of mind.
Specifications
Specifications:| Function | Range |
| LED Power | 200W |
| Lumen Output | 38 000lm |
| Lumen Efficiency | 190lm/W |
| LED Chip Type | SMD3030 |
| Colour Temperature | 5000K – Neutral White |
| Beam Angle | 90° |
| Rated Voltage | 220 – 240V |
| Voltage Range | 85 – 277V |
| Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Driver Type | DOB (Driver on Board) |
| CRI | >70 |
| Rated Life | 50 000 Hours |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Material | Body: Die-Cast Aluminium Lens: PC |
| Temperature & Humidity Working Storage |
-25°C to 50°C / ≤95%R.H. d -40°C to 80°C / ≤95%R.H. |
| Mounting Method | Suspension Hook and 30cm Chain (Included) |
| Integrated Cable Length | Africa: 50cm Australasia: 150cm & Plug Top |
| Surge Protection | 6kV |
| Installation Height | 12m – 15m |
| Dimensions | Ø302 x 34mm |
| Weight | Africa: 1.35kg Australasia: 1.85kg |
Supplier SKU: HHB20NW
Brand
Major Tech
Title
Major Tech 38 000lm / 200W High Lumen LED High Bay | HHB20NW
