Major Tech 5kV High Voltage Insulation Tester | MT570

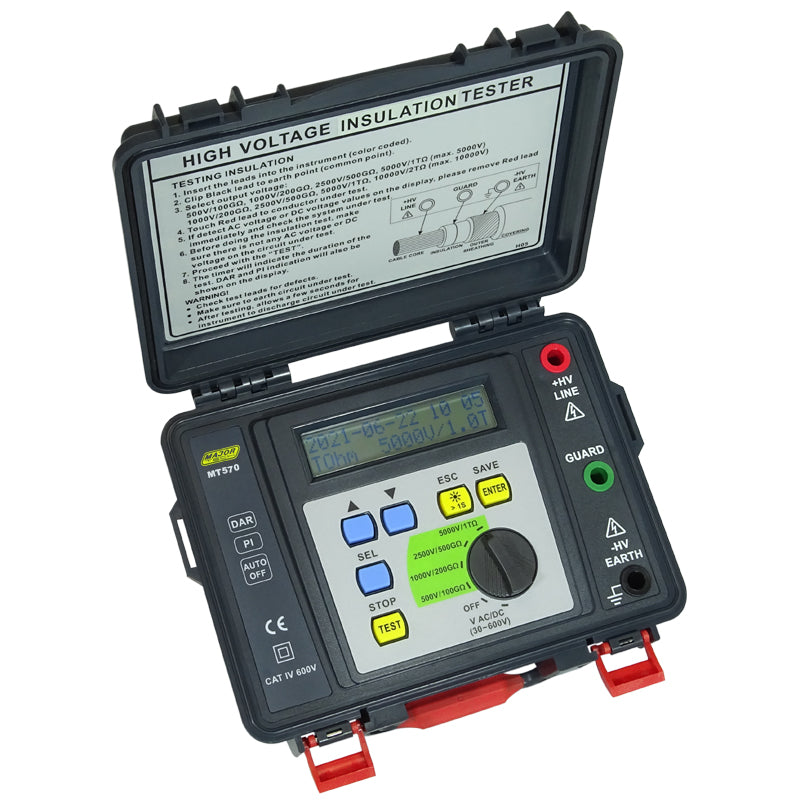

DetailsThe MT570 is a 5kV High Voltage Insulation Tester with measurements from 500V DC to 5000V DC, and will automatically discharge the circuit after the test has been completed. Using the rotary selector switch, 4 preset ranges of 500V, 1000V, 2500V and 5000V can be selected, with an insulation resistance up to 1TΩ. The microprocessor controlled MT570 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electric Circuits and Surge Arrestors as the short circuit current output is up to 5mA. 200 test measurement results can be saved in the memory of the meter and recalled onto the LCD display. The large intelligent LCD display consists of 2 lines x 16 characters, indicating the reading of insulation, measuring time, output voltage and output current. The MT570 can measure AC and DC voltage up to 600V and is housed in a robust case ideal for extended field use, powered by 8 pieces “C” 1.5V batteries.
Specifications
Specifications:| Function | Range | Resolution | Accuracy |
| DC voltage | 1V – 600V | 1V | ± (2% + 3 Digits) |
| AC voltage | 1V – 600V | 1V | ± (2% + 3 Digits) |
| Insulation resistance 500V | 500V-100G? | 0.1G? | ± (5% + 5 Digits) |
| Insulation resistance 1000V | 1000V-200G? | 0.1G? | ± (5% + 5 Digits) |
| Insulation resistance 2500V | 2500V-500G? | 0.1G? | ± (5% + 5 Digits) |
| Insulation resistance 5000V | 5000V-1T? | 1G? | ± (5% + 5 Digits) |
| Short circuit current | 5mA | ||
| Polarization index | Yes | ||
| Dielectric absorption ratio | Yes | ||
| Auto discharge | Yes | ||
| Data logging | Yes | ||
| Data Hold | Yes | ||
| Back Light | Yes | ||
| Enclosure | Robust moulded case | ||
| Low battery indication | Yes | ||
| Power source | 8 x LR14, 1 x CR2032 | ||
| Weight | 2070g | ||
| Dimensions | 250 x 190 x 127mm | ||
| Safety Specs | IEC61010-1 CatIV 600V |
