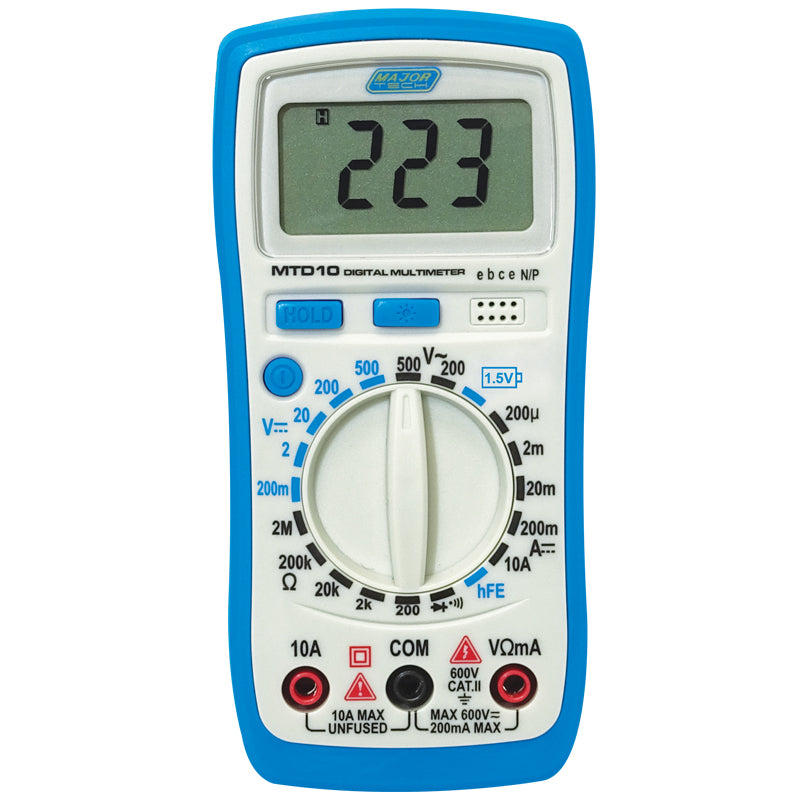

Major Tech Compact Digital Multimeter | MTD10

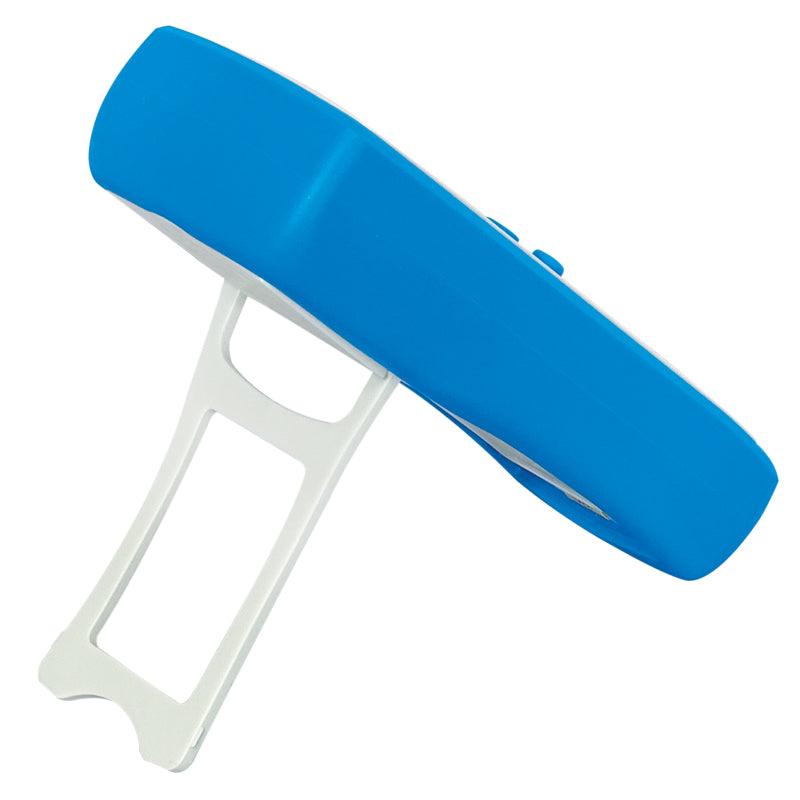

DetailsThe MTD10 is a compact 2000 count DIY digital multimeter and is designed as an ideal meter for general purpose use by electronic technicians, alarm installers, students, hobbyist and homeowners. The MTD10 measures AC and DC voltage to 500V, resistance to 2M Ohms, DC current to 10A, has a diode test function and continuity buzzer. The meter also offers the added convenience of a 1.5V battery test under load, a transistor test range, backlit display, data hold and a tilt stand. The meter meets the International standard IEC 61010-1 CAT II 600V / CAT III 300V. Supplied standard with a rubber holster, test leads and a 9V battery.
Specifications
Specifications:| Function | Range |
| DC Voltage | 1V - 500V |
| AC Voltage | 1V - 500V |
| DC Current | 100mA - 10A |
| Resistance | 0.1Ω - 2MΩ |
| Continuity | Yes |
| Built-in buzzer | Yes |
| Diode test | Yes |
| Battery test | Yes |
| Transistor Test PNP transistors | Yes |
| AC Bandwidth | 40Hz to 400Hz |
| Digital Display | LCD 2000 count |
| Overrange indication | Yes |
| Input impedance | >10MΩ |
| Data Hold | Yes |
| Back Light | Yes |
| Back Light | Yes |
| Power source | 1 x 6F22 |
| Weight | 170g (including battery) |
| Dimensions | 140 x 70.6 x 31mm |
| Safety Specs | CAT II 600V |
Supplier SKU: MTD10
Brand
Major Tech
Title
Major Tech Compact Digital Multimeter | MTD10
